Magnitude |
3.4 |
| Date & Time (UTC) | 2011-10-01 06:25:47.5 |
| Date & Time (Local) | 1390/7/9 09:55:47.5 |
| Location | Lat:35.06 Lon: 59.1 |
| Region | Khorasan(center) Province, 26 km South-West of Torbat-e heydariyeh |
Nearest Cities |
|
| 13 km South of Shadmehr, Khorasan(center) Province | |
| 19 km South of Booriabad, Khorasan(center) Province | |
| 24 km North East of Mahneh, Khorasan(center) Province | |
| 26 km South West of Torbat-e heydariyeh, Khorasan(center) Province | |
| 30 km North East of Feizabad, Khorasan(center) Province | |
| Depth | 14 km |
| Agency | |

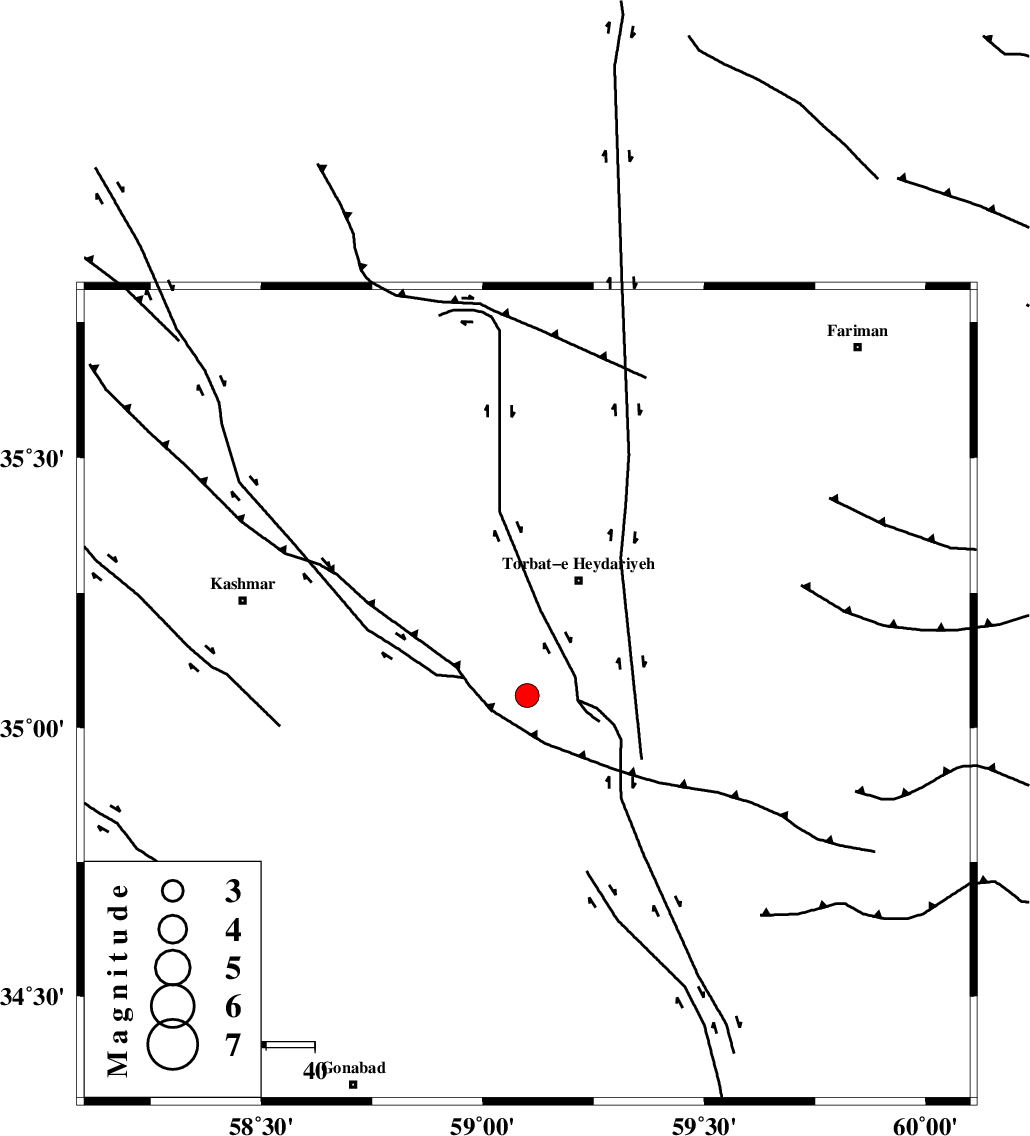

Faults within 150 km: |
|
| JANGAL_F (Length: 111 km) , Distance to epicenter: 5 km | |
| DUGHABAD_F (Length: 62 km) , Distance to epicenter: 7 km | |
| KASHMAR_F (Length: 91 km) , Distance to epicenter: 14 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | 2.7 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 80337 | IIEES | SHRT | N | 300.5 | 0.26 | 2011-10-01 06:26:44 | 2011-10-01 06:51:00 | n |
| 80338 | IIEES | SHRT | E | 508.5 | 0.35 | 2011-10-01 06:26:50 | 2011-10-01 06:51:00 | n |
| 80339 | IIEES | TABS | E | 186.1 | 0.4 | 2011-10-01 06:27:02 | 2011-10-01 06:51:00 | n |
| 80340 | IIEES | TABS | N | 420.7 | 0.57 | 2011-10-01 06:27:02 | 2011-10-01 06:51:00 | n |
| 80341 | IIEES | KRBR | E | 19.8 | 0.49 | 2011-10-01 06:28:33 | 2011-10-01 06:51:00 | n |
| 80342 | IIEES | KRBR | N | 16.3 | 0.45 | 2011-10-01 06:28:40 | 2011-10-01 06:51:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SHRT | Z | Pg | E | 2011-10-01 06:26:18 | -0.17 | y | 191 | 145 | |
| IIEES | SHRT | N | Sg | E | 2011-10-01 06:26:41 | 0.07 | y | 191 | 145 | |
| IIEES | TABS | Z | Pn | E | 2011-10-01 06:26:25 | 0.33 | y | 240 | 230 | |
| IIEES | TABS | N | Sg | E | 2011-10-01 06:26:55 | -0.11 | y | 240 | 230 | |
| IIEES | SHRO | Z | Pn | E | 2011-10-01 06:26:32 | -0.23 | y | 299 | 292 | |
| IIEES | BJRD | Z | Pn | E | 2011-10-01 06:26:36 | -0.07 | y | 330 | 333 | |
| IIEES | MRVT | Z | Pn | E | 2011-10-01 06:26:44 | 0.2 | y | 395 | 318 | |
| IIEES | KRBR | Z | Pn | E | 2011-10-01 06:27:10 | -0.03 | y | 604 | 202 |
