Magnitude |
2.9 |
| Date & Time (UTC) | 2014-02-09 11:02:39.6 |
| Date & Time (Local) | 1392/11/20 14:32:39.6 |

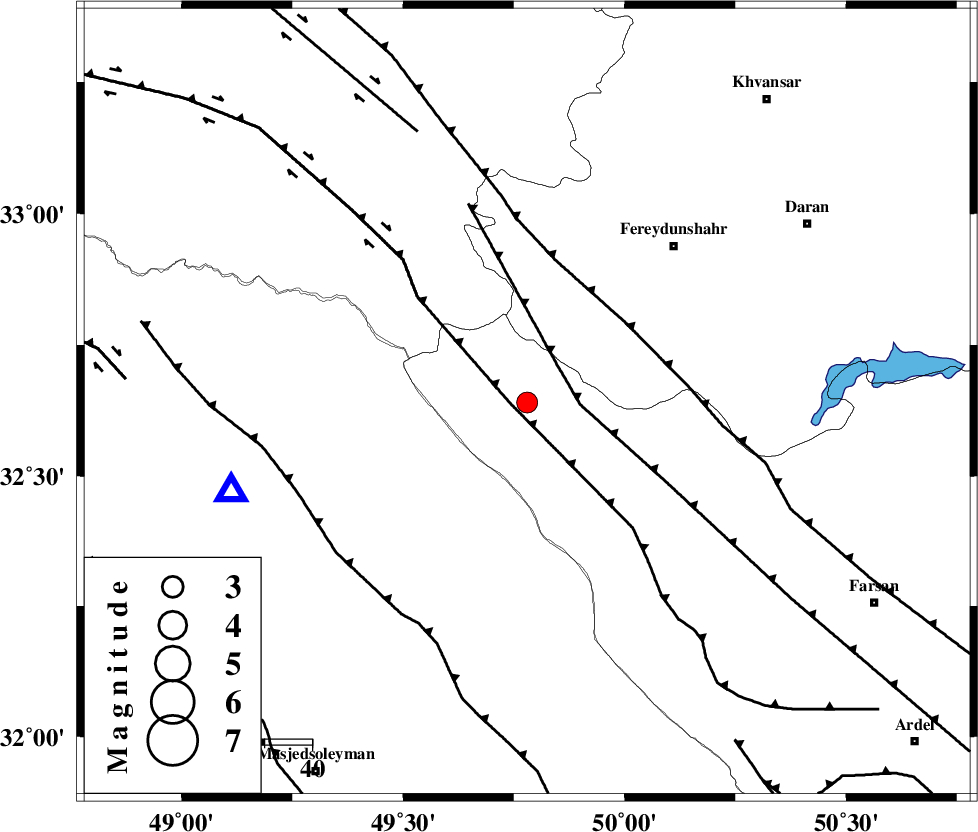

| Location | Lat:32.64 Lon: 49.78 |
| Region | Chaharmahal Bakhtiari Province, 38 km North-West of Chelgard |
Nearest Cities |
|
| 10 km of Durak, Chaharmahal Bakhtiari Province | |
| 24 km South of Masir, Esfahan Province | |
| 37 km North West of Chelgard, Chaharmahal Bakhtiari Province | |
| 38 km South West of Sibak, Esfahan Province | |
| 41 km South East of Parchal, Lorestan Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 3 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 10 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 27 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | 2.8 km |
| Error in Longitude | 5.4 km |
| Error in Depth | 3.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 91765 | IIEES | SHGR | N | 289.5 | 0.25 | 2014-02-09 11:03:13 | 2014-02-09 11:39:00 | n |
| 91766 | IIEES | SHGR | E | 351 | 0.46 | 2014-02-09 11:03:16 | 2014-02-09 11:39:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SHGR | Z | Pg | E | 2014-02-09 11:02:58 | 0.01 | y | 109 | 238 | |
| IIEES | SHGR | N | Sg | E | 2014-02-09 11:03:12 | 0 | y | 109 | 238 | |
| IIEES | KHMZ | Z | Pg | E | 2014-02-09 11:03:01 | -0.03 | y | 124 | 8 | |
| IIEES | KHMZ | E | Sg | E | 2014-02-09 11:03:16 | 0.08 | y | 124 | 8 | |
| IIEES | ASAO | Z | Pn | E | 2014-02-09 11:03:14 | 0 | y | 213 | 6 | |
| IIEES | ASAO | E | Sg | E | 2014-02-09 11:03:43 | -0.07 | y | 213 | 6 |
