Magnitude |
2.6 |
| Date & Time (UTC) | 2014-03-13 03:47:38.7 |
| Date & Time (Local) | 1392/12/22 07:17:38.7 |

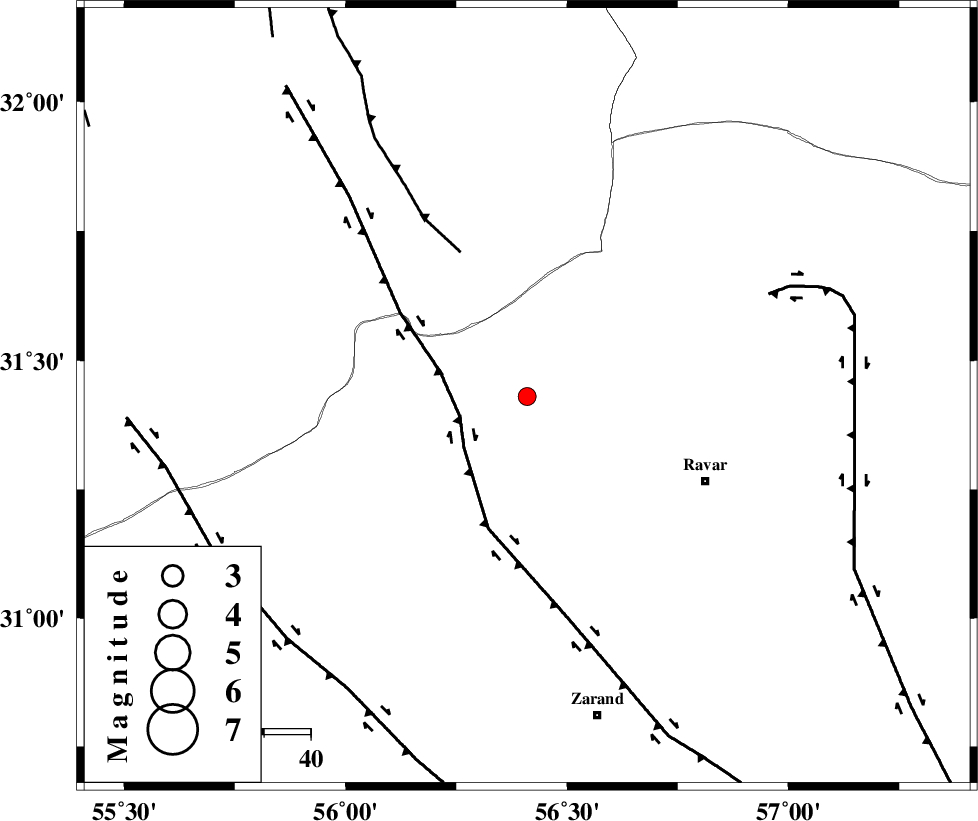

| Location | Lat:31.43 Lon: 56.41 |
| Region | Kerman Province, 43 km North-West of Ravar |
Nearest Cities |
|
| 11 km North East of Kuhbanan, Kerman Province | |
| 14 km North East of Jor, Kerman Province | |
| 31 km North of Toghroljerd, Kerman Province | |
| 32 km South East of Asfih, Yazd Province | |
| 39 km North West of Dehali, Kerman Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 15 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 34 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 56 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | 1.4 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 3.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 91983 | IIEES | YZKH | N | 51.8 | 0.36 | 2014-03-13 03:48:38 | 2014-03-13 04:11:00 | n |
| 91984 | IIEES | YZKH | E | 55.5 | 0.56 | 2014-03-13 03:48:42 | 2014-03-13 04:11:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pn | E | 2014-03-13 03:48:06 | 0.02 | y | 164 | 168 | |
| IIEES | KRBR | E | Sg | E | 2014-03-13 03:48:26 | 0.02 | y | 164 | 168 | |
| IIEES | YZKH | Z | Pn | E | 2014-03-13 03:48:11 | -0.03 | y | 202 | 302 | |
| IIEES | YZKH | N | Sg | E | 2014-03-13 03:48:36 | -0.02 | y | 202 | 302 | |
| IIEES | TABS | Z | Pn | E | 2014-03-13 03:48:17 | 0.12 | y | 254 | 15 | |
| IIEES | BSRN | Z | Pn | E | 2014-03-13 03:48:18 | -0.1 | y | 264 | 76 |
