Magnitude |
2.4 |
| Date & Time (UTC) | 2014-06-29 22:18:36.2 |
| Date & Time (Local) | 1393/4/9 02:48:36.2 |

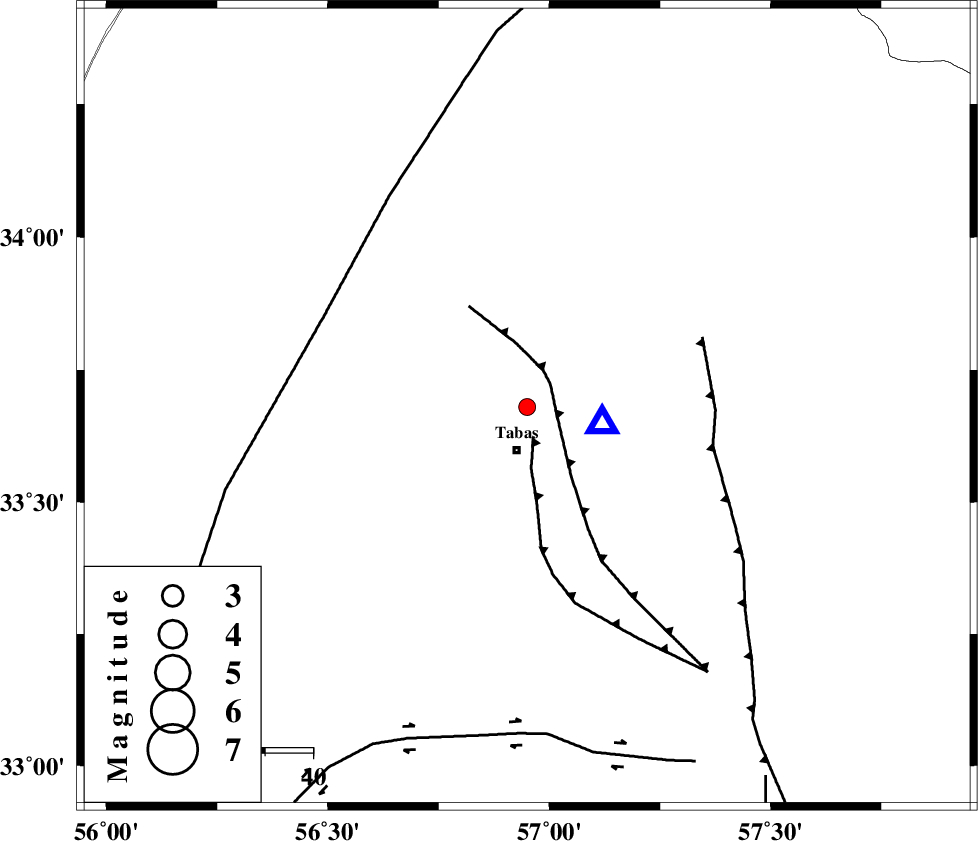

| Location | Lat:33.68 Lon: 56.95 |
| Region | Yazd Province, 9 km Tabas |
Nearest Cities |
|
| 9 km North of Tabas, Yazd Province | |
| 14 km North of Oshtoqran, Yazd Province | |
| 16 km East of Jokhvah, Yazd Province | |
| 26 km North of Kerit, Yazd Province | |
| 32 km South West of Reqqeh, Khorasan(center) Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 6 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 7 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 39 km | |
| Number of Phases | 7 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | 1.6 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 1.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 92702 | IIEES | YZKH | E | 21.1 | 0.44 | 2014-06-29 22:19:52 | 2014-06-29 11:47:00 | n |
| 92703 | IIEES | YZKH | N | 16.1 | 0.32 | 2014-06-29 22:19:53 | 2014-06-29 11:47:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | TABS | Z | Pg | E | 2014-06-29 22:18:40 | -0.02 | y | 15.7 | 103 | |
| IIEES | TABS | E | Sg | E | 2014-06-29 22:18:43 | 0.02 | y | 15.7 | 103 | |
| IIEES | YZKH | Z | Pn | E | 2014-06-29 22:19:16 | 0.03 | y | 263 | 238 | |
| IIEES | YZKH | N | Sg | E | 2014-06-29 22:19:50 | -0.02 | y | 263 | 238 | |
| IIEES | SHRO | Z | Pn | E | 2014-06-29 22:19:17 | 0.01 | y | 272 | 342 | |
| IIEES | BSRN | Z | Pn | E | 2014-06-29 22:19:18 | 0.02 | y | 278 | 133 | |
| IIEES | SHRT | Z | Pn | E | 2014-06-29 22:19:21 | -0.04 | y | 309 | 90 |
