Magnitude |
2.8 |
| Date & Time (UTC) | 2014-07-06 03:29:31.7 |
| Date & Time (Local) | 1393/4/15 07:59:31.7 |

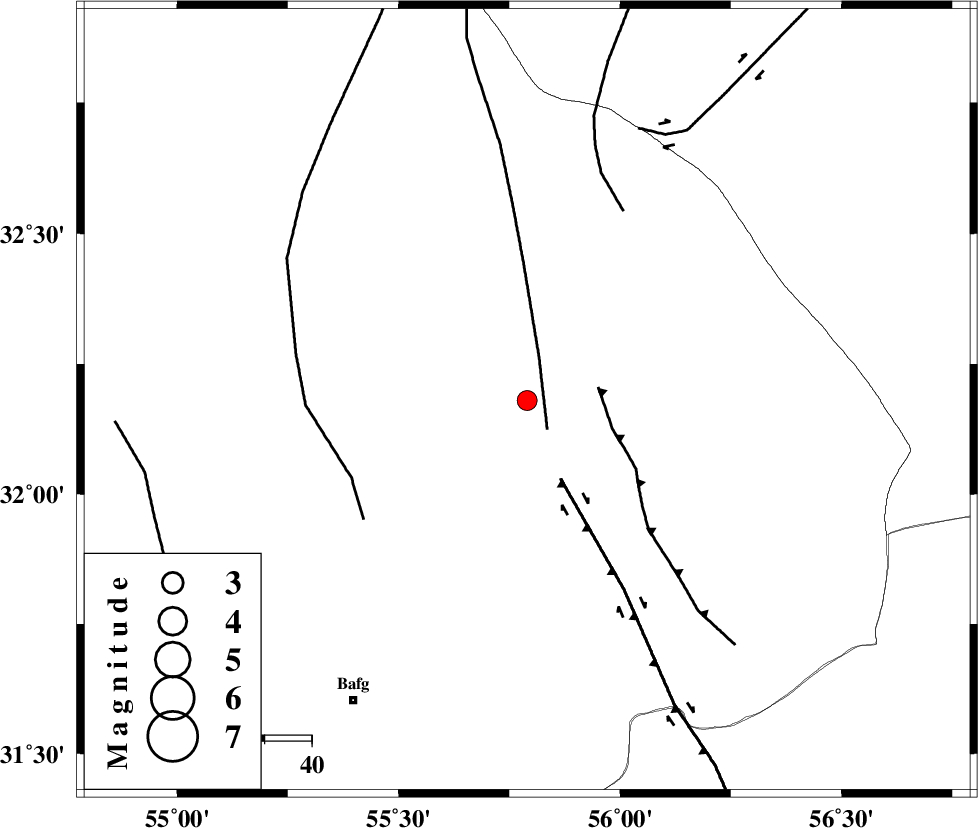

| Location | Lat:32.18 Lon: 55.79 |
| Region | Yazd Province, 74 km North-East of Bafq |
Nearest Cities |
|
| 41 km North West of Behabad, Yazd Province | |
| 49 km North of Kushk, Yazd Province | |
| 57 km North West of Benestan, Yazd Province | |
| 70 km North West of Asfih, Yazd Province | |
| 70 km North East of Mobarake, Yazd Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| SARBALA_F (Length: 92 km) , Distance to epicenter: 8 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 15 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 18 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | 3.7 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 92746 | IIEES | KRBR | N | 47.1 | 0.51 | 2014-07-06 03:30:45 | 2014-07-06 04:56:00 | n |
| 92747 | IIEES | KRBR | E | 57.6 | 0.51 | 2014-07-06 03:30:49 | 2014-07-06 04:56:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | YZKH | Z | Pg | E | 2014-07-06 03:29:51 | -0.03 | y | 115 | 282 | |
| IIEES | TABS | Z | Pn | E | 2014-07-06 03:30:04 | 0.11 | y | 205 | 37 | |
| IIEES | TABS | E | Sg | E | 2014-07-06 03:30:30 | 0.08 | y | 205 | 37 | |
| IIEES | KRBR | Z | Pn | E | 2014-07-06 03:30:11 | 0.13 | y | 261 | 159 | |
| IIEES | SHRT | Z | Pn | E | 2014-07-06 03:30:34 | -0.39 | y | 451 | 68 |
