Magnitude |
3.2 |
| Date & Time (UTC) | 2014-08-17 00:07:44.7 |
| Date & Time (Local) | 1393/5/26 04:37:44.7 |

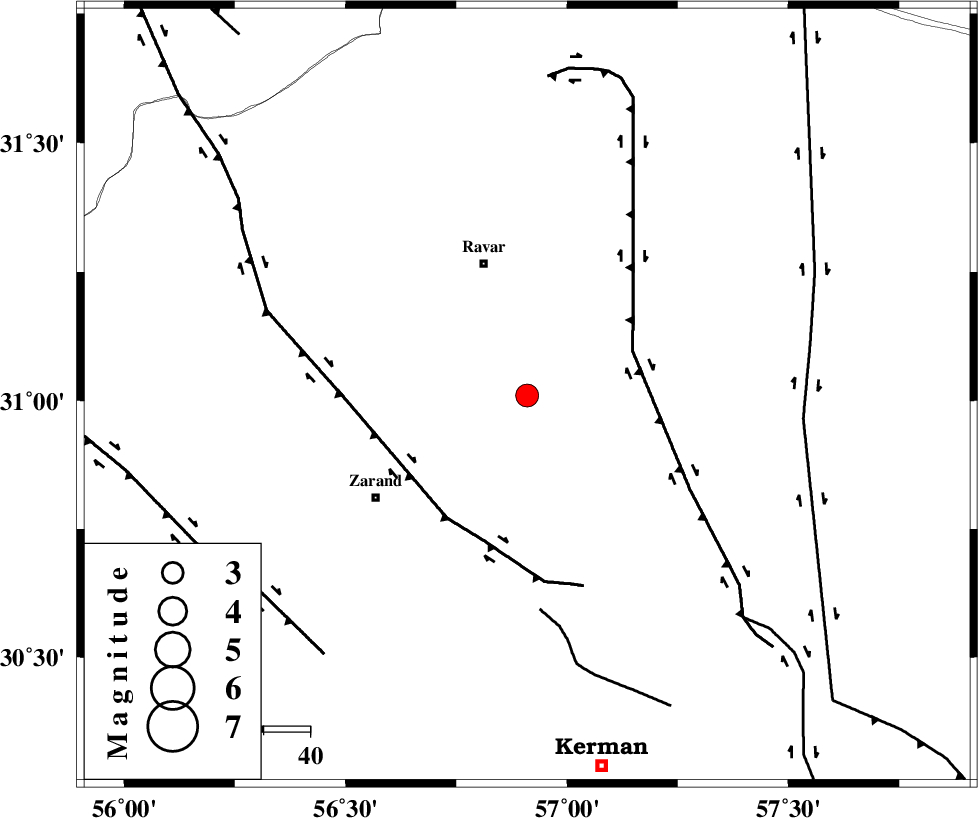

| Location | Lat:31.01 Lon: 56.91 |
| Region | Kerman Province, 30 km South-East of Ravar |
Nearest Cities |
|
| 22 km North East of Hatkan, Kerman Province | |
| 27 km North East of Ahmadi, Kerman Province | |
| 29 km North of Hejdak, Kerman Province | |
| 30 km South of Ravar, Kerman Province | |
| 34 km East of Dasht-e khak, Kerman Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 25 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 32 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 46 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | 7.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 92963 | IIEES | KRBR | E | 647 | 0.28 | 2014-08-17 00:08:52 | 2014-08-17 01:37:00 | n |
| 92964 | IIEES | KRBR | N | 601.1 | 0.44 | 2014-08-17 00:08:52 | 2014-08-17 01:37:00 | n |
| 92965 | IIEES | TABS | N | 97.1 | 0.52 | 2014-08-17 00:09:25 | 2014-08-17 01:37:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BSRN | Z | Pn | E | 2014-08-17 00:08:21 | -0.08 | y | 235 | 63 | |
| IIEES | BSRN | E | Sg | E | 2014-08-17 00:08:51 | 0.05 | y | 235 | 63 | |
| IIEES | YZKH | Z | Pn | E | 2014-08-17 00:08:25 | 0.09 | y | 268 | 305 | |
| IIEES | YZKH | N | Sg | E | 2014-08-17 00:09:00 | -0.03 | y | 268 | 305 | |
| IIEES | TABS | Z | Pn | E | 2014-08-17 00:08:28 | -0.04 | y | 293 | 4 |
