Magnitude |
3 |
| Date & Time (UTC) | 2014-08-29 13:17:32.7 |
| Date & Time (Local) | 1393/6/7 17:47:32.7 |

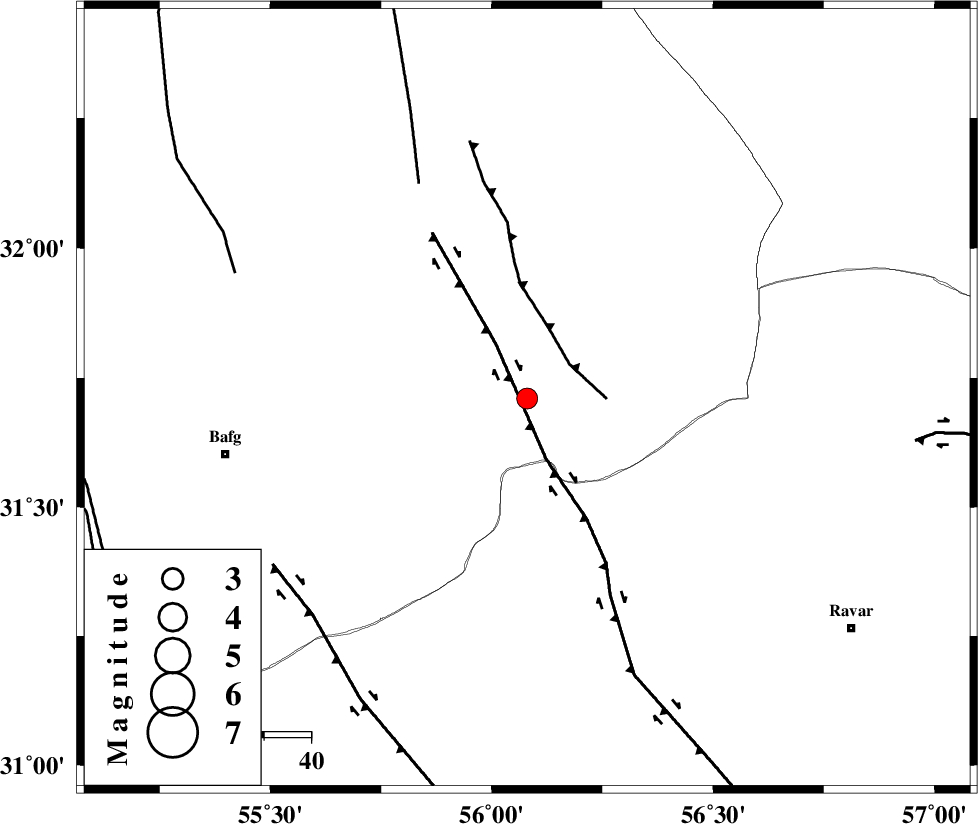

| Location | Lat:31.71 Lon: 56.08 |
| Region | Yazd Province, 65 km North-East of Bafq |
Nearest Cities |
|
| 3 km of Benestan, Yazd Province | |
| 15 km North West of Asfih, Yazd Province | |
| 18 km South of Behabad, Yazd Province | |
| 27 km North of Basab, Yazd Province | |
| 28 km East of Kushk, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 12 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 14 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 51 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | 2.2 km |
| Error in Longitude | 1.2 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 93385 | IIEES | YZKH | N | 174.7 | 0.44 | 2014-08-29 13:18:22 | 2014-08-29 02:35:00 | n |
| 93386 | IIEES | YZKH | E | 253.1 | 0.32 | 2014-08-29 13:18:23 | 2014-08-29 02:35:00 | n |
| 93387 | IIEES | KRBR | E | 132.2 | 0.2 | 2014-08-29 13:18:34 | 2014-08-29 02:35:00 | n |
| 93388 | IIEES | KRBR | N | 124.1 | 0.32 | 2014-08-29 13:18:37 | 2014-08-29 02:35:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | YZKH | Z | Pg | E | 2014-08-29 13:17:59 | 0.06 | y | 159 | 299 | |
| IIEES | YZKH | E | Sg | E | 2014-08-29 13:18:18 | -0.09 | y | 159 | 299 | |
| IIEES | KRBR | Z | Pn | E | 2014-08-29 13:18:05 | 0.05 | y | 203 | 161 | |
| IIEES | TABS | Z | Pn | E | 2014-08-29 13:18:09 | 0.14 | y | 236 | 24 | |
| IIEES | BSRN | Z | Pn | E | 2014-08-29 13:18:16 | -0.15 | y | 290 | 84 | |
| IIEES | BSRN | N | Sg | E | 2014-08-29 13:18:54 | -0.02 | y | 290 | 84 |
