eventspec – IIEES Earthquake Process Program

Magnitude	4
Date & Time (UTC)	2014-09-13 19:42:45.6
Date & Time (Local)	1393/6/23 00:12:45.6
Location	Lat:32.33 Lon: 55.79
Region	Yazd Province, 89 km North-East of Bafq
Nearest Cities
	56 km North West of Behabad, Yazd Province
	66 km North of Kushk, Yazd Province
	72 km North West of Benestan, Yazd Province
	80 km South East of Robat-e posht-e badam, Yazd Province
	84 km North West of Asfih, Yazd Province
Depth	14 km
Agency

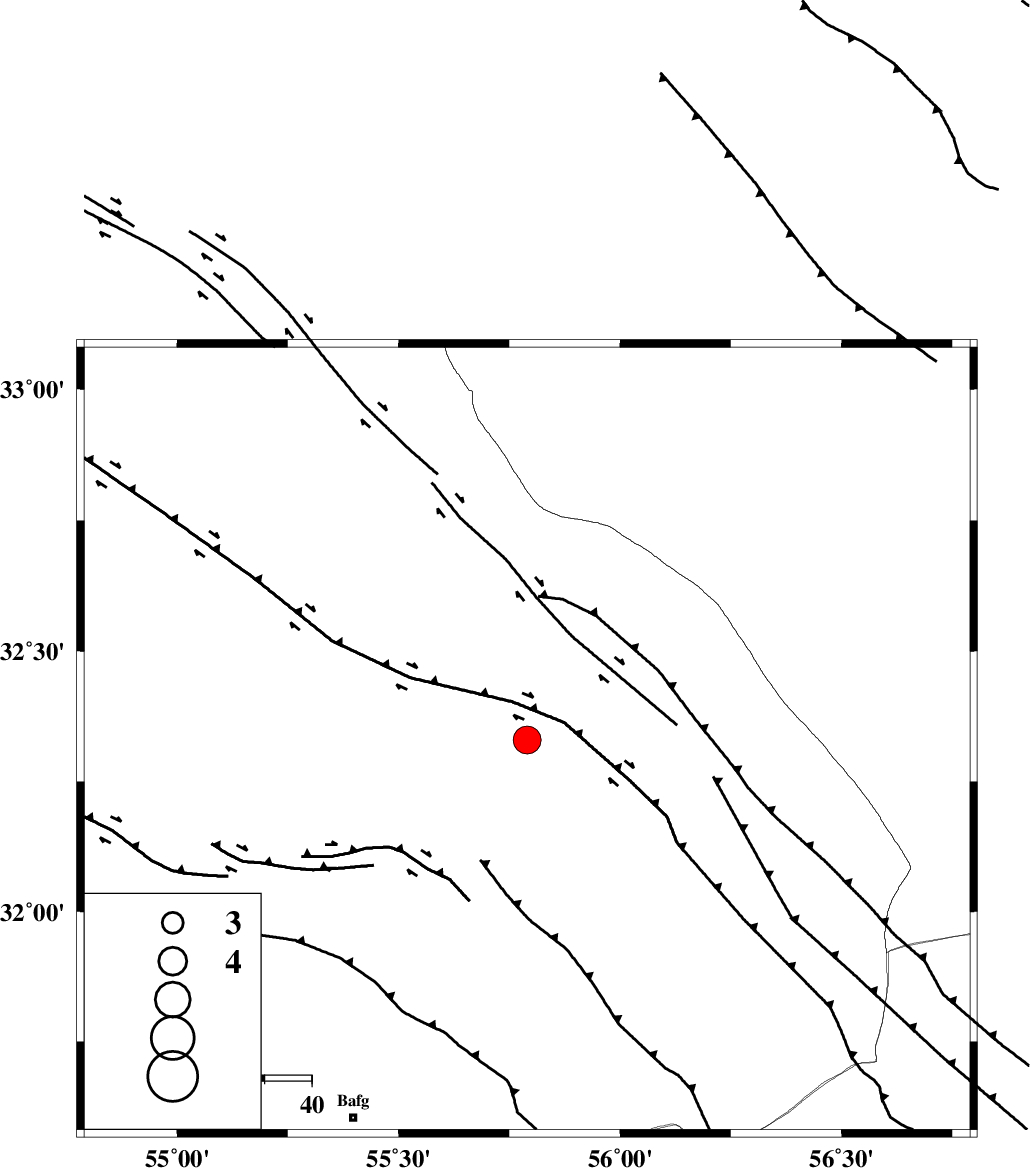

Faults within 150 km:
	SARBALA_F (Length: 92 km) , Distance to epicenter: 8 km
	JAFARABAD_F (Length: 60 km) , Distance to epicenter: 20 km
	NAINI_F (Length: 342 km) , Distance to epicenter: 31 km
Number of Phases	5
RMS	0.1
Number of Stations	5
Error in Latitude	2 km
Error in Longitude	2.2 km
Error in Depth	3.9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
93531	IIEES	YZKH	E	1952.7	0.52	2014-09-13 19:43:22	2014-09-13 09:06:00	n
93532	IIEES	TABS	N	1803.1	0.48	2014-09-13 19:43:47	2014-09-13 09:06:00	n
93533	IIEES	KRBR	N	635.7	0.4	2014-09-13 19:44:09	2014-09-13 09:06:00	n
93534	IIEES	KRBR	E	838	0.6	2014-09-13 19:44:11	2014-09-13 09:06:00	n
93535	IIEES	SHRO	E	253	0.48	2014-09-13 19:44:48	2014-09-13 09:06:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Distance	Azimuth
IIEES	YZKH	Z	Pg	E	2014-09-13 19:43:04	-0.01	y	113	273
IIEES	TABS	Z	Pg	E	2014-09-13 19:43:17	-0.08	y	192	40
IIEES	KRBR	Z	Pn	E	2014-09-13 19:43:27	-0.02	y	277	160
IIEES	SHRO	E	Pn	E	2014-09-13 19:43:44	0.06	y	408	3
IIEES	SHRT	Z	Pn	E	2014-09-13 19:43:48	0.08	y	445	70
