eventspec – IIEES Earthquake Process Program

Magnitude	2.2
Date & Time (UTC)	2014-10-14 09:46:12.9
Date & Time (Local)	1393/7/22 13:16:12.9

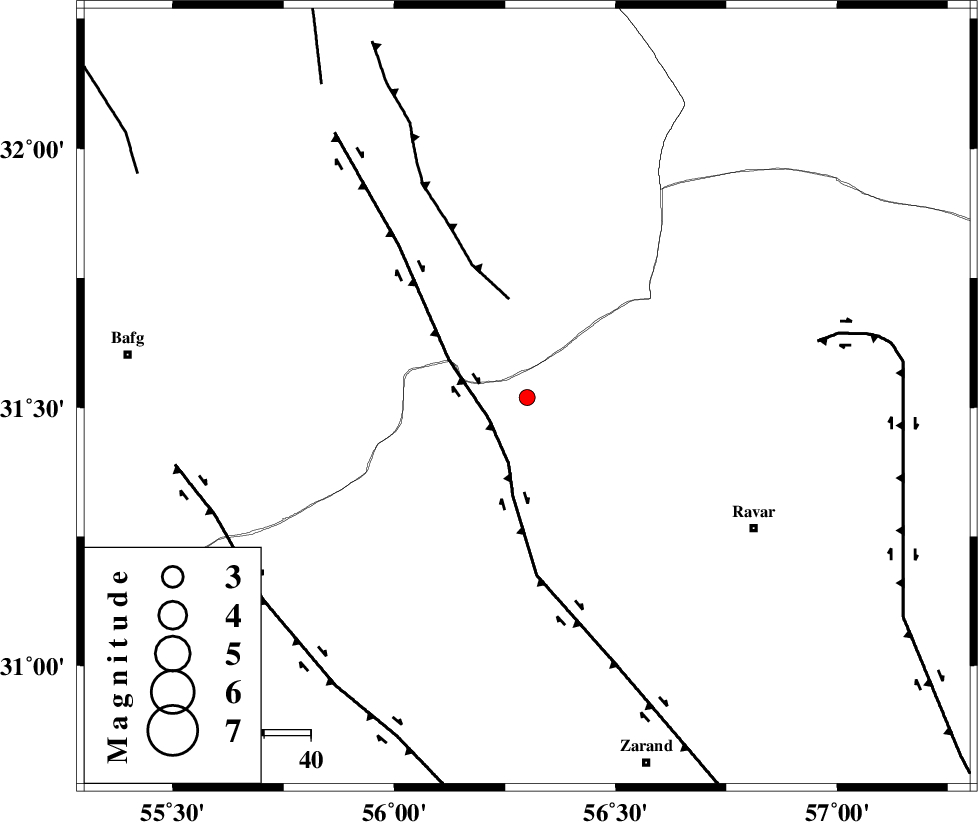

Location	Lat:31.52 Lon: 56.3
Region	Kerman Province, 56 km North-West of Ravar
Nearest Cities
	11 km North of Kuhbanan, Kerman Province
	18 km North of Jor, Kerman Province
	18 km South of Asfih, Yazd Province
	30 km North East of Basab, Yazd Province
	32 km South East of Benestan, Yazd Province
Depth	17 km
Agency
Faults within 150 km:
	KUHBANAN_F (Length: 189 km) , Distance to epicenter: 9 km
	JAFARABAD_F (Length: 60 km) , Distance to epicenter: 21 km
	LAKARKUH_F (Length: 138 km) , Distance to epicenter: 63 km
Number of Phases	6
RMS	0.1
Number of Stations	4
Error in Latitude	1.3 km
Error in Longitude	1.6 km
Error in Depth	3.9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
93885	IIEES	KRBR	N	31.1	0.38	2014-10-14 09:47:08	2014-10-14 10:59:00	n
93886	IIEES	YZKH	N	26.7	0.21	2014-10-14 09:47:09	2014-10-14 10:59:00	n
93887	IIEES	YZKH	E	30.4	0.27	2014-10-14 09:47:09	2014-10-14 10:59:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Distance	Azimuth
IIEES	KRBR	Z	Pg	E	2014-10-14 09:46:42	0.14	y	176	165
IIEES	KRBR	N	Sg	E	2014-10-14 09:47:03	-0.06	y	176	165
IIEES	YZKH	Z	Pg	E	2014-10-14 09:46:43	-0.08	y	188	301
IIEES	TABS	Z	Pn	E	2014-10-14 09:46:51	0.14	y	248	18
IIEES	BSRN	Z	Pn	E	2014-10-14 09:46:54	-0.14	y	272	79
IIEES	BSRN	E	Sg	E	2014-10-14 09:47:29	0	y	272	79
