Magnitude |
2.5 |
| Date & Time (UTC) | 2014-11-06 03:38:02.1 |
| Date & Time (Local) | 1393/8/15 07:08:02.1 |

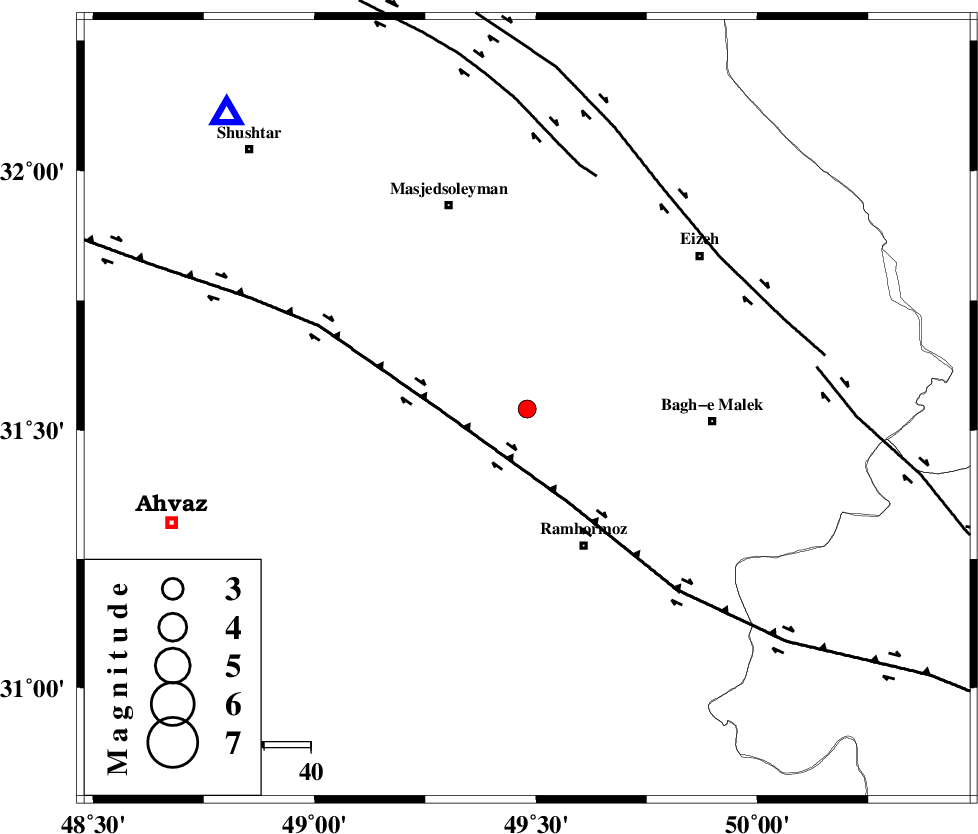

| Location | Lat:31.54 Lon: 49.48 |
| Region | Khoozestan Province, 32 km North-West of Ramhormoz |
Nearest Cities |
|
| 6 km of Jaru, Khoozestan Province | |
| 10 km of Gazin, Khoozestan Province | |
| 11 km North of Haftgol, Khoozestan Province | |
| 24 km North West of Midavood-e sofla, Khoozestan Province | |
| 31 km North of Marbacheh, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 14 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 43 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 45 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | 2.6 km |
| Error in Longitude | 6 km |
| Error in Depth | 3.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 94215 | IIEES | KHMZ | E | 30.8 | 0.5 | 2014-11-06 03:39:16 | 2014-11-06 04:46:00 | n |
| 94216 | IIEES | ASAO | N | 13.5 | 0.52 | 2014-11-06 03:39:47 | 2014-11-06 04:46:00 | n |
| 94217 | IIEES | GHVR | N | 11.7 | 0.44 | 2014-11-06 03:39:56 | 2014-11-06 04:46:00 | n |
| 94218 | IIEES | GHVR | E | 9.7 | 0.57 | 2014-11-06 03:40:00 | 2014-11-06 04:46:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2014-11-06 03:38:40 | 0.1 | y | 248 | 10 | |
| IIEES | KHMZ | E | Sg | E | 2014-11-06 03:39:12 | -0.07 | y | 248 | 10 | |
| IIEES | ASAO | Z | Pn | E | 2014-11-06 03:38:51 | -0.12 | y | 337 | 9 | |
| IIEES | ASAO | N | Sn | 2014-11-06 03:39:28 | 0.14 | y | 337 | 9 | ||
| IIEES | NASN | Z | Pn | E | 2014-11-06 03:38:52 | 0.06 | y | 343 | 65 | |
| IIEES | GHVR | Z | Pn | E | 2014-11-06 03:38:55 | -0.09 | y | 365 | 26 | |
| IIEES | YZKH | Z | Pn | E | 2014-11-06 03:39:11 | -0.02 | y | 492 | 78 |
