Magnitude |
:3.2 |
| Date & Time (UTC) | 2017-05-02 09:08:54.2 |
| Date & Time (Local) | 1396/2/12 13:38:54.2 |

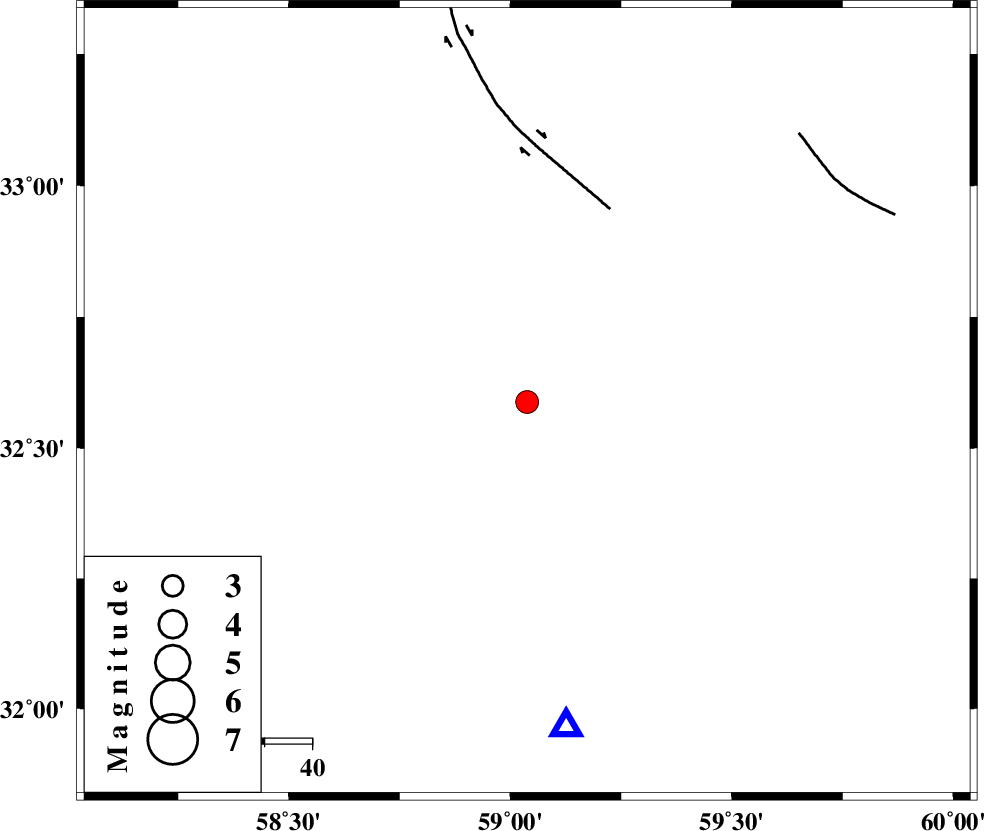

| Location | Lat:32.588 Lon: 59.038 |
| Region | Khorasan(south) Province, 39 km South-West of Birjand |
Nearest Cities |
|
| 5 km of Mazhan, Khorasan(south) Province | |
| 22 km North East of Hamand, Khorasan(south) Province | |
| 26 km South West of Gol, Khorasan(south) Province | |
| 27 km South East of Bisheh bala, Khorasan(south) Province | |
| 27 km South East of Khusef, Khorasan(south) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MOHAMMADABAD_F (Length: 71 km) , Distance to epicenter: 45 km | |
| NOZAD_F (Length: 27 km) , Distance to epicenter: 80 km | |
| DUSTABAD_F (Length: 22 km) , Distance to epicenter: 101 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 115613 | IIEES | BSRN | E | 571.9 | 0.35 | 2017-05-02 09:09:15 | 2017-05-02 10:41:00 | n |
| 115614 | IIEES | SHRT | N | 92.3 | 0.49 | 2017-05-02 09:09:48 | 2017-05-02 10:41:00 | n |
| 115615 | IIEES | TABS | N | 139.5 | 0.34 | 2017-05-02 09:09:58 | 2017-05-02 10:41:00 | n |
| 115616 | IIEES | KRBR | N | 83.9 | 0.69 | 2017-05-02 09:10:46 | 2017-05-02 10:41:00 | n |
| 115617 | IIEES | KRBR | E | 63.3 | 0.5 | 2017-05-02 09:10:49 | 2017-05-02 10:41:00 | n |
| 115618 | IIEES | YZKH | E | 56.3 | 0.44 | 2017-05-02 09:10:58 | 2017-05-02 10:41:00 | n |
| 115619 | IIEES | YZKH | N | 55.5 | 0.48 | 2017-05-02 09:11:00 | 2017-05-02 10:41:00 | n |
| 115620 | IIEES | SHRO | E | 14.1 | 0.86 | 2017-05-02 09:11:14 | 2017-05-02 10:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2017-05-02 09:09:05 | -0.62 | y | 69.6 | 173 | |||
| IIEES | SHRT | Z | Pg | E | 2017-05-02 09:09:21 | -0.04 | y | 166 | 45 | |||
| IIEES | TABS | Z | Pn | E | 2017-05-02 09:09:28 | 0.06 | y | 214 | 304 | |||
| IIEES | TABS | N | Sg | E | 2017-05-02 09:09:54 | -0.14 | y | 214 | 304 | |||
| IIEES | KRBR | Z | Pn | E | 2017-05-02 09:09:47 | 0.87 | y | 361 | 217 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-05-02 09:09:48 | 0.24 | y | 369 | 153 | |||
| IIEES | YZKH | Z | Pn | E | 2017-05-02 09:09:53 | -0.43 | y | 418 | 268 | |||
| IIEES | SHRO | Z | Pn | E | 2017-05-02 09:10:00 | -0.03 | y | 471 | 325 | |||
| IIEES | MRVT | Z | Pn | E | 2017-05-02 09:10:19 | 0.32 | y | 623 | 335 | |||
