Map Title

Magnitude
:5
Date & Time (UTC) 2020-08-31 03:36:52.7
Date & Time (Local) 99/6/10  08:06:52.7

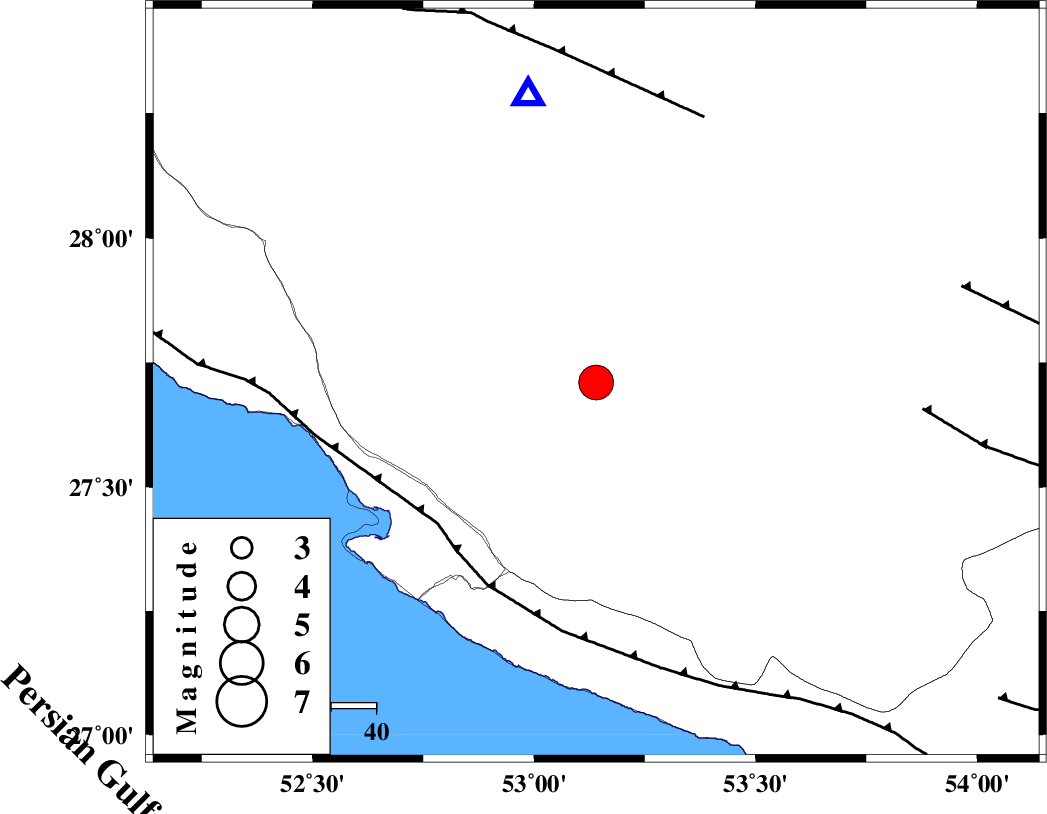

Location Lat:27.71 Lon: 53.14
Region Fars Province, 42 km North of Lamerd
Nearest Cities
20 km North East of Alamarvdasht, Fars Province
31 km North East of Mehr, Fars Province
33 km South West of Khonj, Fars Province
34 km North East of Khoozi, Fars Province
36 km North East of Ardavan-e olia, Fars Province
Depth 10 km
Agency
Faults within 150 km:
MFF3 (Length: 292 km) , Distance to epicenter: 47 km
QIR_F (Length: 130 km) , Distance to epicenter: 64 km
LAR_F (Length: 99 km) , Distance to epicenter: 73 km
Number of Phases 34
RMS 0.9
Number of Stations 35
Error in Latitude >3 km
Error in Longitude 0 km
Error in Depth 0 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
156710IIEES SCLMD1Z 8800012020-08-31 03:37:182020-08-31 02:50:00n
156711IIEES SCGHIRZ 0.2612020-08-31 03:37:322020-08-31 02:50:00n
156712IIEES SCAHRMZ 130012020-08-31 03:38:142020-08-31 02:50:00n
156713IIEES SCBNDSZ 370012020-08-31 03:38:142020-08-31 02:50:00n
156714IIEES SCKLNJZ 160012020-08-31 03:39:332020-08-31 02:50:00n
156715IIEES SCYZKHZ 60012020-08-31 03:39:352020-08-31 02:50:00n
156716IIEES SCNASNZ 37012020-08-31 03:39:472020-08-31 02:50:00n
156717IIEES SCAMISZ 62012020-08-31 03:40:142020-08-31 02:50:00n
156718IIEES SCGTMRZ 55012020-08-31 03:40:422020-08-31 02:50:00n
156719IIEES SCKHMZZ 24012020-08-31 03:40:542020-08-31 02:50:00n
156720IIEES SCBSRNZ 26012020-08-31 03:40:482020-08-31 02:50:00n
156721IIEES SCTABSZ 42012020-08-31 03:40:572020-08-31 02:50:00n
156722IIEES SCCHBRZ 19012020-08-31 03:40:072020-08-31 02:50:00n
156723IIEES SCASAOZ 23012020-08-31 03:40:402020-08-31 02:50:00n
156724IIEES SCANJZ 3212020-08-31 03:39:182020-08-31 02:50:00n
156725IIEES SCDAMVZ 12012020-08-31 03:40:192020-08-31 02:50:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCLMD1Z IP I2020-08-31 03:37:010.2y44177
IIEES SCGHIRZ IP I2020-08-31 03:37:03-1.6y66346
IIEES SCAHRMN IP I2020-08-31 03:37:271.1y222306
IIEES SCBNDSZ IP I2020-08-31 03:37:35-0.8y30096
IIEES SCKLNJZ IP I2020-08-31 03:37:47-0.2y400338
IIEES SCMEHZ IP I2020-08-31 03:37:541.7y43319
IIEES SCUOSSZ IP I2020-08-31 03:37:520.3y433134
IIEES SCYZKHZ IP I2020-08-31 03:38:060.8y53315
IIEES SCNASNZ IP I2020-08-31 03:38:090.3y567357
IIEES SCAMISZ IP I2020-08-31 03:38:09-0.4y578321
IIEES SCGTMRZ IP I2020-08-31 03:38:19-0.6y656325
IIEES SCKHMZZ IP I2020-08-31 03:38:300.3y733336
IIEES SCBSRNZ IP I2020-08-31 03:38:30-0.9y74549
IIEES SCTABSZ IP I2020-08-31 03:38:32-0.4y75629
IIEES SCCHBRZ IP I2020-08-31 03:38:32-1.1y767106
IIEES SCASAOZ IP I2020-08-31 03:38:390.1y811339
IIEES SCANJZ IP I2020-08-31 03:38:460.7y8675
IIEES SCDAMVZ IP I2020-08-31 03:38:48-0.4y889353
IIEES SCRAYNZ IP I2020-08-31 03:38:511.2y900241
IIEES SCSRVNZ IP I2020-08-31 03:38:51-0.3y91190
IIEES SCCHTHZ IP I2020-08-31 03:38:53-0.5y934349
IIEES SCILBAN IP I2020-08-31 03:38:53-1.4y934316
IIEES SCTHKVZ IP I2020-08-31 03:38:54-0.1y934347
IIEES SCQABGZ IP I2020-08-31 03:38:560.3y945340
IIEES SCSHRTZ IP I2020-08-31 03:38:560.1y94544
IIEES SCSHROZ IP I2020-08-31 03:38:57-0.4y95616
IIEES SCSNGEZ IP I2020-08-31 03:38:59-1.3y989328
IIEES SCABGHZ IP I2020-08-31 03:39:051.5y10118
IIEES SCSBZVZ IP I2020-08-31 03:39:090.7y104523
IIEES SCGIDEZ IP I2020-08-31 03:39:100.1y1067344
IIEES SCMRVTZ IP I2020-08-31 03:39:200.5y113413
IIEES SCBJRDZ IP I2020-08-31 03:39:250.6y117819
IIEES SCSRSLZ IP I2020-08-31 03:39:24-1.7y1189324
IIEES SCGRMIZ IP I2020-08-31 03:39:441.5y1323340
