Magnitude |
:3.5 |
| Date & Time (UTC) | 2020-11-12 16:00:01.2 |
| Date & Time (Local) | 1399/8/22 19:30:01.2 |

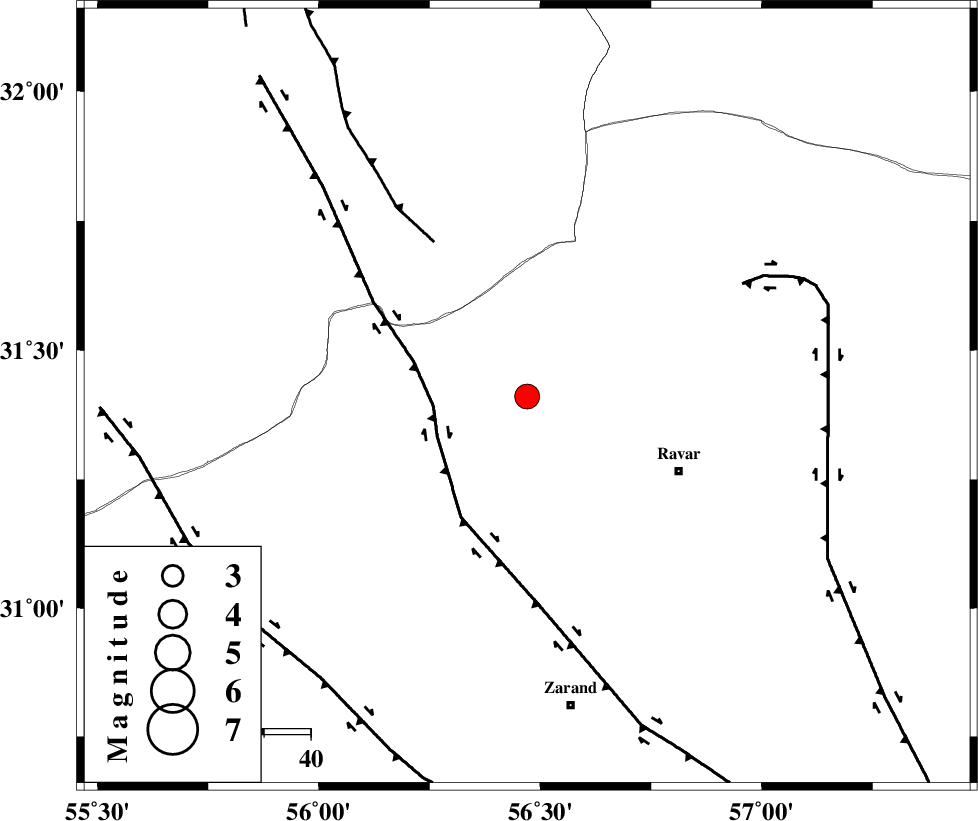

| Location | Lat:31.41 Lon: 56.47 |
| Region | Kerman Province, 36 km North-West of Ravar |
Nearest Cities |
|
| 17 km East of Kuhbanan, Kerman Province | |
| 18 km North East of Jor, Kerman Province | |
| 29 km North of Toghroljerd, Kerman Province | |
| 32 km North West of Dehali, Kerman Province | |
| 36 km North West of Ravar, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 20 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 39 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 52 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 15 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 159217 | IIEES SC | YZKH | Z | 370 | 1 | 2020-11-12 16:01:05 | 2020-11-14 08:12:00 | n |
| 159218 | IIEES SC | TABS | Z | 130 | 1 | 2020-11-12 16:01:26 | 2020-11-14 08:12:00 | n |
| 159219 | IIEES SC | BSRN | Z | 220 | 1 | 2020-11-12 16:01:24 | 2020-11-14 08:12:00 | n |
| 159220 | IIEES SC | SHRT | Z | 29 | 1 | 2020-11-12 16:02:12 | 2020-11-14 08:12:00 | n |
| 159221 | IIEES SC | SHRO | Z | 2.4 | 1 | 2020-11-12 16:02:23 | 2020-11-14 08:12:00 | n |
| 159222 | IIEES SC | SBZV | Z | 15 | 1 | 2020-11-12 16:02:55 | 2020-11-14 08:12:00 | n |
| 159223 | IIEES SC | SBZV | Z | 19 | 0.45 | 2020-11-12 16:01:19 | 2020-11-14 08:12:00 | n |
| 159224 | IIEES SC | ABGH | Z | 31 | 1 | 2020-11-12 16:03:13 | 2020-11-14 08:12:00 | n |
| 159225 | IIEES SC | ABGH | Z | 11 | 0.47 | 2020-11-12 16:01:52 | 2020-11-14 08:12:00 | n |
| 159226 | IIEES SC | AKL | Z | 23 | 0.69 | 2020-11-12 16:01:27 | 2020-11-14 08:12:00 | n |
| 159227 | IIEES SC | KAGH | Z | 1.8 | 0.67 | 2020-11-12 16:01:37 | 2020-11-14 08:12:00 | n |
| 159228 | IIEES SC | MRVT | Z | 7.9 | 1 | 2020-11-12 16:02:45 | 2020-11-14 08:12:00 | n |
| 159229 | IIEES SC | MRVT | Z | 4.5 | 0.86 | 2020-11-12 16:01:37 | 2020-11-14 08:12:00 | n |
| 159230 | IIEES SC | BJRD | Z | 3.2 | 1 | 2020-11-12 16:02:48 | 2020-11-14 08:12:00 | n |
| 159231 | IIEES SC | BJRD | Z | 3.7 | 0.81 | 2020-11-12 16:01:40 | 2020-11-14 08:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | Z | IP | I | 2020-11-12 16:00:43 | 15.9 | n | 4 | 155 | 170 | ||
| IIEES SC | MEH | Z | IP | I | 2020-11-12 16:00:30 | 0 | y | 177 | 269 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-11-12 16:00:35 | -0.1 | y | 211 | 301 | |||
| IIEES SC | TABS | Z | IP | I | 2020-11-12 16:00:40 | -0.5 | y | 255 | 14 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-11-12 16:00:41 | -0.2 | y | 255 | 76 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-11-12 16:01:04 | 0.5 | y | 433 | 55 | |||
| IIEES SC | ZHSF | Z | IP | I | 2020-11-12 16:01:24 | 17.9 | n | 4 | 455 | 116 | ||
| IIEES SC | SHRO | Z | IP | I | 2020-11-12 16:01:12 | -0.7 | y | 511 | 355 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-11-12 16:01:19 | 0.7 | n | 4 | 556 | 40 | ||
| IIEES SC | SBZV | Z | IP | I | 2020-11-12 16:01:19 | -0.1 | y | 567 | 11 | |||
| IIEES SC | ABGH | Z | IP | I | 2020-11-12 16:01:25 | 0.6 | y | 611 | 345 | |||
| IIEES SC | AKL | Z | IP | I | 2020-11-12 16:01:25 | 0 | y | 611 | 20 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-11-12 16:01:36 | 0.8 | y | 689 | 28 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-11-12 16:01:35 | 0 | y | 689 | 357 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-11-12 16:01:36 | -0.3 | y | 700 | 7 | |||
| IIEES SC | AKL | Z | IVmB_BB | 2020-11-12 16:01:26 | y | 1 | 611 | 20 | ||||
