Magnitude |
:3.6 |
| Date & Time (UTC) | 2021-06-05 08:11:34.2 |
| Date & Time (Local) | 1400/3/15 12:41:34.2 |

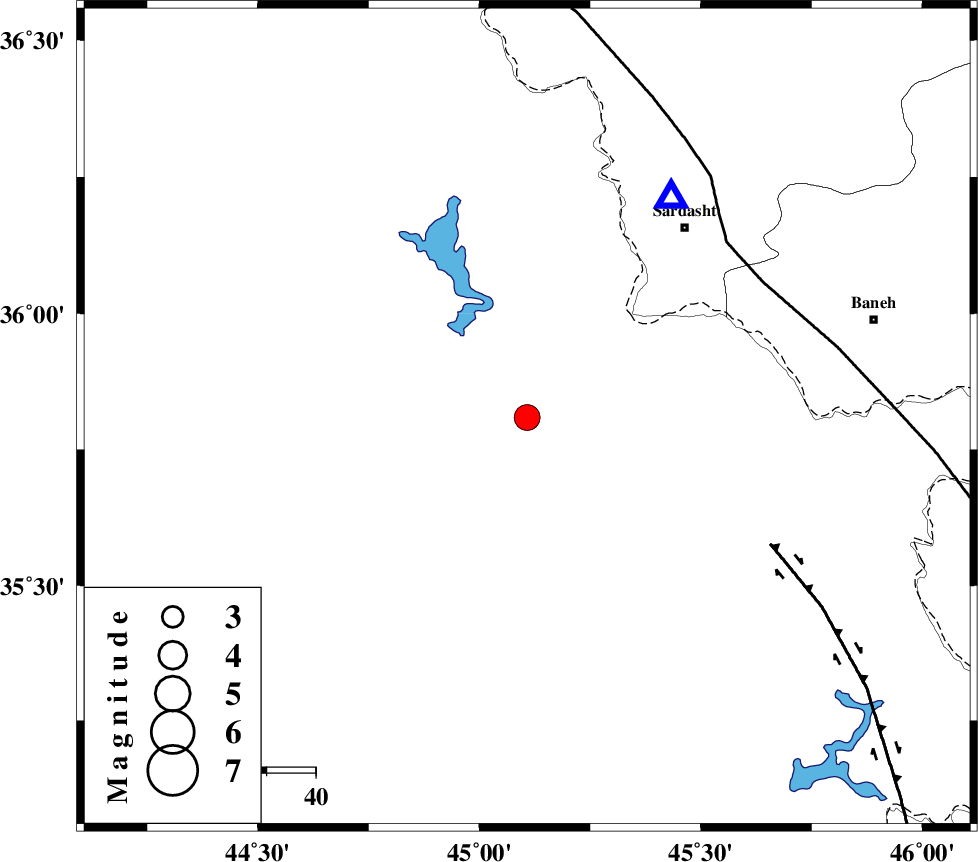

| Location | Lat:35.809 Lon: 45.108 |
| Region | Iraq, 41 km North-West of Sulaymaniyah |
Nearest Cities |
|
| 41 km North West of Sulaymaniyah, Iraq Province | |
| 48 km South West of Bivaran-e sofla, Azarbaijan Gharbi Province | |
| 50 km South West of Sardasht, Azarbaijan Gharbi Province | |
| 54 km South West of Bersiv, Azarbaijan Gharbi Province | |
| 56 km South West of Bolhasan, Kurdistan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 54 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 56 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 132 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | >11.8 km |
| Error in Longitude | 11.8 km |
| Error in Depth | 18.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 163514 | IIEES SC | SNGE | Z | 0.8 | 1 | 2021-06-05 08:12:10 | 2021-06-07 04:36:00 | n |
| 163515 | IIEES SC | MRD | Z | 0.4 | 1 | 2021-06-05 08:12:23 | 2021-06-07 04:36:00 | n |
| 163516 | IIEES SC | GTMR | Z | 0.06 | 1 | 2021-06-05 08:12:46 | 2021-06-07 04:36:00 | n |
| 163517 | IIEES SC | DAMV | Z | 0.03 | 1 | 2021-06-05 08:12:59 | 2021-06-07 04:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MAHB | Z | EPg | E | 2021-06-05 08:11:54 | -0.4 | y | 0 | 119 | 27 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-06-05 08:12:10 | 0.5 | y | 0 | 218 | 111 | ||
| IIEES SC | AZR | Z | EPn | E | 2021-06-05 08:12:10 | 0.2 | y | 0 | 222 | 21 | ||
| IIEES SC | MRD | Z | EPn | E | 2021-06-05 08:12:23 | 0.1 | y | 0 | 327 | 9 | ||
| IIEES SC | QABG | Z | EPn | E | 2021-06-05 08:12:49 | 16.5 | n | 4 | 405 | 92 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-06-05 08:12:47 | 9.6 | n | 4 | 441 | 74 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-06-05 08:12:45 | 5.2 | n | 4 | 465 | 82 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-06-05 08:12:46 | -0.7 | y | 0 | 523 | 135 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-06-05 08:12:55 | 1.1 | y | 0 | 578 | 105 | ||
| IIEES SC | DAMV | Z | EPn | E | 2021-06-05 08:12:59 | -0.6 | y | 0 | 621 | 92 | ||
