Magnitude |
:3.6 |
| Date & Time (UTC) | 2021-06-14 12:19:12.9 |
| Date & Time (Local) | 1400/3/24 16:49:12.9 |

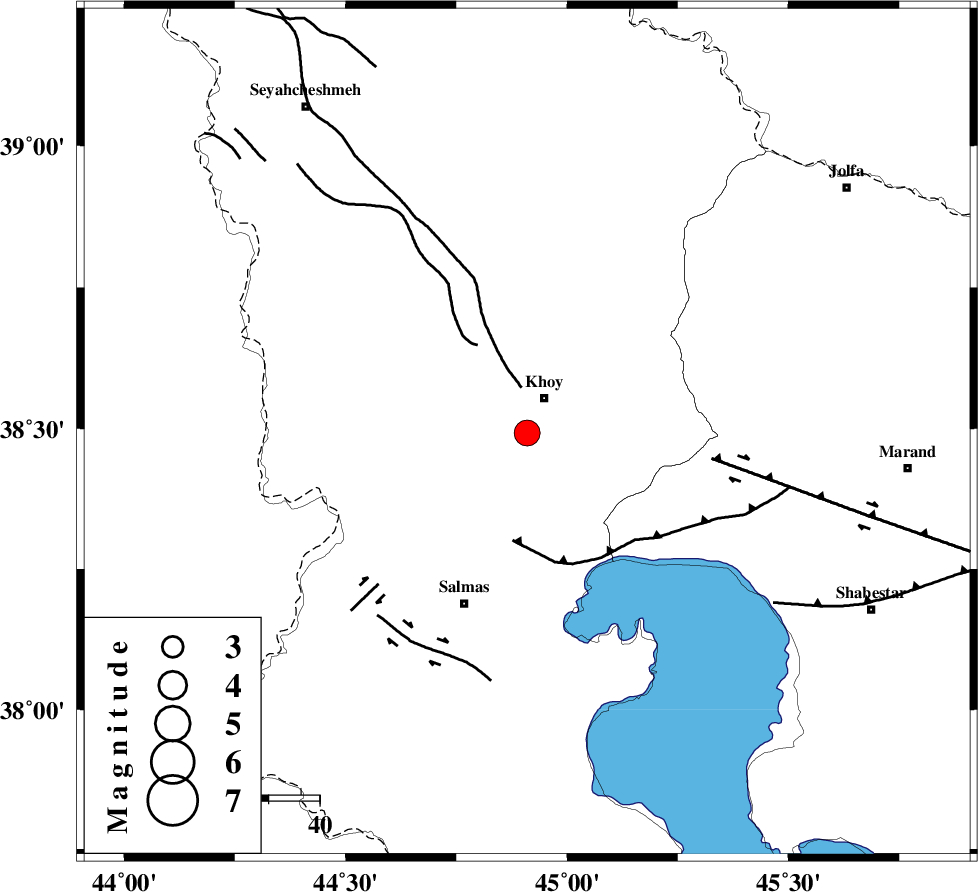

| Location | Lat:38.492 Lon: 44.91 |
| Region | Azarbaijan Gharbi Province, 8 km of Khoy |
Nearest Cities |
|
| 5 km North of Quruq, Azarbaijan Gharbi Province | |
| 8 km of Khoy, Azarbaijan Gharbi Province | |
| 11 km North West of Dizaj diz, Azarbaijan Gharbi Province | |
| 11 km East of Beyk sofla, Azarbaijan Gharbi Province | |
| 13 km West of Saeedabad, Azarbaijan Gharbi Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 9 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 21 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 37 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >9.1 km |
| Error in Longitude | 9.1 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 163719 | IIEES SC | MRD | Z | 20 | 1 | 2021-06-14 12:19:25 | 2021-06-15 05:34:00 | n |
| 163720 | IIEES SC | GRMI | Z | 0.5 | 1 | 2021-06-14 12:19:54 | 2021-06-15 05:34:00 | n |
| 163721 | IIEES SC | SNGE | Z | 0.05 | 1 | 2021-06-14 12:20:15 | 2021-06-15 05:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2021-06-14 12:19:25 | -0.1 | y | 0 | 73 | 70 | ||
| IIEES SC | MRD | Z | ESg | E | 2021-06-14 12:19:33 | -1.8 | n | 4 | 73 | 70 | ||
| IIEES SC | AZR | Z | EPg | E | 2021-06-14 12:19:35 | -0.1 | y | 0 | 131 | 134 | ||
| IIEES SC | MAHB | Z | EPn | E | 2021-06-14 12:19:46 | -0.1 | y | 0 | 204 | 160 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-06-14 12:19:54 | -0.1 | y | 0 | 262 | 82 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-06-14 12:20:12 | 2.5 | n | 4 | 390 | 121 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-06-14 12:20:15 | 0.2 | y | 0 | 436 | 150 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-06-14 12:20:27 | 1.1 | y | 0 | 525 | 116 | ||
