Magnitude |
:3.8 |
| Date & Time (UTC) | 2021-06-22 22:43:18.3 |
| Date & Time (Local) | 1400/4/2 03:13:18.3 |

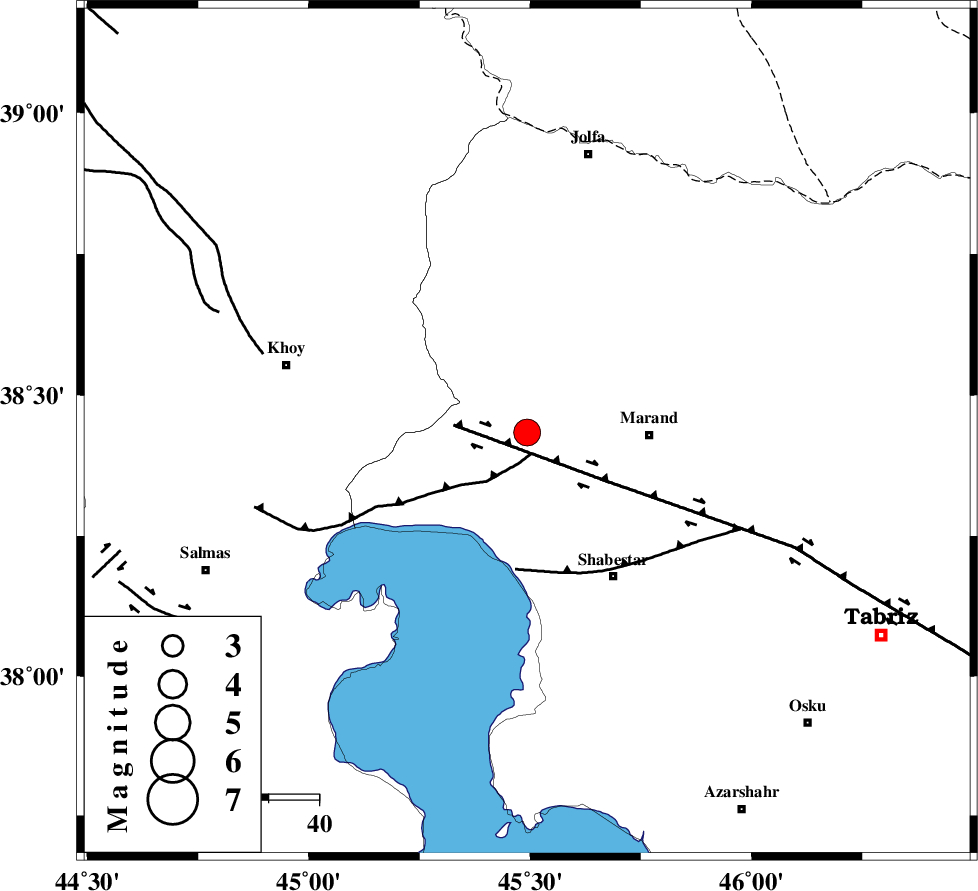

| Location | Lat:38.434 Lon: 45.493 |
| Region | Azarbaijan Sharghi Province, 24 km -West of Marand |
Nearest Cities |
|
| 7 km of Kashksaray, Azarbaijan Sharghi Province | |
| 16 km West of Yamchi, Azarbaijan Sharghi Province | |
| 17 km North East of Tasuj, Azarbaijan Sharghi Province | |
| 21 km North East of Jahregan, Azarbaijan Sharghi Province | |
| 22 km North West of Kandlaj, Azarbaijan Sharghi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 4 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 15 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 27 km | |
| Number of Phases | 17 |
| RMS | 0.3 |
| Number of Stations | 17 |
| Error in Latitude | >5.1 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 4.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 163784 | IIEES SC | MRD | Z | 20 | 1 | 2021-06-22 22:43:25 | 2021-06-23 04:26:00 | n |
| 163785 | IIEES SC | MAHB | Z | 1 | 1 | 2021-06-22 22:43:48 | 2021-06-23 04:26:00 | n |
| 163786 | IIEES SC | GRMI | Z | 1 | 1 | 2021-06-22 22:43:52 | 2021-06-23 04:26:00 | n |
| 163787 | IIEES SC | ZNJK | Z | 0.2 | 1 | 2021-06-22 22:44:09 | 2021-06-23 04:26:00 | n |
| 163788 | IIEES SC | SNGE | Z | 0.2 | 1 | 2021-06-22 22:44:18 | 2021-06-23 04:26:00 | n |
| 163789 | IIEES SC | GIDE | Z | 0.5 | 1 | 2021-06-22 22:44:18 | 2021-06-23 04:26:00 | n |
| 163790 | IIEES SC | ILBA | Z | 0.1 | 1 | 2021-06-22 22:44:32 | 2021-06-23 04:26:00 | n |
| 163791 | IIEES SC | ASAO | Z | 0.07 | 1 | 2021-06-22 22:44:39 | 2021-06-23 04:26:00 | n |
| 163792 | IIEES SC | GHVR | Z | 0.1 | 1 | 2021-06-22 22:44:50 | 2021-06-23 04:26:00 | n |
| 163793 | IIEES SC | GTMR | Z | 0.04 | 1 | 2021-06-22 22:44:58 | 2021-06-23 04:26:00 | n |
| 163794 | IIEES SC | ABGH | Z | 0.01 | 1 | 2021-06-22 22:45:11 | 2021-06-23 04:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2021-06-22 22:43:25 | 0 | y | 0 | 36 | 30 | ||
| IIEES SC | AZR | Z | EPg | E | 2021-06-22 22:43:37 | 3.2 | n | 4 | 94 | 153 | ||
| IIEES SC | MAHB | Z | EPg | E | 2021-06-22 22:43:48 | 0 | y | 0 | 186 | 174 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-06-22 22:43:52 | 0.2 | y | 0 | 213 | 79 | ||
| IIEES SC | GRMI | Z | ES | E | 2021-06-22 22:44:29 | 11.6 | n | 4 | 213 | 79 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-06-22 22:44:09 | 0.5 | y | 0 | 343 | 125 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-06-22 22:44:18 | 1.3 | y | 0 | 406 | 156 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-06-22 22:44:18 | 0.1 | y | 0 | 417 | 114 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-06-22 22:44:32 | -0.4 | y | 0 | 538 | 173 | ||
| IIEES SC | ASAO | Z | EPn | E | 2021-06-22 22:44:39 | -0.4 | y | 0 | 592 | 137 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-06-22 22:44:50 | 0.1 | y | 0 | 677 | 130 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-06-22 22:44:58 | 0.3 | y | 0 | 739 | 154 | ||
| IIEES SC | GLO | Z | EPn | E | 2021-06-22 22:45:01 | -0.1 | y | 0 | 768 | 106 | ||
| IIEES SC | ABGH | Z | EPn | E | 2021-06-22 22:45:11 | 0 | y | 0 | 843 | 103 | ||
| IIEES SC | MRVT | Z | EPn | E | 2021-06-22 22:45:21 | -0.3 | y | 0 | 934 | 95 | ||
| IIEES SC | SHRO | Z | EPn | E | 2021-06-22 22:45:27 | 0.2 | y | 0 | 972 | 106 | ||
| IIEES SC | BJRD | Z | EPn | E | 2021-06-22 22:45:36 | -0.6 | y | 0 | 1049 | 94 | ||
