Magnitude
:4.4
Date & Time (UTC) 2021-06-27 14:23:13.2
Date & Time (Local) 1400/4/6  18:53:13.2

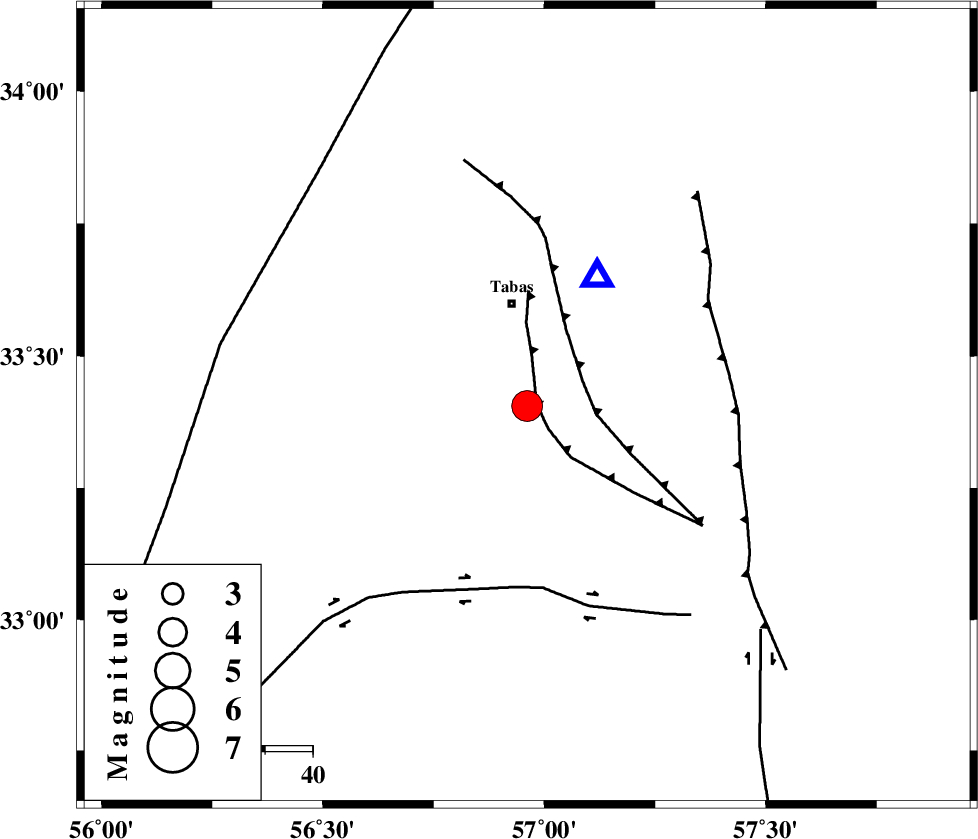

Location Lat:33.405 Lon: 56.961
Region Yazd Province, 22 km South of Tabas
Nearest Cities
6 km of Kerit, Yazd Province
17 km South of Oshtoqran, Yazd Province
22 km South of Tabas, Yazd Province
39 km South East of Jokhvah, Yazd Province
51 km South West of Arsak, Khorasan(center) Province
Depth 6 km
Agency
Faults within 150 km:
TABAS_F2 (Length: 67 km) , Distance to epicenter: 2 km
TABAS_F1 (Length: 91 km) , Distance to epicenter: 13 km
CHESHMEH_ROSTAM_ (Length: 142 km) , Distance to epicenter: 38 km
Number of Phases 28
RMS 0.5
Number of Stations 28
Error in Latitude >1.3 km
Error in Longitude 1.3 km
Error in Depth 4.3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
163835IIEES SCYZKHZ 1012021-06-27 14:23:522021-06-28 04:32:00n
163836IIEES SCBSRNZ 212021-06-27 14:23:532021-06-28 04:32:00n
163837IIEES SCSHRTZ 0.712021-06-27 14:24:002021-06-28 04:32:00n
163838IIEES SCANJZ 0.812021-06-27 14:24:062021-06-28 04:32:00n
163839IIEES SCTBJMZ 112021-06-27 14:24:082021-06-28 04:32:00n
163840IIEES SCNASNZ 112021-06-27 14:24:112021-06-28 04:32:00n
163841IIEES SCKAGHZ 0.112021-06-27 14:24:212021-06-28 04:32:00n
163842IIEES SCMRVTZ 0.312021-06-27 14:24:212021-06-28 04:32:00n
163843IIEES SCGHVRZ 212021-06-27 14:24:292021-06-28 04:32:00n
163844IIEES SCKLNJZ 0.412021-06-27 14:24:342021-06-28 04:32:00n
163845IIEES SCASAOZ 0.312021-06-27 14:24:432021-06-28 04:32:00n
163846IIEES SCBNDSZ 0.112021-06-27 14:24:442021-06-28 04:32:00n
163847IIEES SCGTMRZ 0.112021-06-27 14:24:542021-06-28 04:32:00n
163848IIEES SCGIDEZ 0.312021-06-27 14:24:552021-06-28 04:32:00n
163849IIEES SCZNJKZ 0.0612021-06-27 14:25:052021-06-28 04:32:00n
163850IIEES SCSRVNZ 0.0812021-06-27 14:25:072021-06-28 04:32:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCTABSZ EPg E2021-06-27 14:23:180y03128
IIEES SCYZKHZ EPn E2021-06-27 14:23:52-0.7y0249243
IIEES SCBSRNZ EPn E2021-06-27 14:23:53-0.4y0258128
IIEES SCSHROZ EPn E2021-06-27 14:23:58-0.8y0302343
IIEES SCSHRTZ EPn E2021-06-27 14:24:000y031085
IIEES SCANJZ EPn E2021-06-27 14:24:06-0.2y0362309
IIEES SCTBJMZ EPn E2021-06-27 14:24:080.2y037256
IIEES SCKRBRZ EPn E2021-06-27 14:24:133.8n4380183
IIEES SCNASNZ EPn E2021-06-27 14:24:110y0394260
IIEES SCABGHZ EPn E2021-06-27 14:24:140.4y0419332
IIEES SCGLOZ EPn E2021-06-27 14:24:181.1y0447320
IIEES SCKAGHZ EPn E2021-06-27 14:24:210.4y047835
IIEES SCBJRDZ EPn E2021-06-27 14:24:21-0.2y04785
IIEES SCMRVTZ EPn E2021-06-27 14:24:210.2y0479350
IIEES SCGHVRZ EPn E2021-06-27 14:24:290.4y0542283
IIEES SCZHSFZ EPn E2021-06-27 14:24:15-15.4n4555139
IIEES SCKLNJZ EPn E2021-06-27 14:24:340.9y0572242
IIEES SCKHMZZ EPn E2021-06-27 14:24:28-14.7n4651273
IIEES SCASAOZ EPn E2021-06-27 14:24:430y0653281
IIEES SCBNDSZ EPn E2021-06-27 14:24:44-0.9y0670187
IIEES SCGHIRZ EPn E2021-06-27 14:24:470.4y0683214
IIEES SCGZVZ EPn E2021-06-27 14:24:490.8y0700298
IIEES SCGTMRZ EPn E2021-06-27 14:24:540.3y0741262
IIEES SCGIDEZ EPn E2021-06-27 14:24:55-0.2y0758301
IIEES SCZNJKZ EPn E2021-06-27 14:25:05-0.5y0838296
IIEES SCSRVNZ EPn E2021-06-27 14:25:070.6y0846142
IIEES SCSNGEZ EPn E2021-06-27 14:25:13-0.5y0905282
IIEES SCILBAZ EPn E2021-06-27 14:25:25-0.7y0999271
