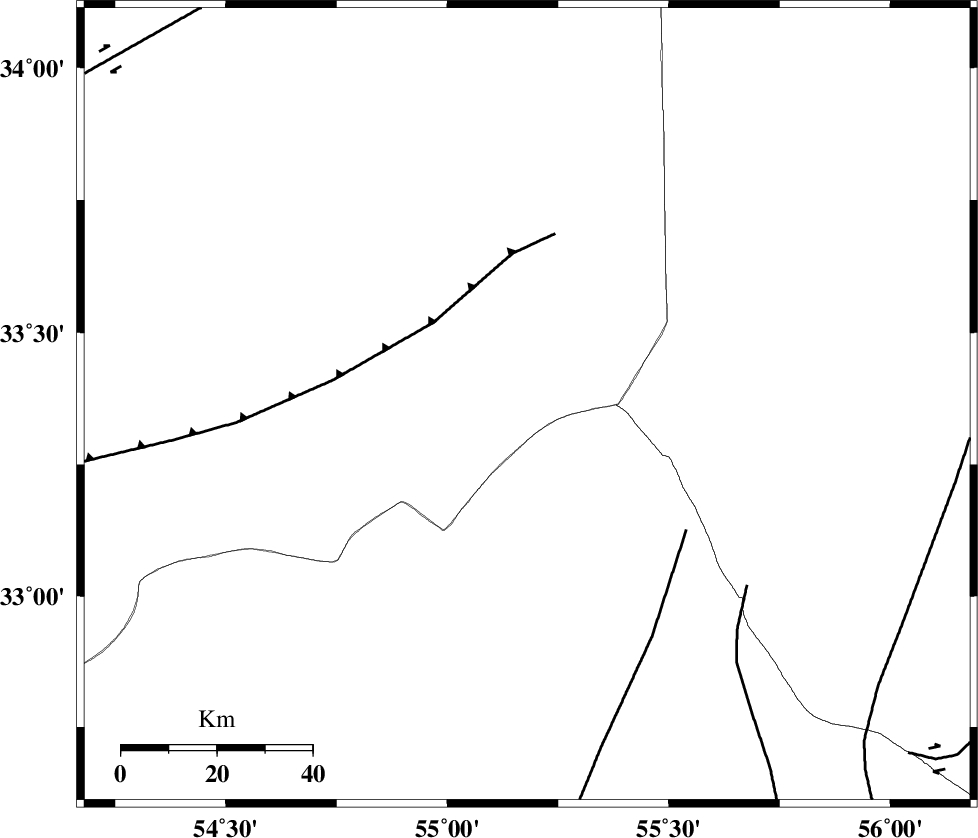

Map Region : lat:-  lon:-

West   East
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Date & Time (UTC) 2021-07-17 02:22:45.6
Date & Time (Local) 1400/4/26  06:52:45.6
Location Lat:33.362 Lon: 55.18
Region Esfahan Province, 197 km North-West of Bafq
Nearest Cities
16 km South of Mehranjan, Esfahan Province
38 km North East of Hajiabad, Yazd Province
47 km South of Khur, Esfahan Province
52 km North West of Robat-e posht-e badam, Yazd Province
58 km South East of Farrokhi, Esfahan Province
Depth 8 km
Faults within 150 km:
BIABANAK_F (Length: 162 km) , Distance to epicenter: 26 km
POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 43 km
SARBALA_F (Length: 92 km) , Distance to epicenter: 60 km
Number of Phases 12
RMS 0.5
Number of Stations 12
Error in Latitude >2.2 km
Error in Longitude 2.2 km
Error in Depth 11.1 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
164145IIEES SCYZKHZ 212021-07-17 02:23:052021-07-17 04:52:00n
164146IIEES SCTABSZ 112021-07-17 02:23:162021-07-17 04:52:00n
164147IIEES SCNASNZ 0.612021-07-17 02:23:232021-07-17 04:52:00n
164148IIEES SCGHVRZ 0.212021-07-17 02:23:422021-07-17 04:52:00n
164149IIEES SCBSRNZ 0.112021-07-17 02:23:432021-07-17 04:52:00n
164150IIEES SCSHRTZ 0.0712021-07-17 02:23:532021-07-17 04:52:00n
164151IIEES SCMRVTZ 0.0312021-07-17 02:23:532021-07-17 04:52:00n
164152IIEES SCTBJMZ 0.112021-07-17 02:23:592021-07-17 04:52:00n
164153IIEES SCGZVZ 0.0512021-07-17 02:24:042021-07-17 04:52:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCYZKHZ EPg E2021-07-17 02:23:05-0.5y0121207
IIEES SCTABSZ EPg E2021-07-17 02:23:160.4y018380
IIEES SCNASNZ EPn E2021-07-17 02:23:230.6y0230254
IIEES SCSHROZ EPn E2021-07-17 02:23:31-0.4y030315
IIEES SCGHVRZ EPn E2021-07-17 02:23:420.6y0384289
IIEES SCBSRNZ EPn E2021-07-17 02:23:43-0.7y0401113
IIEES SCKRBRZ EPn E2021-07-17 02:23:450.6y0404158
IIEES SCSHRTZ EPn E2021-07-17 02:23:530y047686
IIEES SCMRVTZ EPn E2021-07-17 02:23:53-0.8y048410
IIEES SCKHMZZ EPn E2021-07-17 02:23:47-6.7n4486275
IIEES SCTBJMZ EPn E2021-07-17 02:23:590.5y051966
IIEES SCGZVZ EPn E2021-07-17 02:24:04-0.3y0564306
