Map Region : lat:-  lon:-

West   East
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Date & Time (UTC) 2021-07-30 11:55:19.6
Date & Time (Local) 1400/5/8  16:25:19.6

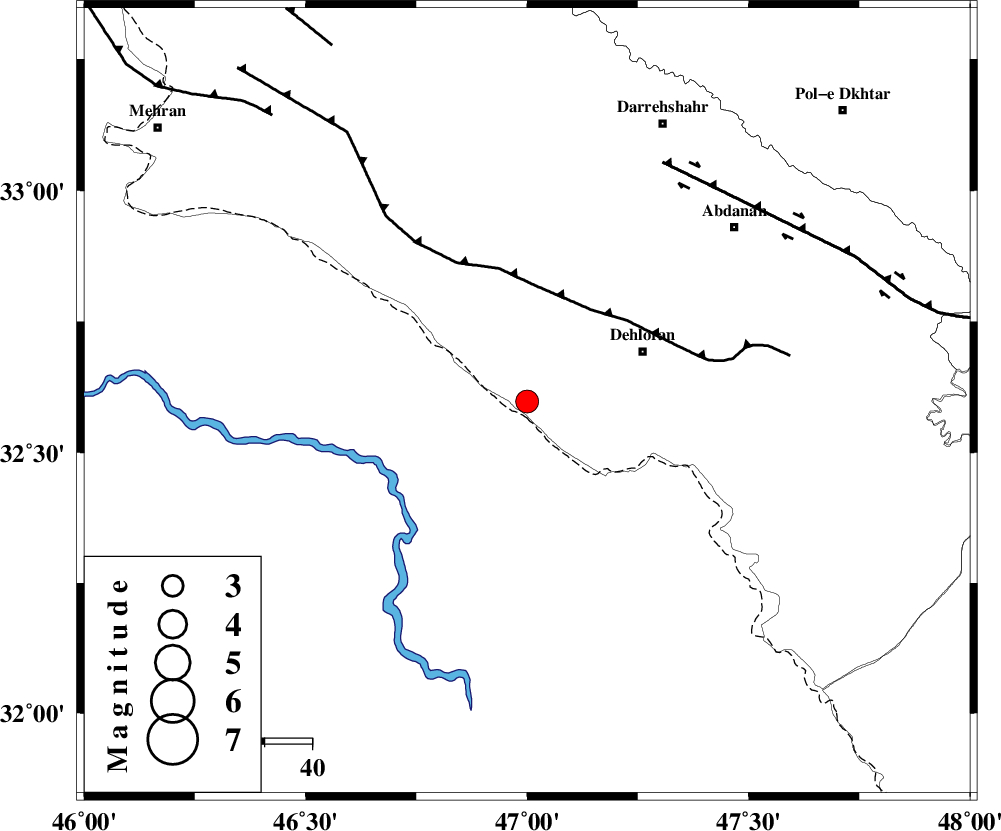

Location Lat:32.597 Lon: 47
Region Ilam Province, 27 km -West of Dehloran
Nearest Cities
25 km South of Bishehzar, Ilam Province
27 km West of Dehloran, Ilam Province
34 km North West of Musian, Ilam Province
57 km South West of Abdanan, Ilam Province
63 km South West of Sarabbagh, Ilam Province
Depth 19 km
Faults within 150 km:
MFF6 (Length: 144 km) , Distance to epicenter: 24 km
BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 58 km
ZFF4 (Length: 128 km) , Distance to epicenter: 81 km
Number of Phases 9
RMS 0.3
Number of Stations 9
Error in Latitude >3.8 km
Error in Longitude 3.8 km
Error in Depth 5.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
164451IIEES SCGTMRZ 0.712021-07-30 11:55:512021-07-31 06:40:00n
164452IIEES SCMAHBZ 0.0512021-07-30 11:56:262021-07-31 06:40:00n
164453IIEES SCNASNZ 0.0412021-07-30 11:56:342021-07-31 06:40:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCILBAZ EPg E2021-07-30 11:55:41-0.2y0136327
IIEES SCGTMRZ EPg E2021-07-30 11:55:510.4y019994
IIEES SCSNGEZ EPn E2021-07-30 11:56:010.2y02797
IIEES SCKHMZZ EPn E2021-07-30 11:56:02-2.5n430465
IIEES SCGHVRZ EPn E2021-07-30 11:56:220.3y044662
IIEES SCKLNJZ EPn E2021-07-30 11:56:25-0.2y0469112
IIEES SCMAHBZ EPn E2021-07-30 11:56:26-0.1y0478346
IIEES SCCHTHZ EPn E2021-07-30 11:56:320y052846
IIEES SCNASNZ EPn E2021-07-30 11:56:34-0.6y054588
