Map Title

Magnitude
:3.5
Date & Time (UTC) 2021-08-04 01:41:46.4
Date & Time (Local) 1400/5/13  06:11:46.4

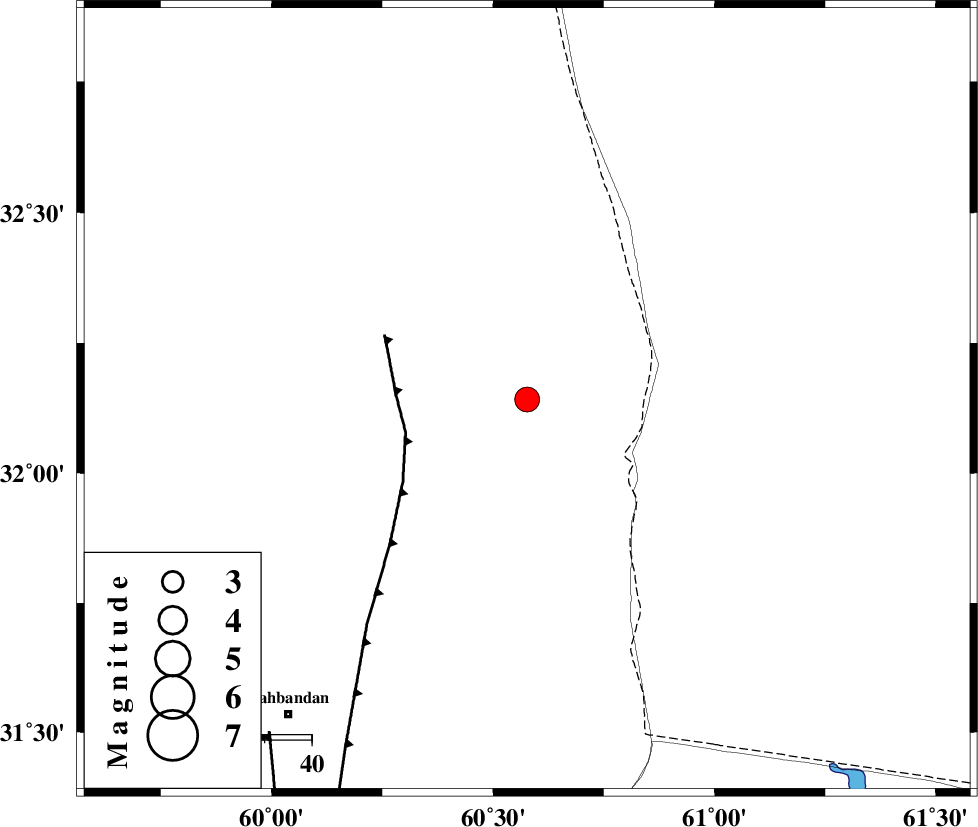

Location Lat:32.141 Lon: 60.577
Region Khorasan(south) Province, 85 km North-East of Nehbandan
Nearest Cities
22 km South of Dorj, Khorasan(south) Province
65 km North East of Shusef, Khorasan(south) Province
81 km South East of Tabas masina, Khorasan(south) Province
85 km North East of Nehbandan, Khorasan(south) Province
87 km South East of Salmabad, Khorasan(south) Province
Depth 12 km
Agency
Faults within 150 km:
E_NEH_F (Length: 148 km) , Distance to epicenter: 27 km
SEFIDABAD_F (Length: 26 km) , Distance to epicenter: 84 km
W_NEH_F (Length: 158 km) , Distance to epicenter: 90 km
Number of Phases 13
RMS 0.3
Number of Stations 13
Error in Latitude >1.3 km
Error in Longitude 1.3 km
Error in Depth 7.1 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
164640IIEES SCSHRTZ 0.812021-08-04 01:42:132021-08-04 08:03:00n
164641IIEES SCTBJMZ 0.512021-08-04 01:42:372021-08-04 08:03:00n
164642IIEES SCTABSZ 0.112021-08-04 01:42:392021-08-04 08:03:00n
164643IIEES SCKRBRZ 0.212021-08-04 01:42:482021-08-04 08:03:00n
164644IIEES SCKAGHZ 0.0312021-08-04 01:43:012021-08-04 08:03:00n
164645IIEES SCSRVNZ 0.0512021-08-04 01:43:032021-08-04 08:03:00n
164646IIEES SCYZKHZ 0.0412021-08-04 01:43:042021-08-04 08:03:00n
164647IIEES SCABGHZ 0.0112021-08-04 01:43:262021-08-04 08:03:00n
164648IIEES SCMRVTZ 0.0112021-08-04 01:43:262021-08-04 08:03:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBSRNZ EPg E2021-08-04 01:42:08-0.9y0138262
IIEES SCSHRTZ EPg E2021-08-04 01:42:13-0.2y0169351
IIEES SCTBJMZ EPn E2021-08-04 01:42:37-0.2y0348356
IIEES SCTABSZ EPn E2021-08-04 01:42:390.2y0364297
IIEES SCKRBRZ EPn E2021-08-04 01:42:480.2y0436237
IIEES SCKAGHZ EPn E2021-08-04 01:43:010.4y0535354
IIEES SCSRVNZ EPn E2021-08-04 01:43:03-0.1y0554161
IIEES SCYZKHZ EPn E2021-08-04 01:43:04-0.5y0565273
IIEES SCMEHZ EPn E2021-08-04 01:43:05-0.3y0571262
IIEES SCSHROZ EPn E2021-08-04 01:43:08-0.3y0601316
IIEES SCABGHZ EPn E2021-08-04 01:43:260.3y0736314
IIEES SCMRVTZ EPn E2021-08-04 01:43:261y0737326
IIEES SCKLNJZ EPn E2021-08-04 01:44:2544.1y0862262
