Date & Time (UTC) 2021-08-31 05:13:13.0
Date & Time (Local) 1400/6/9  09:43:13.0

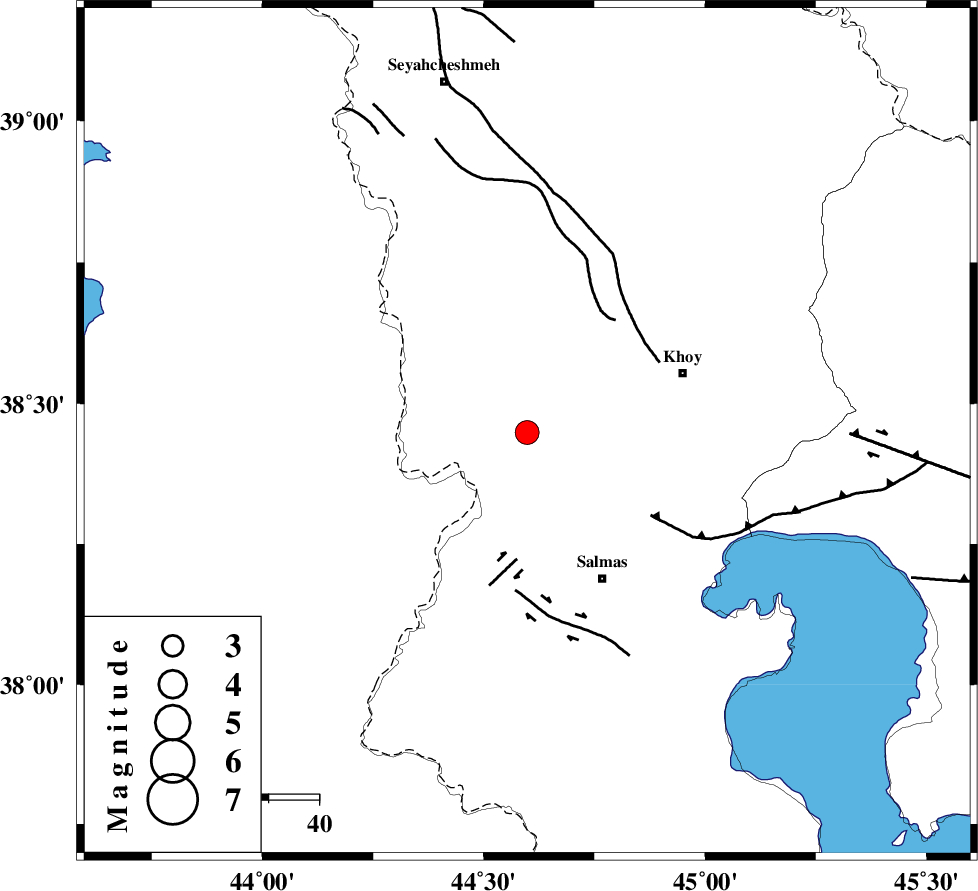

Location Lat:38.449 Lon: 44.598
Region Azarbaijan Gharbi Province, 32 km North-West of Salmas
Nearest Cities
16 km East of Gatur, Azarbaijan Gharbi Province
21 km North West of Saylab, Azarbaijan Gharbi Province
21 km West of Beyk sofla, Azarbaijan Gharbi Province
24 km South East of Baleh sur-e sofla, Azarbaijan Gharbi Province
28 km North West of Quruq, Azarbaijan Gharbi Province
Depth 12 km
Faults within 150 km:
SALMAS (Length: 20 km) , Distance to epicenter: 25 km
KHOY (Length: 100 km) , Distance to epicenter: 28 km
N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 29 km
Number of Phases 13
RMS 0.3
Number of Stations 13
Error in Latitude >5.2 km
Error in Longitude 5.2 km
Error in Depth 5.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
165023IIEES SCMRDZ 512021-08-31 05:13:302021-09-01 04:21:00n
165024IIEES SCAZRZ 512021-08-31 05:13:372021-09-01 04:21:00n
165025IIEES SCMAHBZ 0.412021-08-31 05:13:472021-09-01 04:21:00n
165026IIEES SCGRMIZ 0.112021-08-31 05:13:572021-09-01 04:21:00n
165027IIEES SCZNJKZ 0.0412021-08-31 05:14:132021-09-01 04:21:00n
165028IIEES SCSNGEZ 0.0612021-08-31 05:14:162021-09-01 04:21:00n
165029IIEES SCGIDEZ 0.0912021-08-31 05:14:222021-09-01 04:21:00n
165030IIEES SCGZVZ 0.0412021-08-31 05:14:292021-09-01 04:21:00n
165031IIEES SCILBAZ 0.0212021-08-31 05:14:292021-09-01 04:21:00n
165032IIEES SCGTMRZ 0.0212021-08-31 05:14:572021-09-01 04:21:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMRDZ EPg E2021-08-31 05:13:30-0.1y010173
IIEES SCAZRZ EPg E2021-08-31 05:13:37-0.1y0149125
IIEES SCMAHBZ EPn E2021-08-31 05:13:470.2y0211152
IIEES SCGRMIZ EPn E2021-08-31 05:13:570.2y029082
IIEES SCZNJKZ EPn E2021-08-31 05:14:130.9y0412119
IIEES SCSNGEZ EPn E2021-08-31 05:14:160.1y0446147
IIEES SCGIDEZ EPn E2021-08-31 05:14:220y0491110
IIEES SCQABGZ EPn E2021-08-31 05:14:4214.6n4538124
IIEES SCGZVZ EPn E2021-08-31 05:14:290.1y0548115
IIEES SCILBAZ EPn E2021-08-31 05:14:29-0.1y0555165
IIEES SCGTMRZ EPn E2021-08-31 05:14:57-0.4y0780148
IIEES SCGLOZ EPn E2021-08-31 05:15:05-0.5y0845105
IIEES SCMRVTZ EPn E2021-08-31 05:15:25-0.9y0101295
