Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
:3
Date & Time (UTC) 2021-09-10 01:22:22.0
Date & Time (Local) 1400/6/19  05:52:22.0

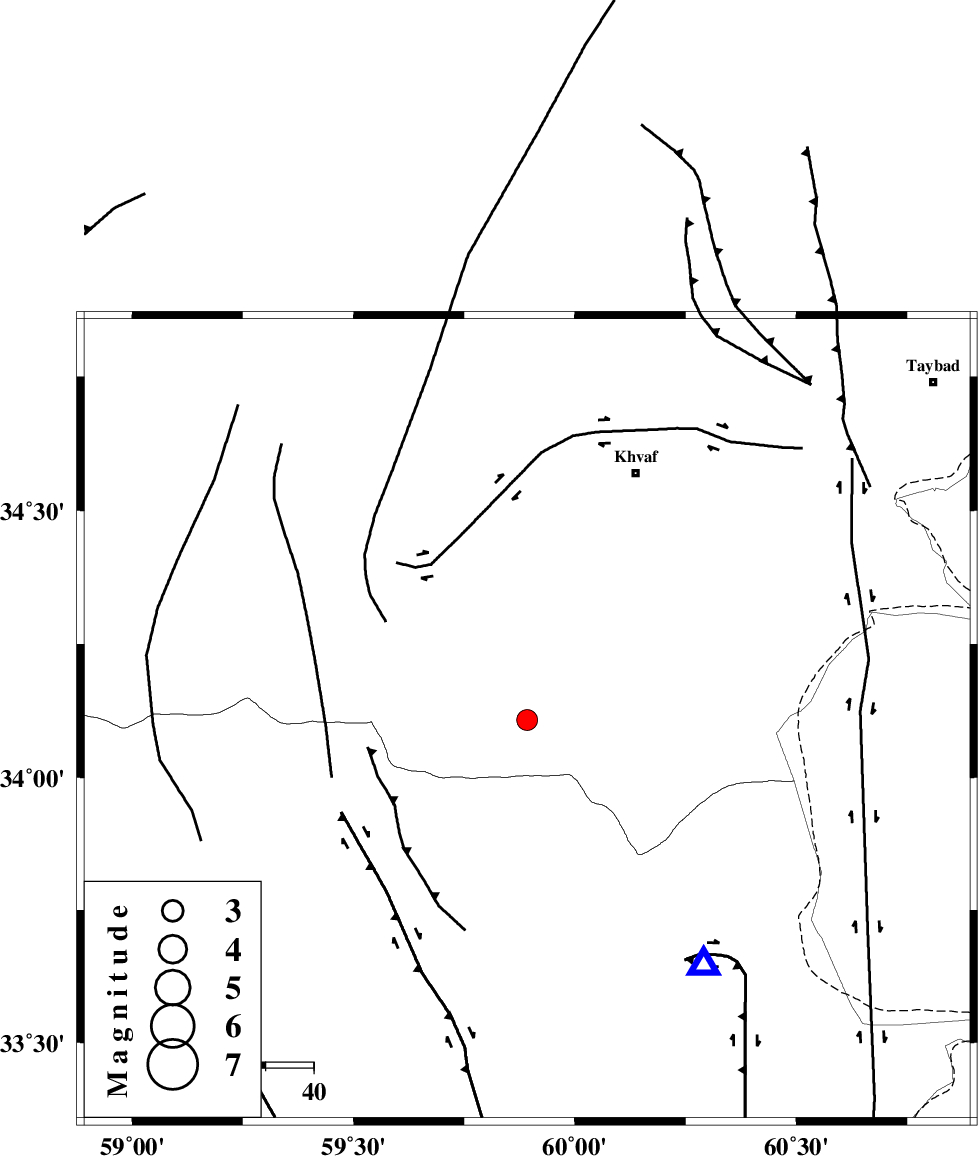

Location Lat:34.108 Lon: 59.892
Region Khorasan(center) Province, 56 km South-West of Khaf
Nearest Cities
19 km South of Ebrahimi, Khorasan(center) Province
22 km West of Pasgah-e chazul, Khorasan(center) Province
26 km South West of Biasabad, Khorasan(center) Province
27 km South of Zuzan, Khorasan(center) Province
29 km South of Qasemabad, Khorasan(center) Province
Depth 12 km
Agency
Faults within 150 km:
DASHT_E_BAYAZ_F (Length: 177 km) , Distance to epicenter: 9 km
ABRIZ_F (Length: 114 km) , Distance to epicenter: 9 km
JANGAL_F (Length: 111 km) , Distance to epicenter: 41 km
Number of Phases 10
RMS 0.4
Number of Stations 10
Error in Latitude >2.1 km
Error in Longitude 2.1 km
Error in Depth 10.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
165098IIEES SCSHRTZ 212021-09-10 01:22:332021-09-11 04:47:00n
165099IIEES SCSHRTZ 212021-09-10 01:22:412021-09-11 04:47:00n
165100IIEES SCMRVTZ 0.0112021-09-10 01:23:342021-09-11 04:47:00n
165101IIEES SCYZKHZ 0.0212021-09-10 01:23:362021-09-11 04:47:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCSHRTZ EPg E2021-09-10 01:22:33-0.2y063144
IIEES SCSHRTZ ESg E2021-09-10 01:22:41-0.3y063144
IIEES SCTBJMZ EPg E2021-09-10 01:22:440.1y013517
IIEES SCTBJMZ ESg E2021-09-10 01:23:010.2y013517
IIEES SCBSRNZ EPn E2021-09-10 01:23:010.4y0248197
IIEES SCTABSZ EPn E2021-09-10 01:23:030.6y0262259
IIEES SCKAGHZ EPn E2021-09-10 01:23:134.2n43141
IIEES SCMRVTZ EPn E2021-09-10 01:23:34-0.6y0523319
IIEES SCYZKHZ EPn E2021-09-10 01:23:360.9y0529249
IIEES SCABGHZ EPn E2021-09-10 01:23:33-4.7n4547302
