Date & Time (UTC) 2021-09-08 18:45:52.4
Date & Time (Local) 1400/6/17  23:15:52.4

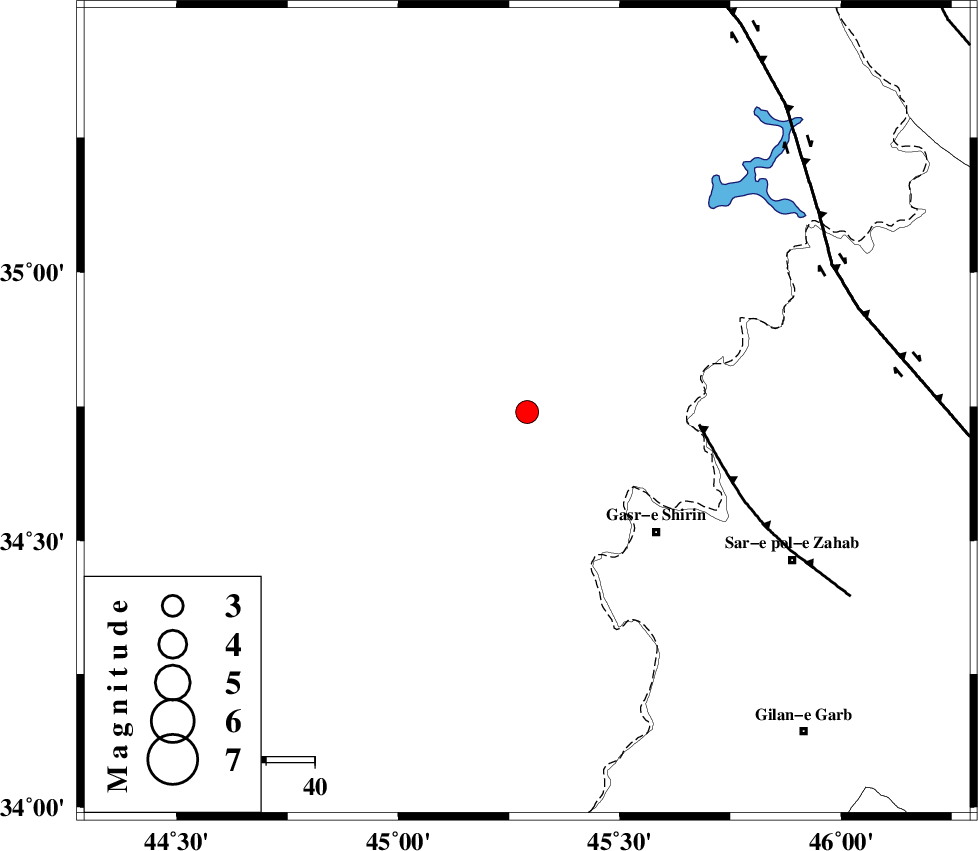

Location Lat:34.74 Lon: 45.291
Region Iraq, 37 km North-West of Qasr-E-Shirin
Nearest Cities
37 km North West of Qasr-E-Shirin, Kermanshah Province
39 km West of Tappeh rash, Kermanshah Province
41 km North West of Aqabarar, Kermanshah Province
41 km North West of Khosravi, Kermanshah Province
43 km North West of Seyyed sohrab, Kermanshah Province
Depth 19 km
Faults within 150 km:
MFF8 (Length: 48 km) , Distance to epicenter: 36 km
HZF4 (Length: 492 km) , Distance to epicenter: 70 km
ZFF4 (Length: 128 km) , Distance to epicenter: 91 km
Number of Phases 11
RMS 0.3
Number of Stations 11
Error in Latitude >2.9 km
Error in Longitude 2.9 km
Error in Depth 3.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
165129IIEES SCSRSLZ 112021-09-08 18:46:192021-09-11 07:49:00n
165130IIEES SCZNJKZ 0.0412021-09-08 18:46:462021-09-11 07:49:00n
165131IIEES SCGTMRZ 0.0712021-09-08 18:46:532021-09-11 07:49:00n
165132IIEES SCMRDZ 0.0912021-09-08 18:46:552021-09-11 07:49:00n
165133IIEES SCGZVZ 0.0412021-09-08 18:47:002021-09-11 07:49:00n
165134IIEES SCGRMIZ 0.0212021-09-08 18:47:022021-09-11 07:49:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCILBAZ EPg E2021-09-08 18:46:160.1y0150146
IIEES SCSRSLZ EPg E2021-09-08 18:46:190.2y01645
IIEES SCSRSLZ ESg E2021-09-08 18:46:401.4n41645
IIEES SCSNGEZ EPg E2021-09-08 18:46:23-0.1y019278
IIEES SCMAHBZ EPn E2021-09-08 18:46:27-0.8y02289
IIEES SCZNJKZ EPn E2021-09-08 18:46:460.1y037455
IIEES SCGTMRZ EPn E2021-09-08 18:46:53-0.3y0435125
IIEES SCMRDZ EPn E2021-09-08 18:46:550.6y04425
IIEES SCKHMZZ EPn E2021-09-08 18:46:37-17.3n4445104
IIEES SCGZVZ EPn E2021-09-08 18:47:000.5y048268
IIEES SCGRMIZ EPn E2021-09-08 18:47:02-0.1y050827
