Map Title

Magnitude
:4.1
Date & Time (UTC) 2021-09-06 12:20:17.5
Date & Time (Local) 1400/6/15  16:50:17.5

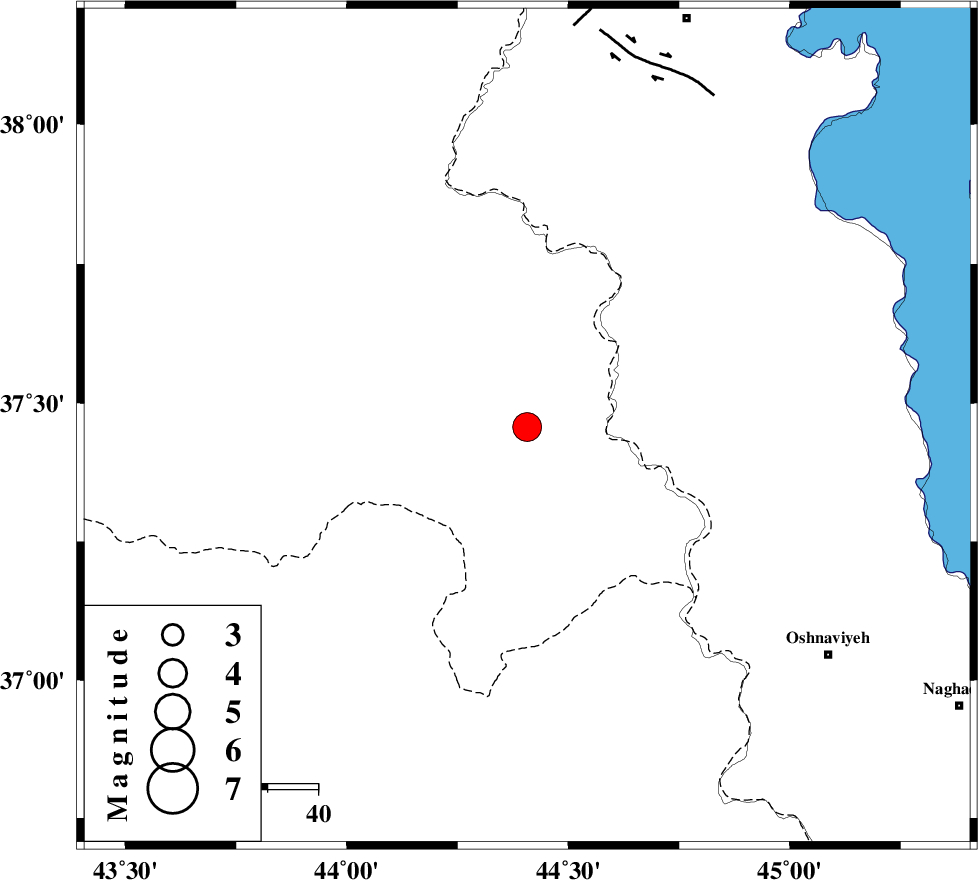

Location Lat:37.457 Lon: 44.407
Region Turkey, 59 km -West of Orumiyeh
Nearest Cities
37 km South West of Sarv, Azarbaijan Gharbi Province
37 km South West of Movana, Azarbaijan Gharbi Province
39 km North West of Silvaneh, Azarbaijan Gharbi Province
41 km North West of Razhan, Azarbaijan Gharbi Province
41 km South West of Ravand sofla, Azarbaijan Gharbi Province
Depth 12 km
Agency
Faults within 150 km:
SALMAS (Length: 20 km) , Distance to epicenter: 76 km
PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 100 km
N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 102 km
Number of Phases 12
RMS 0.3
Number of Stations 12
Error in Latitude >2.3 km
Error in Longitude 2.3 km
Error in Depth 5.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
165145IIEES SCMAHBZ 512021-09-06 12:20:402021-09-11 08:49:00n
165146IIEES SCSRSLZ 712021-09-06 12:20:452021-09-11 08:49:00n
165147IIEES SCMRDZ 612021-09-06 12:20:472021-09-11 08:49:00n
165148IIEES SCGRMIZ 0.412021-09-06 12:21:072021-09-11 08:49:00n
165149IIEES SCZNJKZ 0.312021-09-06 12:21:132021-09-11 08:49:00n
165150IIEES SCILBAZ 0.412021-09-06 12:21:212021-09-11 08:49:00n
165151IIEES SCGIDEZ 0.412021-09-06 12:21:262021-09-11 08:49:00n
165152IIEES SCGTMRZ 0.212021-09-06 12:21:522021-09-11 08:49:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMAHBZ EPg E2021-09-06 12:20:40-0.5y0138124
IIEES SCAZRZ EPg E2021-09-06 12:20:410y014180
IIEES SCSRSLZ EPg E2021-09-06 12:20:450.5y0166146
IIEES SCMRDZ EPg E2021-09-06 12:20:470y018039
IIEES SCMAKUZ EPn E2021-09-06 12:20:51-0.1y02127
IIEES SCGRMIZ EPn E2021-09-06 12:21:070.1y034064
IIEES SCSNGEZ EPn E2021-09-06 12:21:120.9y0372135
IIEES SCZNJKZ EPn E2021-09-06 12:21:13-0.3y0390103
IIEES SCILBAZ EPn E2021-09-06 12:21:21-0.3y0456159
IIEES SCGIDEZ EPn E2021-09-06 12:21:260.3y048597
IIEES SCGTMRZ EPn E2021-09-06 12:21:52-0.3y0700142
IIEES SCSHROZ EPn E2021-09-06 12:22:21-14.1n4104999
