Date & Time (UTC) 2021-09-14 09:33:21.3
Date & Time (Local) 1400/6/23  14:03:21.3

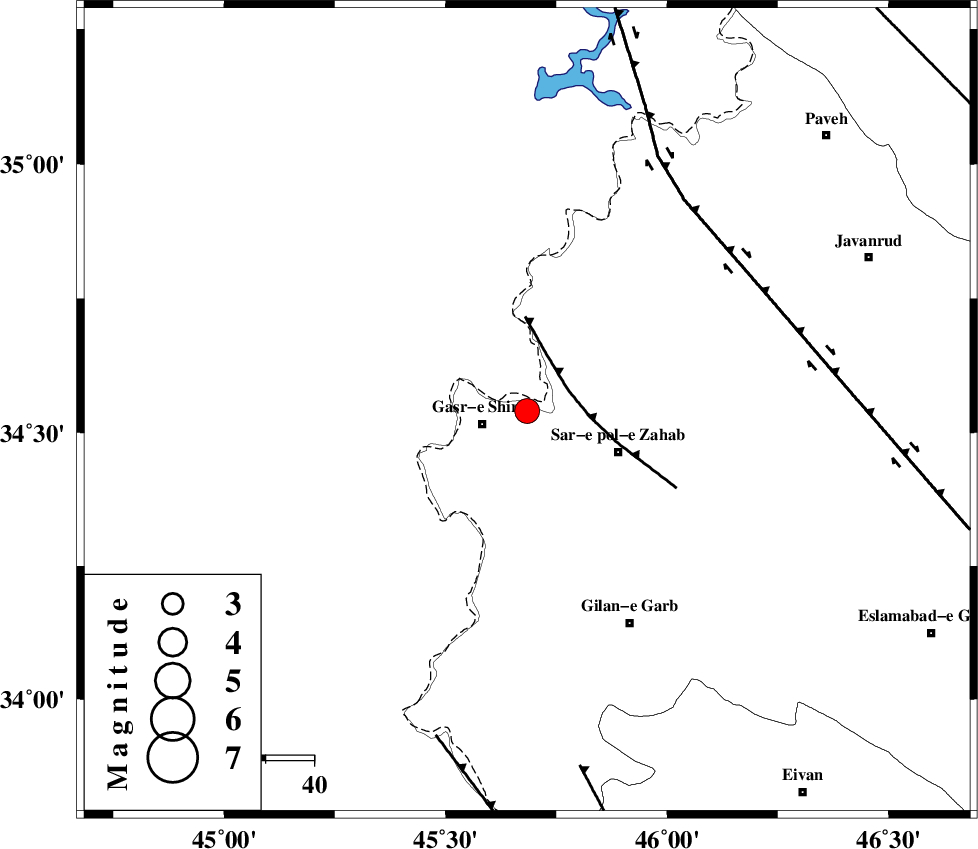

Location Lat:34.54 Lon: 45.684
Region Kermanshah Province, 10 km -East of Qasr-E-Shirin
Nearest Cities
2 km of Aqabarar, Kermanshah Province
8 km of Mirmiru, Kermanshah Province
10 km North East of Qasr-E-Shirin, Kermanshah Province
11 km North of Qareh belagh, Kermanshah Province
13 km North of Seyyed sohrab, Kermanshah Province
Depth 12 km
Faults within 150 km:
MFF8 (Length: 48 km) , Distance to epicenter: 10 km
HZF4 (Length: 492 km) , Distance to epicenter: 54 km
ZFF4 (Length: 128 km) , Distance to epicenter: 70 km
Number of Phases 10
RMS 0.2
Number of Stations 10
Error in Latitude >1.6 km
Error in Longitude 1.6 km
Error in Depth 2.9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
165228IIEES SCSRSLZ 112021-09-14 09:33:512021-09-15 04:55:00n
165229IIEES SCSRSLZ 112021-09-14 09:34:142021-09-15 04:55:00n
165230IIEES SCGTMRZ 0.0912021-09-14 09:34:172021-09-15 04:55:00n
165231IIEES SCMRDZ 0.0712021-09-14 09:34:262021-09-15 04:55:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCILBAZ EPg E2021-09-14 09:33:400.1y0112155
IIEES SCSNGEZ EPg E2021-09-14 09:33:480y016468
IIEES SCSRSLZ EPg E2021-09-14 09:33:510y0187353
IIEES SCSRSLZ ESg E2021-09-14 09:34:140.7y0187353
IIEES SCMAHBZ EPn E2021-09-14 09:34:000y02470
IIEES SCMAHBZ ES E2021-09-14 09:34:280y02470
IIEES SCZNJKZ EPn E2021-09-14 09:34:140.2y036049
IIEES SCQABGZ EPn E2021-09-14 09:34:160.2y037870
IIEES SCGTMRZ EPn E2021-09-14 09:34:17-0.2y0393126
IIEES SCMRDZ EPn E2021-09-14 09:34:26-0.6y04630
