Map Region : lat:-  lon:-

West   East
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Date & Time (UTC) 2021-09-23 16:09:05.0
Date & Time (Local) 1400/7/1  19:39:05.0

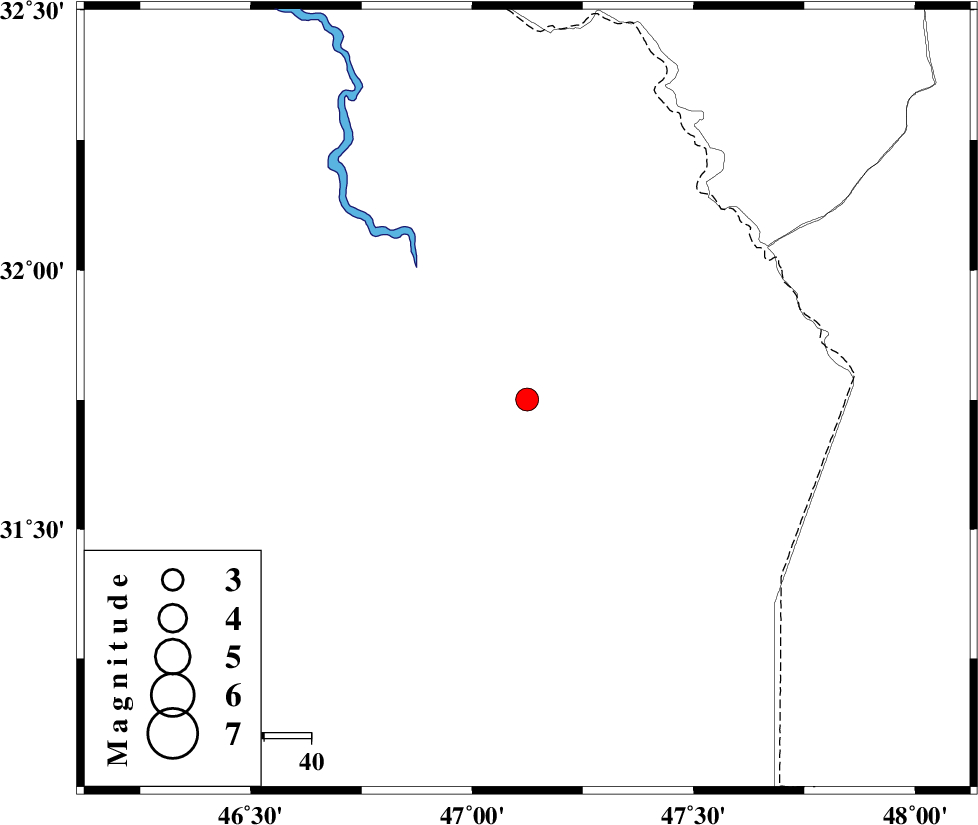

Location Lat:31.751 Lon: 47.124
Region Iraq
Nearest Cities
81 km North West of Bostan, Khoozestan Province
91 km South West of Musian, Ilam Province
96 km North West of Hoveizeh, Khoozestan Province
103 km North West of Susangerd, Khoozestan Province
106 km South West of Dehloran, Ilam Province
Depth 12 km
Faults within 150 km:
AHVAZ_F (Length: 99 km) , Distance to epicenter: 100 km
MFF6 (Length: 144 km) , Distance to epicenter: 106 km
BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 135 km
Number of Phases 9
RMS 0.5
Number of Stations 9
Error in Latitude >7 km
Error in Longitude 7 km
Error in Depth 17.9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
165289IIEES SCGTMRZ 0.412021-09-23 16:09:382021-09-25 05:48:00n
165290IIEES SCSNGEZ 0.0612021-09-23 16:09:582021-09-25 05:48:00n
165291IIEES SCSRSLZ 0.0312021-09-23 16:10:182021-09-25 05:48:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCGTMRZ EPn E2021-09-23 16:09:380.1y020467
IIEES SCILBAZ EPn E2021-09-23 16:09:40-0.7y0225338
IIEES SCKHMZZ EPn E2021-09-23 16:09:54-1.9n434650
IIEES SCSNGEZ EPn E2021-09-23 16:09:58-0.3y03713
IIEES SCKLNJZ EPn E2021-09-23 16:10:06-0.5y0433101
IIEES SCGHVRZ EPn E2021-09-23 16:10:140.8y048952
IIEES SCQABGZ EPn E2021-09-23 16:10:140.2y049427
IIEES SCSRSLZ EPn E2021-09-23 16:10:180.8y0519342
IIEES SCNASNZ EPn E2021-09-23 16:10:21-0.2y054878
