Date & Time (UTC) 2021-10-03 10:03:19.1
Date & Time (Local) 1400/7/11  13:33:19.1

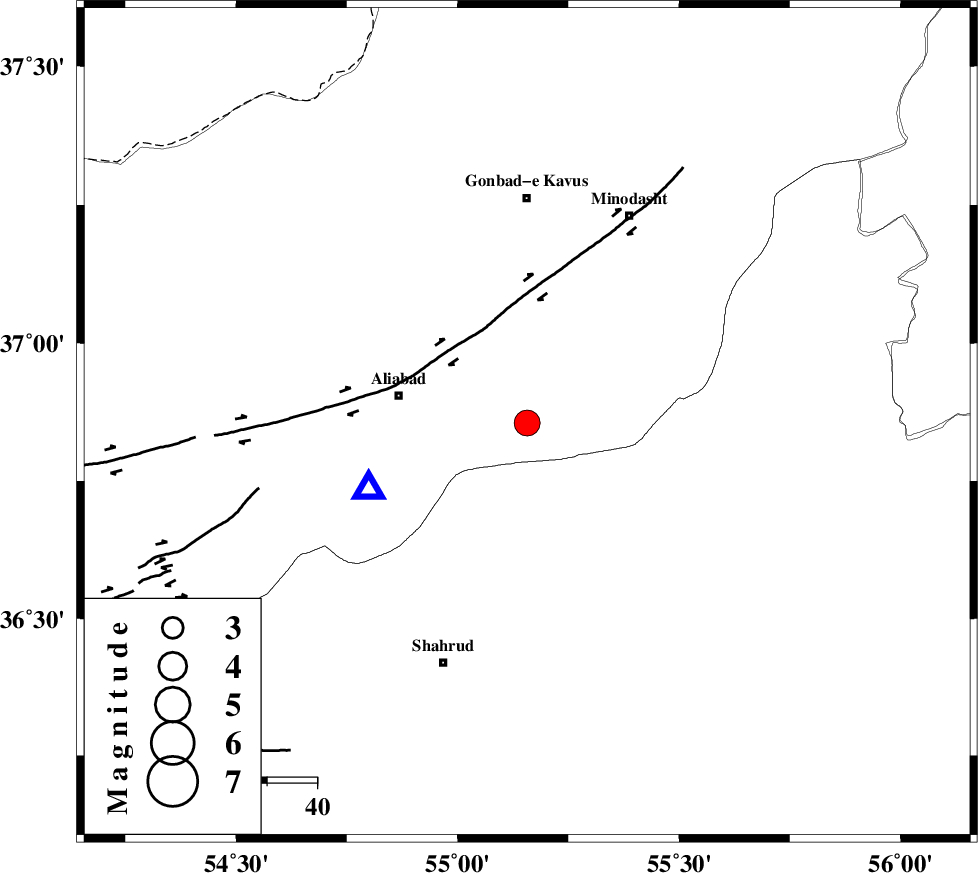

Location Lat:36.855 Lon: 55.157
Region Golestan Province, 18 km South of Ramian
Nearest Cities
18 km South of Ramian, Golestan Province
22 km South of Deland, Golestan Province
23 km South East of Khanbebin, Golestan Province
24 km South of Khanduz, Golestan Province
25 km North of Qaleh-ye nokharqan, Semnan Province
Depth 15 km
Faults within 150 km:
SHAVAR_F (Length: 87 km) , Distance to epicenter: 10 km
KHAZAR_F (Length: 523 km) , Distance to epicenter: 24 km
ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 25 km
Number of Phases 16
RMS 0.3
Number of Stations 16
Error in Latitude >1 km
Error in Longitude 1 km
Error in Depth 2.3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
165492IIEES SCSHROZ 112021-10-03 10:03:392021-10-03 10:42:00n
165493IIEES SCMRVTZ 212021-10-03 10:03:392021-10-03 10:42:00n
165494IIEES SCANJZ 0.512021-10-03 10:03:502021-10-03 10:42:00n
165495IIEES SCCHTHZ 0.312021-10-03 10:04:132021-10-03 10:42:00n
165496IIEES SCTABSZ 0.212021-10-03 10:04:162021-10-03 10:42:00n
165497IIEES SCGHVRZ 0.412021-10-03 10:04:212021-10-03 10:42:00n
165498IIEES SCGZVZ 0.512021-10-03 10:04:212021-10-03 10:42:00n
165499IIEES SCYZKHZ 0.0912021-10-03 10:04:282021-10-03 10:42:00n
165500IIEES SCTBJMZ 0.0912021-10-03 10:04:282021-10-03 10:42:00n
165501IIEES SCNASNZ 0.0712021-10-03 10:04:282021-10-03 10:42:00n
165502IIEES SCSHRTZ 0.0512021-10-03 10:04:392021-10-03 10:42:00n
165503IIEES SCKLNJZ 0.0312021-10-03 10:04:572021-10-03 10:42:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCABGHZ EPg E2021-10-03 10:03:25-0.3y035247
IIEES SCSHROZ EPg E2021-10-03 10:03:390.5y0121141
IIEES SCMRVTZ EPg E2021-10-03 10:03:390.1y012243
IIEES SCGLOZ EPg E2021-10-03 10:03:39-0.1y0125252
IIEES SCANJZ EPg E2021-10-03 10:03:500y0190216
IIEES SCCHTHZ EPn E2021-10-03 10:04:130.1y0377254
IIEES SCTABSZ EPn E2021-10-03 10:04:160.3y0398153
IIEES SCKAGHZ EPn E2021-10-03 10:04:19-0.3y042889
IIEES SCGHVRZ EPn E2021-10-03 10:04:210.1y0442233
IIEES SCGZVZ EPn E2021-10-03 10:04:21-0.3y0445263
IIEES SCYZKHZ EPn E2021-10-03 10:04:280y0498186
IIEES SCTBJMZ EPn E2021-10-03 10:04:28-0.2y0498111
IIEES SCNASNZ EPn E2021-10-03 10:04:28-0.4y0499206
IIEES SCQABGZ EPn E2021-10-03 10:04:310.6y0517256
IIEES SCSHRTZ EPn E2021-10-03 10:04:39-0.7y0587127
IIEES SCKLNJZ EPn E2021-10-03 10:04:570.4y0728207
