Magnitude
:5.1
Date & Time (UTC) 2022-09-12 23:37:04.1
Date & Time (Local) 1401/6/22  04:07:04.1

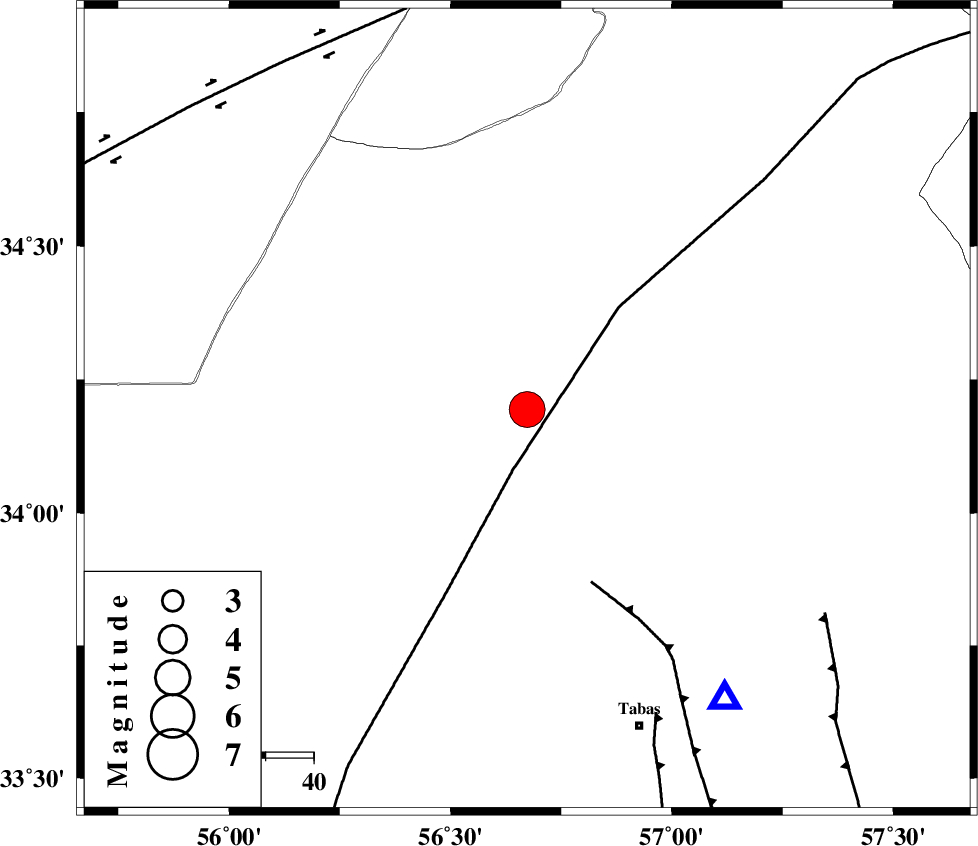

Location Lat:34.194 Lon: 56.673
Region Yazd Province, 70 km North-West of Tabas
Nearest Cities
29 km South West of Eshqabad, Yazd Province
45 km North East of Halvan, Yazd Province
53 km North West of Jokhvah, Yazd Province
64 km North West of Qaniabad, Khorasan(center) Province
68 km North West of Reqqeh, Khorasan(center) Province
Depth 12 km
Agency
Faults within 150 km:
NAINI_F (Length: 342 km) , Distance to epicenter: 13 km
TABAS_F1 (Length: 91 km) , Distance to epicenter: 38 km
TABAS_F2 (Length: 67 km) , Distance to epicenter: 69 km
Number of Phases 33
RMS 0.4
Number of Stations 33
Error in Latitude >0.8 km
Error in Longitude 0.8 km
Error in Depth 7.6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
173458IIEES SCTABSZ 9012022-09-12 23:37:172022-09-13 03:57:00n
173459IIEES SCYZKHZ 3012022-09-12 23:37:472022-09-13 03:57:00n
173460IIEES SCBSRNZ 712022-09-12 23:37:542022-09-13 03:57:00n
173461IIEES SCSHRTZ 2012022-09-12 23:37:542022-09-13 03:57:00n
173462IIEES SCMRVTZ 212022-09-12 23:38:002022-09-13 03:57:00n
173463IIEES SCBJRDZ 212022-09-12 23:38:002022-09-13 03:57:00n
173464IIEES SCKAGHZ 212022-09-12 23:38:052022-09-13 03:57:00n
173465IIEES SCDAMVZ 512022-09-12 23:38:082022-09-13 03:57:00n
173466IIEES SCKRBRZ 912022-09-12 23:38:092022-09-13 03:57:00n
173467IIEES SCGHVRZ 812022-09-12 23:38:142022-09-13 03:57:00n
173468IIEES SCCHTHZ 112022-09-12 23:38:192022-09-13 03:57:00n
173469IIEES SCASAOZ 212022-09-12 23:38:272022-09-13 03:57:00n
173470IIEES SCKHMZZ 112022-09-12 23:38:292022-09-13 03:57:00n
173471IIEES SCGIDEZ 0.412022-09-12 23:38:372022-09-13 03:57:00n
173472IIEES SCGTMRZ 112022-09-12 23:38:432022-09-13 03:57:00n
173473IIEES SCGHIRZ 0.112022-09-12 23:38:432022-09-13 03:57:00n
173474IIEES SCBNDSZ 0.612022-09-12 23:38:462022-09-13 03:57:00n
173475IIEES SCAHRMZ 0.112022-09-12 23:38:492022-09-13 03:57:00n
173476IIEES SCKHRKZ 0.712022-09-12 23:38:532022-09-13 03:57:00n
173477IIEES SCLMD1Z 0.812022-09-12 23:38:552022-09-13 03:57:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCTABSZ EPg E2022-09-12 23:37:170.9y073146
IIEES SCSHROZ EPn E2022-09-12 23:37:21-16.9n4210343
IIEES SCYZKHZ EPn E2022-09-12 23:37:470.3y0279224
IIEES SCABGHZ EPn E2022-09-12 23:37:530.5y0329329
IIEES SCBSRNZ EPn E2022-09-12 23:37:540.1y0337137
IIEES SCSHRTZ EPn E2022-09-12 23:37:540.1y0340100
IIEES SCTBJMZ EPn E2022-09-12 23:37:56-0.2y035570
IIEES SCGLOZ EPn E2022-09-12 23:37:592.4n4364315
IIEES SCMRVTZ EPn E2022-09-12 23:38:00-0.1y0388352
IIEES SCBJRDZ EPn E2022-09-12 23:38:00-0.2y039510
IIEES SCKAGHZ EPn E2022-09-12 23:38:050y042644
IIEES SCDAMVZ EPn E2022-09-12 23:38:08-0.2y0458290
IIEES SCKRBRZ EPn E2022-09-12 23:38:09-0.9y0467179
IIEES SCGHVRZ EPn E2022-09-12 23:38:14-0.1y0500274
IIEES SCCHTHZ EPn E2022-09-12 23:38:190.1y0541291
IIEES SCKLNJZ EPn E2022-09-12 23:38:271.6n4594233
IIEES SCASAOZ EPn E2022-09-12 23:38:27-0.9y0613274
IIEES SCKHMZZ EPn E2022-09-12 23:38:290.3y0622265
IIEES SCZHSFZ EPn E2022-09-12 23:38:30-0.6y0639143
IIEES SCGIDEZ EPn E2022-09-12 23:38:37-0.2y0691296
IIEES SCGTMRZ EPn E2022-09-12 23:38:430.5y0730255
IIEES SCGHIRZ EPn E2022-09-12 23:38:43-0.5y0743208
IIEES SCBNDSZ EPn E2022-09-12 23:38:460.1y0755184
IIEES SCZNJKZ EPn E2022-09-12 23:38:42-6n4776291
IIEES SCAHRMZ EPn E2022-09-12 23:38:49-0.5y0792222
IIEES SCKHRKZ EPn E2022-09-12 23:38:530.8y0814228
IIEES SCLMD1Z EPn E2022-09-12 23:38:550.4y0831204
IIEES SCSNGEZ EPn E2022-09-12 23:38:590.2y0861277
IIEES SCSRVNZ EPn E2022-09-12 23:39:080.6y0931144
IIEES SCGRMIZ EPn E2022-09-12 23:39:07-1.6n4938303
IIEES SCILBAZ EPn E2022-09-12 23:39:11-1.1y0970266
IIEES SCSRSLZ EPn E2022-09-12 23:39:22-0.2y01048282
IIEES SCMRDZ EPn E2022-09-12 23:39:28-0.9y01104297
