Date & Time (UTC) 2022-10-24 11:21:08.8
Date & Time (Local) 1401/8/2  14:51:08.8

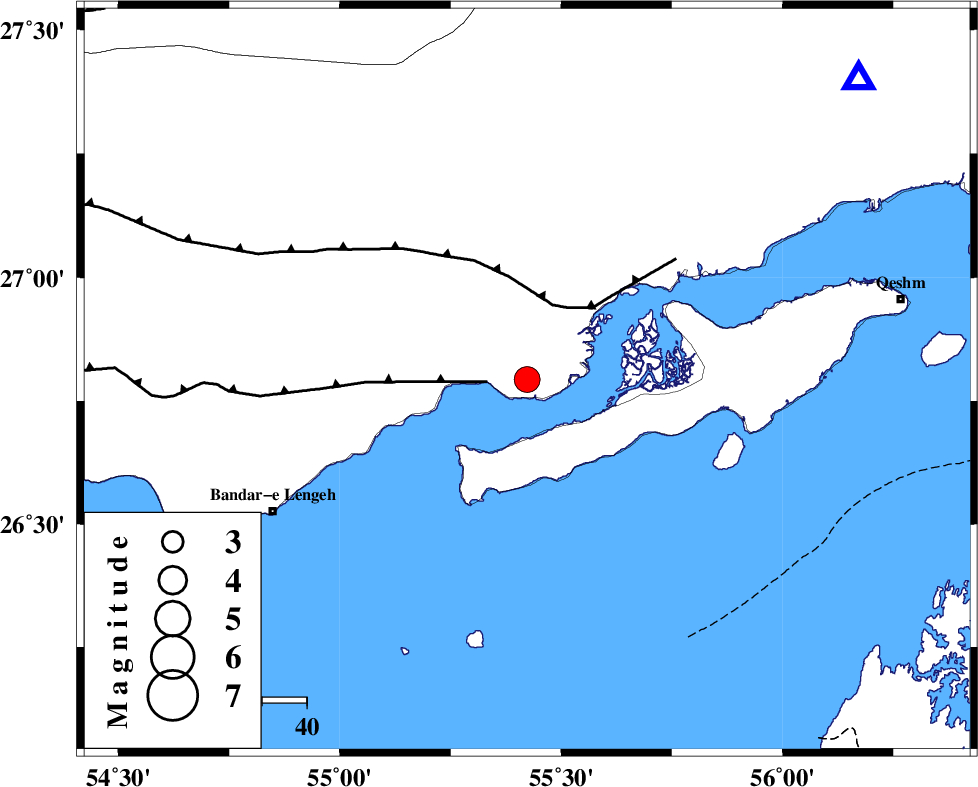

Location Lat:26.793 Lon: 55.423
Region Hormozgan Province, 64 km North-East of Bandar-e lengeh
Nearest Cities
24 km South West of Bandar-e khamir, Hormozgan Province
63 km North West of Suza, Hormozgan Province
64 km North East of Bandar-e lengeh, Hormozgan Province
86 km South West of Qeshm, Hormozgan Province
96 km South West of Bandar-e abbas, Hormozgan Province
Depth 12 km
Faults within 150 km:
ZFF1 (Length: 165 km) , Distance to epicenter: 9 km
MFF1 (Length: 180 km) , Distance to epicenter: 18 km
LAR_F (Length: 99 km) , Distance to epicenter: 109 km
Number of Phases 18
RMS 0.5
Number of Stations 18
Error in Latitude >2.1 km
Error in Longitude 2.1 km
Error in Depth 15.4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
174454IIEES SCBNDSZ 312022-10-24 11:21:252022-10-25 05:20:00n
174455IIEES SCUOSSZ 0.712022-10-24 11:21:432022-10-25 05:20:00n
174456IIEES SCJSSHZ 0.812022-10-24 11:21:442022-10-25 05:20:00n
174457IIEES SCKRBRZ 0.312022-10-24 11:22:032022-10-25 05:20:00n
174458IIEES SCAHRMZ 0.0612022-10-24 11:22:142022-10-25 05:20:00n
174459IIEES SCCHBRZ 0.112022-10-24 11:22:212022-10-25 05:20:00n
174460IIEES SCTAFTZ 0.0812022-10-24 11:22:272022-10-25 05:20:00n
174461IIEES SCYZKHZ 0.0412022-10-24 11:22:352022-10-25 05:20:00n
174462IIEES SCBSRNZ 0.0312022-10-24 11:22:402022-10-25 05:20:00n
174463IIEES SCSRVNZ 0.0212022-10-24 11:22:432022-10-25 05:20:00n
174464IIEES SCNASNZ 0.0312022-10-24 11:22:442022-10-25 05:20:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBNDSZ EPg E2022-10-24 11:21:25-0.1y010048
IIEES SCJSSHZ EPn E2022-10-24 11:21:441.1y0219117
IIEES SCUOSSZ EPn E2022-10-24 11:21:43-0.2y0219159
IIEES SCLMD1Z EPn E2022-10-24 11:21:460.8y0232285
IIEES SCGHIRZ EPn E2022-10-24 11:21:52-0.3y0292304
IIEES SCKRBRZ EPn E2022-10-24 11:22:03-0.1y037720
IIEES SCAHRMZ EPn E2022-10-24 11:22:14-0.5y0467299
IIEES SCMEHZ EPn E2022-10-24 11:22:210.6y0516351
IIEES SCCHBRZ EPn E2022-10-24 11:22:21-0.1y0523105
IIEES SCTAFTZ EPn E2022-10-24 11:22:270.6y0560347
IIEES SCKLNJZ EPn E2022-10-24 11:22:30-0.9y0598321
IIEES SCYZKHZ EPn E2022-10-24 11:22:350.5y0626353
IIEES SCBSRNZ EPn E2022-10-24 11:22:40-0.7y067732
IIEES SCSRVNZ EPn E2022-10-24 11:22:430.7y069584
IIEES SCNASNZ EPn E2022-10-24 11:22:44-0.6y0712339
IIEES SCGTMRZ EPn E2022-10-24 11:23:04-1.1y0877316
IIEES SCRAYNZ EPn E2022-10-24 11:23:25-3.4n41064250
IIEES SCGLOZ EPn E2022-10-24 11:23:320.7y01087352
