Magnitude |
:3.3 |
| Date & Time (UTC) | 2022-11-25 00:30:37.7 |
| Date & Time (Local) | 1401/9/4 04:00:37.7 |

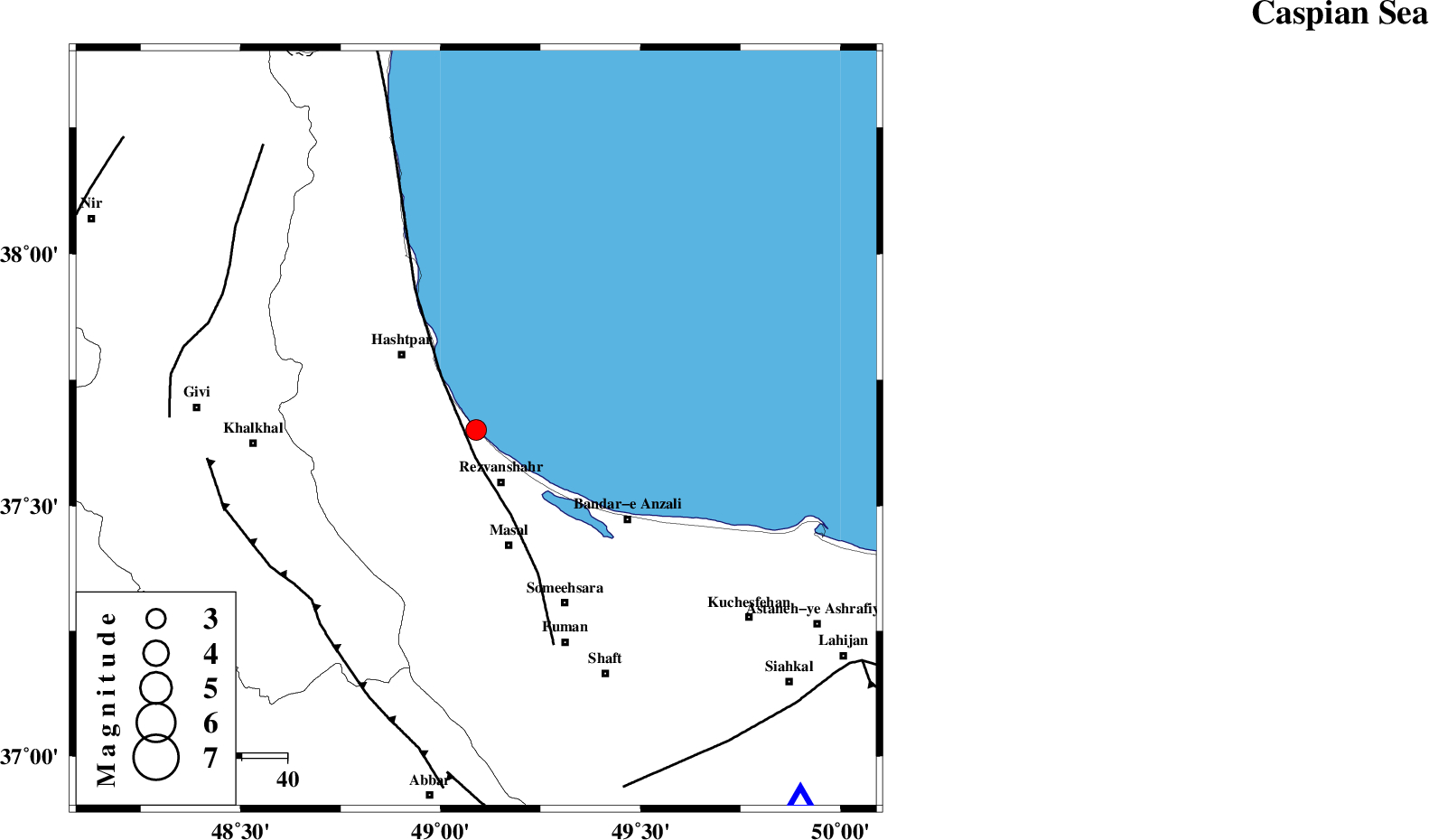

| Location | Lat:37.651 Lon: 49.089 |
| Region | , 13 km North of Rezvanshahr |
Nearest Cities |
|
| 4 km North of Void, Gilan Province | |
| 8 km North of Parrehsar, Gilan Province | |
| 13 km North of Rezvanshahr, Gilan Province | |
| 16 km North of Darsara, Gilan Province | |
| 17 km North West of Kaporchal, Gilan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 6 km | |
| MASULEL_F (Length: 90 km) , Distance to epicenter: 52 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 63 km | |
| Number of Phases | 24 |
| RMS | 0.3 |
| Number of Stations | 24 |
| Error in Latitude | >0.8 km |
| Error in Longitude | 0.8 km |
| Error in Depth | 3.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 175532 | IIEES SC | GRMI | Z | 1 | 1 | 2022-11-25 00:31:05 | 2022-11-26 06:41:00 | n |
| 175533 | IIEES SC | GRMI | Z | 1 | 1 | 2022-11-25 00:31:24 | 2022-11-26 06:41:00 | n |
| 175534 | IIEES SC | HGHA | Z | 0.5 | 1 | 2022-11-25 00:31:16 | 2022-11-26 06:41:00 | n |
| 175535 | IIEES SC | MAHB | Z | 0.2 | 1 | 2022-11-25 00:31:24 | 2022-11-26 06:41:00 | n |
| 175536 | IIEES SC | SNGE | Z | 0.07 | 1 | 2022-11-25 00:31:25 | 2022-11-26 06:41:00 | n |
| 175537 | IIEES SC | SNGE | Z | 0.07 | 1 | 2022-11-25 00:32:01 | 2022-11-26 06:41:00 | n |
| 175538 | IIEES SC | ASAO | Z | 0.1 | 1 | 2022-11-25 00:31:30 | 2022-11-26 06:41:00 | n |
| 175539 | IIEES SC | SRSL | Z | 0.07 | 1 | 2022-11-25 00:31:30 | 2022-11-26 06:41:00 | n |
| 175540 | IIEES SC | GHVR | Z | 0.1 | 1 | 2022-11-25 00:31:35 | 2022-11-26 06:41:00 | n |
| 175541 | IIEES SC | KCHF | Z | 0.06 | 1 | 2022-11-25 00:31:37 | 2022-11-26 06:41:00 | n |
| 175542 | IIEES SC | MAKU | Z | 0.02 | 1 | 2022-11-25 00:31:39 | 2022-11-26 06:41:00 | n |
| 175543 | IIEES SC | KHMZ | Z | 0.04 | 1 | 2022-11-25 00:31:40 | 2022-11-26 06:41:00 | n |
| 175544 | IIEES SC | ABGH | Z | 0.03 | 1 | 2022-11-25 00:31:49 | 2022-11-26 06:41:00 | n |
| 175545 | IIEES SC | GTMR | Z | 0.02 | 1 | 2022-11-25 00:31:56 | 2022-11-26 06:41:00 | n |
| 175546 | IIEES SC | YZKH | Z | 0.01 | 1 | 2022-11-25 00:32:21 | 2022-11-26 06:41:00 | n |
| 175547 | IIEES SC | KLNJ | Z | 0.01 | 1 | 2022-11-25 00:32:21 | 2022-11-26 06:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GIDE | Z | EPg | E | 2022-11-25 00:30:55 | -0.5 | y | 0 | 104 | 141 | ||
| IIEES SC | GIDE | Z | ESg | E | 2022-11-25 00:31:13 | 4.7 | n | 4 | 104 | 141 | ||
| IIEES SC | ZNJK | Z | EPg | E | 2022-11-25 00:30:52 | -4.4 | n | 4 | 114 | 198 | ||
| IIEES SC | GRMI | Z | EPg | E | 2022-11-25 00:31:05 | 0.3 | y | 0 | 166 | 321 | ||
| IIEES SC | GRMI | Z | ESg | E | 2022-11-25 00:31:24 | -0.1 | y | 0 | 166 | 321 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-11-25 00:31:16 | 0.4 | y | 0 | 241 | 185 | ||
| IIEES SC | MAHB | Z | EPn | E | 2022-11-25 00:31:24 | -0.4 | y | 0 | 316 | 252 | ||
| IIEES SC | MRD | Z | EPn | E | 2022-11-25 00:31:25 | 0.2 | y | 0 | 319 | 292 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-11-25 00:31:25 | -0.2 | y | 0 | 324 | 209 | ||
| IIEES SC | SNGE | Z | ES | E | 2022-11-25 00:32:01 | 0.2 | y | 0 | 324 | 209 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-11-25 00:31:30 | 0.3 | y | 0 | 354 | 166 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-11-25 00:31:30 | -0.3 | y | 0 | 363 | 244 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-11-25 00:31:35 | -0.1 | y | 0 | 402 | 151 | ||
| IIEES SC | KCHF | Z | EPn | E | 2022-11-25 00:31:37 | -0.2 | y | 0 | 418 | 206 | ||
| IIEES SC | MAKU | Z | EPn | E | 2022-11-25 00:31:39 | 0.3 | y | 0 | 428 | 296 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-11-25 00:31:40 | 0.2 | y | 0 | 440 | 107 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-11-25 00:31:40 | 0.2 | y | 0 | 441 | 170 | ||
| IIEES SC | GNI | Z | EPn | E | 2022-11-25 00:31:56 | 12.2 | n | 4 | 468 | 306 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-11-25 00:31:49 | -0.3 | y | 0 | 517 | 101 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-11-25 00:31:49 | -0.6 | y | 0 | 517 | 210 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-11-25 00:31:56 | -0.7 | y | 0 | 575 | 180 | ||
| IIEES SC | BJRD | Z | EPn | E | 2022-11-25 00:32:12 | -4.8 | n | 4 | 734 | 90 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-11-25 00:32:21 | 0.3 | y | 0 | 770 | 139 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-11-25 00:32:21 | 0 | y | 0 | 772 | 163 | ||
