Date & Time (UTC) 2023-03-12 02:17:16.6
Date & Time (Local) 1401/12/21  05:47:16.6

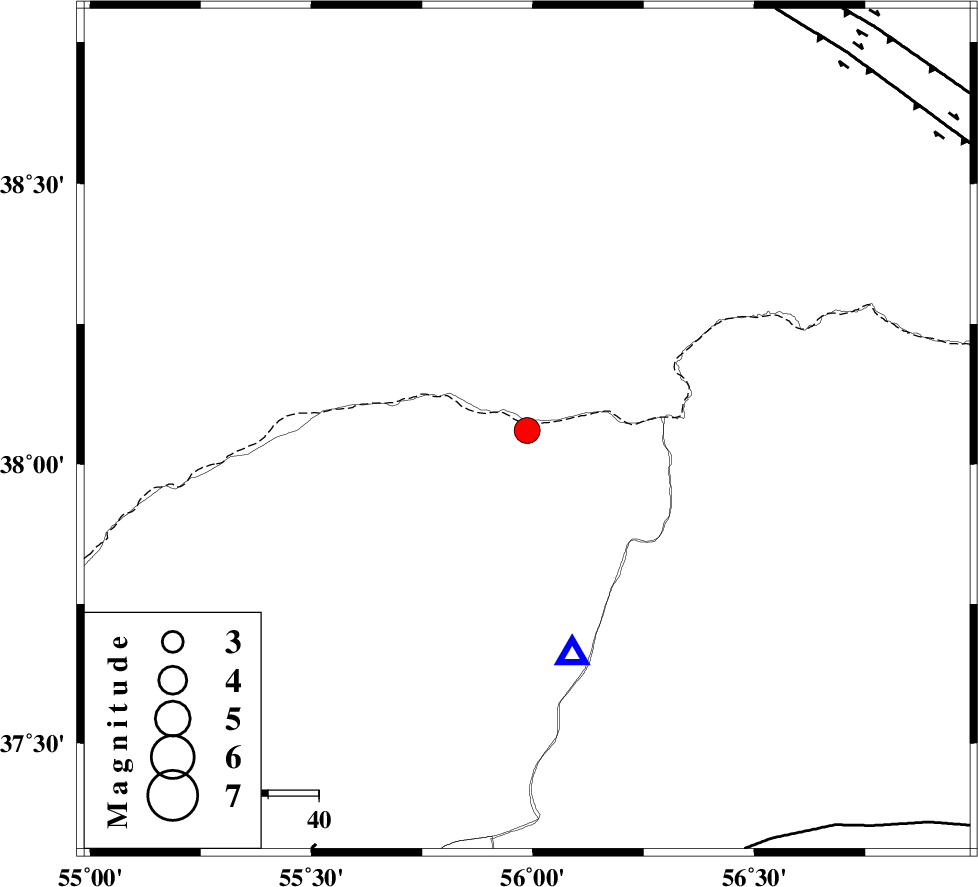

Location Lat:38.06 Lon: 55.987
Region Golestan Province, 87 km North-East of Kalaleh
Nearest Cities
18 km North of Moravehtappeh, Golestan Province
29 km North West of Qazanqayeh, Golestan Province
42 km North East of Karand, Golestan Province
47 km North West of Garmab, Khorasan(north) Province
47 km North of Golidagh, Golestan Province
Depth 8 km
Faults within 150 km:
ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 94 km
MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 98 km
MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 104 km
Number of Phases 17
RMS 0.3
Number of Stations 17
Error in Latitude >2.1 km
Error in Longitude 2.1 km
Error in Depth 3.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
179792IIEES SCMRVTZ 912023-03-12 02:17:242023-03-12 05:11:00n
179793IIEES SCBJRDZ 0.912023-03-12 02:17:382023-03-12 05:11:00n
179794IIEES SCGLOZ 212023-03-12 02:17:572023-03-12 05:11:00n
179795IIEES SCDARNZ 0.712023-03-12 02:18:072023-03-12 05:11:00n
179796IIEES SCKAGHZ 0.0812023-03-12 02:18:112023-03-12 05:11:00n
179797IIEES SCKKHKZ 0.212023-03-12 02:18:262023-03-12 05:11:00n
179798IIEES SCTABSZ 0.0612023-03-12 02:18:272023-03-12 05:11:00n
179799IIEES SCSHRTZ 0.0312023-03-12 02:18:422023-03-12 05:11:00n
179800IIEES SCYZKHZ 0.0212023-03-12 02:18:452023-03-12 05:11:00n
179801IIEES SCBSRNZ 0.0112023-03-12 02:18:562023-03-12 05:11:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMRVTZ EPg E2023-03-12 02:17:240y045169
IIEES SCBJRDZ EPg E2023-03-12 02:17:38-0.4y0132108
IIEES SCSHROZ EPn E2023-03-12 02:17:541.5n4228179
IIEES SCQUCHZ EPn E2023-03-12 02:17:561y0247117
IIEES SCGLOZ EPn E2023-03-12 02:17:570y0258228
IIEES SCDARNZ EPn E2023-03-12 02:18:07-0.3y0345158
IIEES SCKAGHZ EPn E2023-03-12 02:18:11-0.2y0373110
IIEES SCJRKHZ EPn E2023-03-12 02:18:220.4y0456122
IIEES SCKKHKZ EPn E2023-03-12 02:18:26-0.7y0496151
IIEES SCTBJMZ EPn E2023-03-12 02:18:270.8y0497129
IIEES SCTABSZ EPn E2023-03-12 02:18:270.6y0500168
IIEES SCSHRTZ EPn E2023-03-12 02:18:42-0.3y0625142
IIEES SCYZKHZ EPn E2023-03-12 02:18:450.1y0642191
IIEES SCZNJKZ EPn E2023-03-12 02:18:44-3.8n4665257
IIEES SCGRMIZ EPn E2023-03-12 02:18:50-3.1n4712277
IIEES SCBSRNZ EPn E2023-03-12 02:18:56-0.3y0734157
IIEES SCMRDZ EPn E2023-03-12 02:19:17-0.1y0902275
