Date & Time (UTC) 2023-03-16 11:54:36.5
Date & Time (Local) 1401/12/25  15:24:36.5

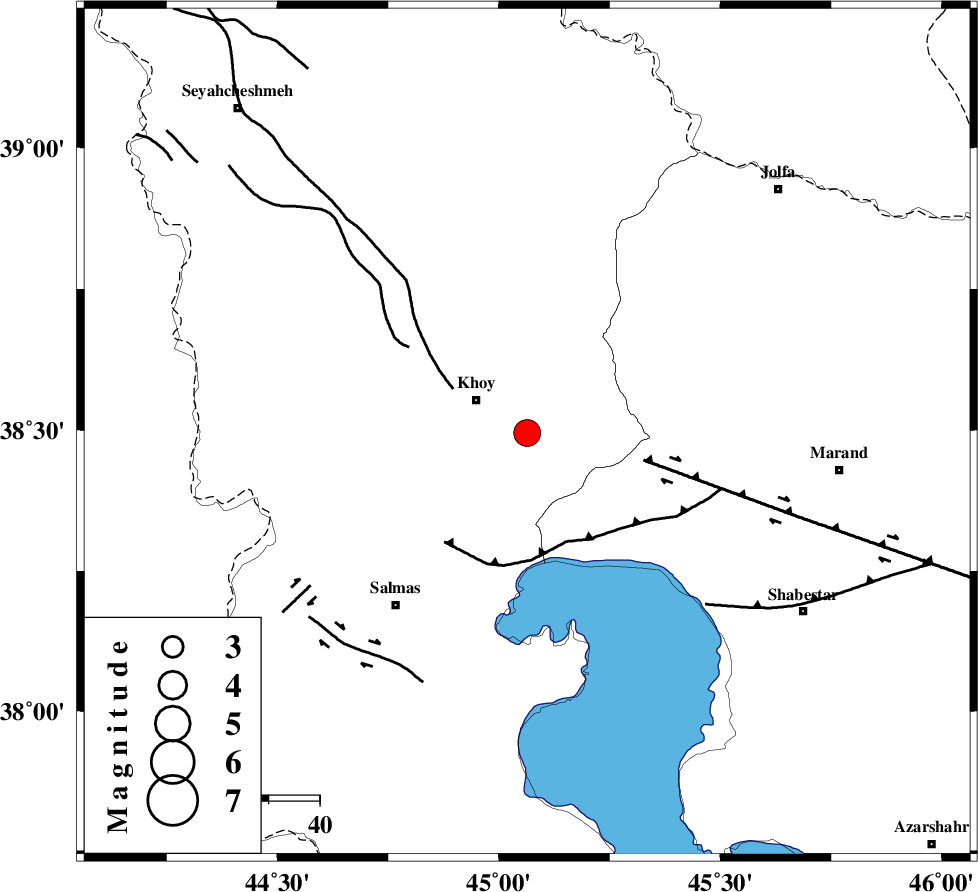

Location Lat:38.495 Lon: 45.064
Region Azarbaijan Gharbi Province, 12 km -East of Khoy
Nearest Cities
5 km North of Dizaj diz, Azarbaijan Gharbi Province
8 km of Saeedabad, Azarbaijan Gharbi Province
12 km East of Khoy, Azarbaijan Gharbi Province
13 km North East of Quruq, Azarbaijan Gharbi Province
20 km South East of Dizaj, Azarbaijan Gharbi Province
Depth 12 km
Faults within 150 km:
KHOY (Length: 100 km) , Distance to epicenter: 17 km
N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 23 km
N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 24 km
Number of Phases 16
RMS 0.4
Number of Stations 16
Error in Latitude >1.5 km
Error in Longitude 1.5 km
Error in Depth 3.9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
179942IIEES SCGNIZ 412023-03-16 11:55:072023-03-18 07:19:00n
179943IIEES SCMAHBZ 212023-03-16 11:55:082023-03-18 07:19:00n
179944IIEES SCGRMIZ 112023-03-16 11:55:152023-03-18 07:19:00n
179945IIEES SCSRSLZ 112023-03-16 11:55:162023-03-18 07:19:00n
179946IIEES SCGUROZ 0.212023-03-16 11:55:172023-03-18 07:19:00n
179947IIEES SCDHRZ 0.312023-03-16 11:55:382023-03-18 07:19:00n
179948IIEES SCHGHAZ 0.212023-03-16 11:55:442023-03-18 07:19:00n
179949IIEES SCKCHFZ 0.212023-03-16 11:55:462023-03-18 07:19:00n
179950IIEES SCILBAZ 0.0812023-03-16 11:55:522023-03-18 07:19:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMRDZ EPg E2023-03-16 11:54:470.2y06166
IIEES SCMAKUZ EPg E2023-03-16 11:54:53-0.7y0101341
IIEES SCAZRZ EPg E2023-03-16 11:54:55-1.1y0121138
IIEES SCGNIZ EPg E2023-03-16 11:55:070.2y0186351
IIEES SCMAHBZ EPn E2023-03-16 11:55:08-0.4y0200164
IIEES SCGRMIZ EPn E2023-03-16 11:55:15-0.1y024982
IIEES SCSRSLZ EPn E2023-03-16 11:55:16-0.1y0256173
IIEES SCGUROZ EPn E2023-03-16 11:55:170.1y0264271
IIEES SCBGDZ EPn E2023-03-16 11:55:304.2n4332338
IIEES SCZNJKZ EPn E2023-03-16 11:55:310.1y0378122
IIEES SCSNGEZ EPn E2023-03-16 11:55:380.9y0429152
IIEES SCDHRZ EPn E2023-03-16 11:55:38-0.4y0438164
IIEES SCGIDEZ EPn E2023-03-16 11:55:5110n4455113
IIEES SCHGHAZ EPn E2023-03-16 11:55:441y0475135
IIEES SCKCHFZ EPn E2023-03-16 11:55:460.2y0501159
IIEES SCILBAZ EPn E2023-03-16 11:55:520y0550169
