Date & Time (UTC) 2023-03-16 12:39:20.4
Date & Time (Local) 1401/12/25  16:09:20.4

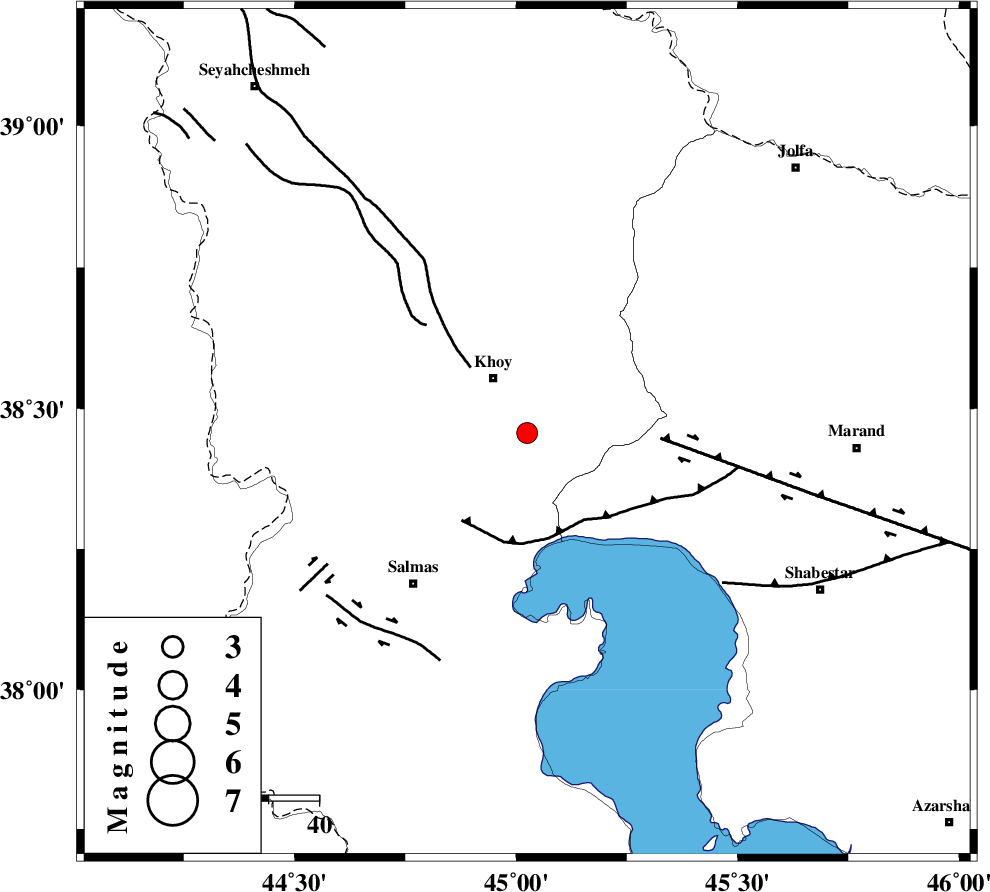

Location Lat:38.456 Lon: 45.025
Region Azarbaijan Gharbi Province, 13 km of Khoy
Nearest Cities
1 km of Dizaj diz, Azarbaijan Gharbi Province
9 km North East of Quruq, Azarbaijan Gharbi Province
12 km South of Saeedabad, Azarbaijan Gharbi Province
13 km of Khoy, Azarbaijan Gharbi Province
22 km East of Beyk sofla, Azarbaijan Gharbi Province
Depth 10 km
Faults within 150 km:
KHOY (Length: 100 km) , Distance to epicenter: 17 km
N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 20 km
N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 26 km
Number of Phases 12
RMS 0.5
Number of Stations 12
Error in Latitude >2.3 km
Error in Longitude 2.3 km
Error in Depth 6.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
179965IIEES SCMRDZ 412023-03-16 12:39:312023-03-18 08:37:00n
179966IIEES SCMAKUZ 0.412023-03-16 12:39:372023-03-18 08:37:00n
179967IIEES SCGNIZ 0.812023-03-16 12:39:522023-03-18 08:37:00n
179968IIEES SCMAHBZ 0.412023-03-16 12:39:522023-03-18 08:37:00n
179969IIEES SCSRSLZ 0.212023-03-16 12:40:002023-03-18 08:37:00n
179970IIEES SCGRMIZ 0.212023-03-16 12:40:002023-03-18 08:37:00n
179971IIEES SCGUROZ 0.0612023-03-16 12:40:012023-03-18 08:37:00n
179972IIEES SCZNJKZ 0.0312023-03-16 12:40:152023-03-18 08:37:00n
179973IIEES SCSNGEZ 0.0312023-03-16 12:40:222023-03-18 08:37:00n
179974IIEES SCDHRZ 0.0412023-03-16 12:40:232023-03-18 08:37:00n
179975IIEES SCILBAZ 0.0112023-03-16 12:40:362023-03-18 08:37:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMRDZ EPg E2023-03-16 12:39:31-0.3y06664
IIEES SCMAKUZ EPg E2023-03-16 12:39:37-0.8y0104343
IIEES SCAZRZ EPg E2023-03-16 12:39:40-0.7y0121136
IIEES SCGNIZ EPg E2023-03-16 12:39:520.6y0189353
IIEES SCMAHBZ EPg E2023-03-16 12:39:52-0.4y0197162
IIEES SCSRSLZ EPn E2023-03-16 12:40:000.5y0252172
IIEES SCGRMIZ EPn E2023-03-16 12:40:000.8y025381
IIEES SCGUROZ EPn E2023-03-16 12:40:010y0261272
IIEES SCZNJKZ EPn E2023-03-16 12:40:15-0.6y0379121
IIEES SCSNGEZ EPn E2023-03-16 12:40:220.7y0427151
IIEES SCDHRZ EPn E2023-03-16 12:40:230.9y0434164
IIEES SCILBAZ EPn E2023-03-16 12:40:36-0.5y0547169
