Date & Time (UTC) 2023-03-16 19:59:13.6
Date & Time (Local) 1401/12/25  23:29:13.6

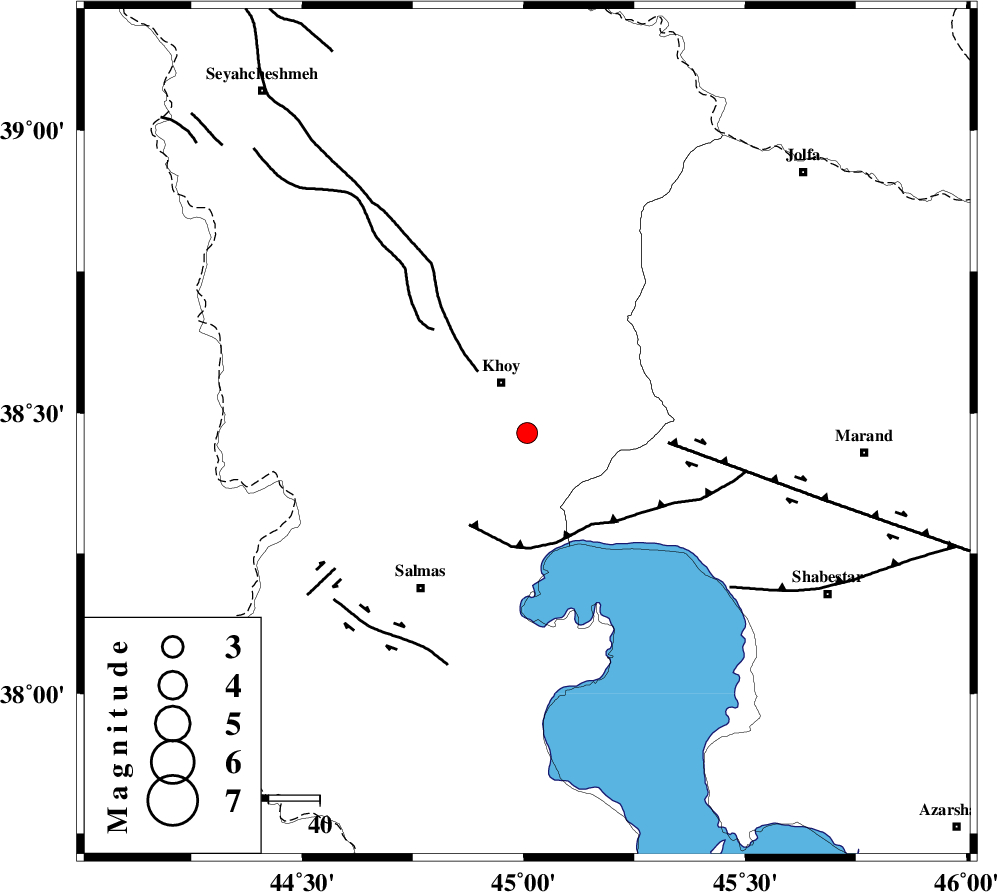

Location Lat:38.464 Lon: 45.008
Region Azarbaijan Gharbi Province, 11 km of Khoy
Nearest Cities
2 km North of Dizaj diz, Azarbaijan Gharbi Province
8 km North of Quruq, Azarbaijan Gharbi Province
11 km of Saeedabad, Azarbaijan Gharbi Province
11 km of Khoy, Azarbaijan Gharbi Province
20 km East of Beyk sofla, Azarbaijan Gharbi Province
Depth 12 km
Faults within 150 km:
KHOY (Length: 100 km) , Distance to epicenter: 16 km
N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 21 km
N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 28 km
Number of Phases 13
RMS 0.5
Number of Stations 13
Error in Latitude >2.1 km
Error in Longitude 2.1 km
Error in Depth 9.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
179976IIEES SCGNIZ 0.512023-03-16 19:59:442023-03-18 08:55:00n
179977IIEES SCMAHBZ 0.312023-03-16 19:59:462023-03-18 08:55:00n
179978IIEES SCGRMIZ 0.112023-03-16 19:59:532023-03-18 08:55:00n
179979IIEES SCZNJKZ 0.0312023-03-16 20:00:082023-03-18 08:55:00n
179980IIEES SCDHRZ 0.0412023-03-16 20:00:162023-03-18 08:55:00n
179981IIEES SCILBAZ 0.0112023-03-16 20:00:292023-03-18 08:55:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMRDZ EPg E2023-03-16 19:59:25-0.1y06665
IIEES SCMAKUZ EPg E2023-03-16 19:59:30-0.6y0103344
IIEES SCAZRZ EPg E2023-03-16 19:59:33-0.4y0122136
IIEES SCGNIZ EPg E2023-03-16 19:59:440.6y0188353
IIEES SCMAHBZ EPg E2023-03-16 19:59:460.4y0198162
IIEES SCSRSLZ EPn E2023-03-16 19:59:530.5y0253171
IIEES SCGRMIZ EPn E2023-03-16 19:59:530.6y025481
IIEES SCGUROZ EPn E2023-03-16 19:59:53-0.1y0260272
IIEES SCZNJKZ EPn E2023-03-16 20:00:08-0.7y0381121
IIEES SCSNGEZ EPn E2023-03-16 20:00:150.6y0428151
IIEES SCDHRZ EPn E2023-03-16 20:00:160.5y0436164
IIEES SCILBAZ EPn E2023-03-16 20:00:29-0.5y0548169
IIEES SCARPRZ EPn E2023-03-16 20:00:20-13.5n4584277
