Date & Time (UTC) 2023-03-17 01:29:17.1
Date & Time (Local) 1401/12/26  04:59:17.1

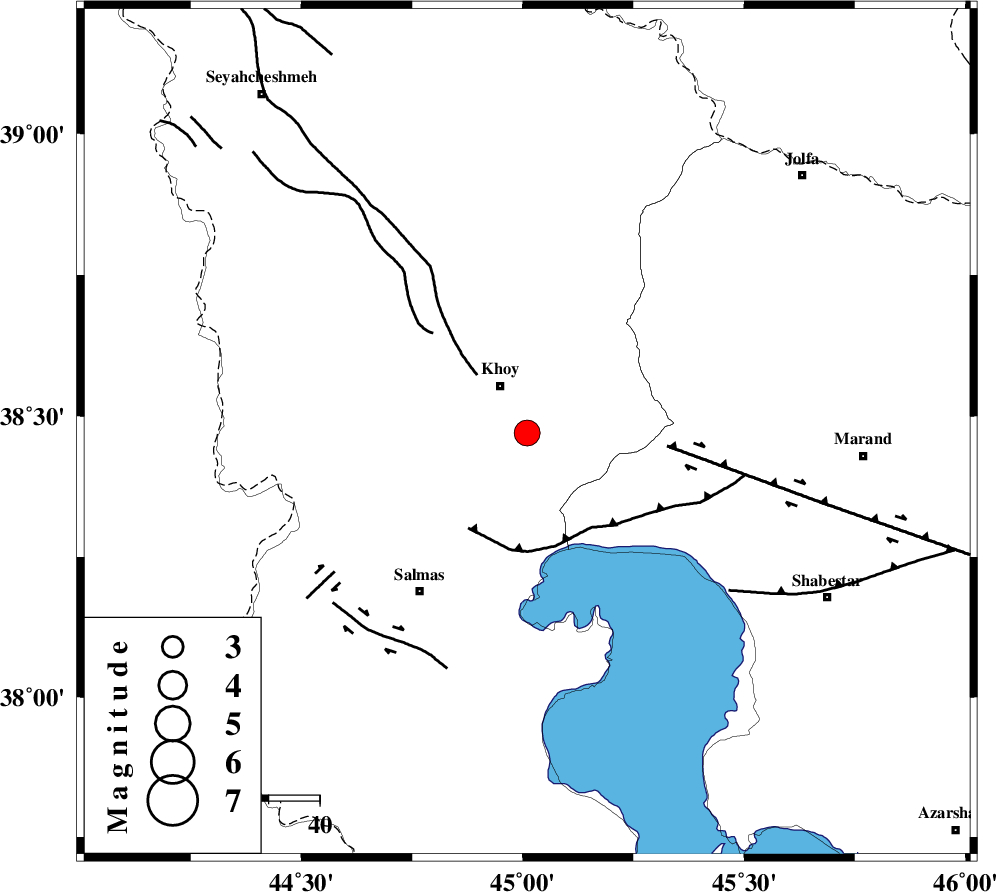

Location Lat:38.47 Lon: 45.01
Region Azarbaijan Gharbi Province, 11 km of Khoy
Nearest Cities
2 km North of Dizaj diz, Azarbaijan Gharbi Province
8 km North of Quruq, Azarbaijan Gharbi Province
11 km of Saeedabad, Azarbaijan Gharbi Province
11 km of Khoy, Azarbaijan Gharbi Province
20 km East of Beyk sofla, Azarbaijan Gharbi Province
Depth 12 km
Faults within 150 km:
KHOY (Length: 100 km) , Distance to epicenter: 15 km
N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 22 km
N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 28 km
Number of Phases 18
RMS 0.3
Number of Stations 18
Error in Latitude >1.2 km
Error in Longitude 1.2 km
Error in Depth 5.4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
180004IIEES SCMAKUZ 212023-03-17 01:29:342023-03-18 09:16:00n
180005IIEES SCGNIZ 312023-03-17 01:29:482023-03-18 09:16:00n
180006IIEES SCMAHBZ 212023-03-17 01:29:482023-03-18 09:16:00n
180007IIEES SCSRSLZ 0.912023-03-17 01:29:572023-03-18 09:16:00n
180008IIEES SCGRMIZ 0.612023-03-17 01:29:562023-03-18 09:16:00n
180009IIEES SCDHRZ 0.212023-03-17 01:30:192023-03-18 09:16:00n
180010IIEES SCGIDEZ 0.0312023-03-17 01:30:222023-03-18 09:16:00n
180011IIEES SCHGHAZ 0.0912023-03-17 01:30:242023-03-18 09:16:00n
180012IIEES SCKCHFZ 0.112023-03-17 01:30:262023-03-18 09:16:00n
180013IIEES SCILBAZ 0.0512023-03-17 01:30:332023-03-18 09:16:00n
180014IIEES SCASAOZ 0.0312023-03-17 01:30:422023-03-18 09:16:00n
180015IIEES SCGTMRZ 0.0312023-03-17 01:31:002023-03-18 09:16:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMRDZ EPg E2023-03-17 01:29:290.2y06666
IIEES SCMAKUZ EPg E2023-03-17 01:29:34-0.3y0102344
IIEES SCAZRZ EPg E2023-03-17 01:29:37-0.5y0123136
IIEES SCGNIZ EPg E2023-03-17 01:29:480.3y0188353
IIEES SCMAHBZ EPg E2023-03-17 01:29:48-0.6y0199162
IIEES SCSRSLZ EPn E2023-03-17 01:29:570.3y0253171
IIEES SCGRMIZ EPn E2023-03-17 01:29:56-0.3y025481
IIEES SCGUROZ EPn E2023-03-17 01:29:570y0260272
IIEES SCBGDZ EPn E2023-03-17 01:30:093.1n4333339
IIEES SCZNJKZ EPn E2023-03-17 01:30:10-2.3n4381122
IIEES SCSNGEZ EPn E2023-03-17 01:30:190.8y0429151
IIEES SCDHRZ EPn E2023-03-17 01:30:190.5y0436164
IIEES SCGIDEZ EPn E2023-03-17 01:30:220y0458112
IIEES SCHGHAZ EPn E2023-03-17 01:30:240.3y0476134
IIEES SCKCHFZ EPn E2023-03-17 01:30:26-0.5y0500159
IIEES SCILBAZ EPn E2023-03-17 01:30:330.2y0548169
IIEES SCASAOZ EPn E2023-03-17 01:30:42-0.3y0626134
IIEES SCGTMRZ EPn E2023-03-17 01:31:000.6y0763151
