Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-06-25 18:14:49.2 |
| Date & Time (Local) | 1395/4/5 22:44:49.2 |

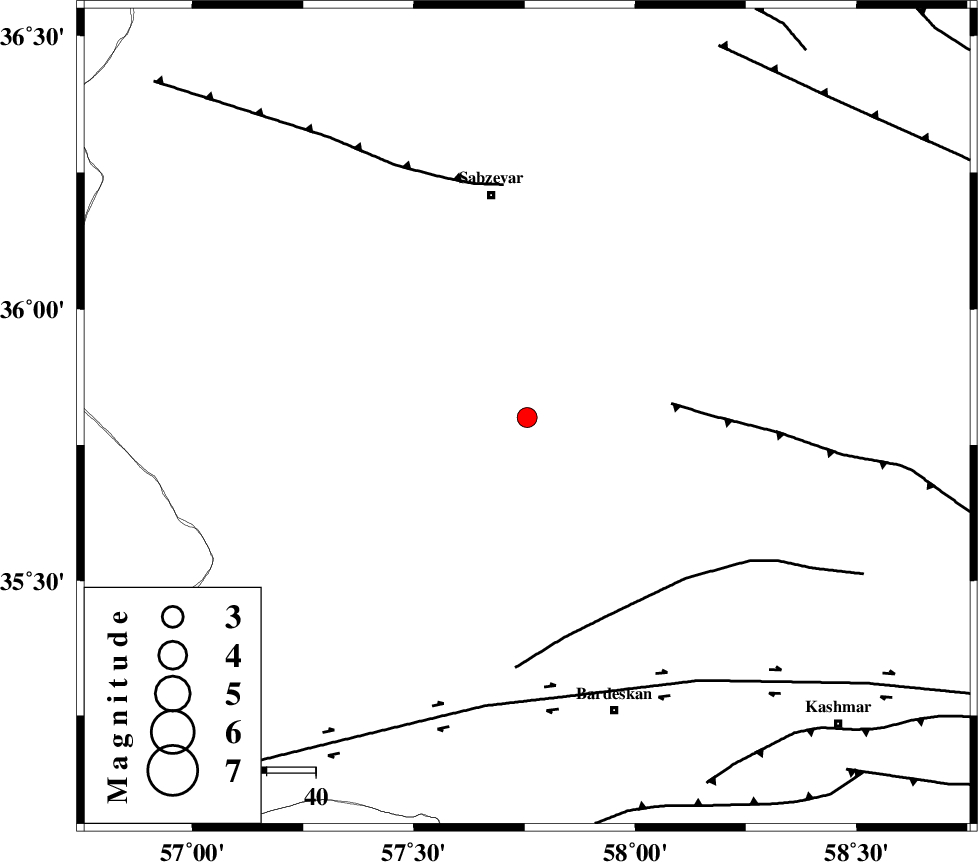

| Location | Lat:35.8 Lon: 57.756 |
| Region | Khorasan(center) Province, 46 km South of Sabzevar |
Nearest Cities |
|
| 2 km of Tondak, Khorasan(center) Province | |
| 13 km North East of Bejdan, Khorasan(center) Province | |
| 18 km South of Sheshtamad, Khorasan(center) Province | |
| 38 km North West of Ghaleh meidan, Khorasan(center) Province | |
| 46 km South of Sabzevar, Khorasan(center) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BALHAR_F (Length: 117 km) , Distance to epicenter: 30 km | |
| BIJVARD_F (Length: 83 km) , Distance to epicenter: 44 km | |
| SABZEVAR_F (Length: 81 km) , Distance to epicenter: 48 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107011 | IIEES | SHRO | E | 72 | 0.65 | 2016-06-25 18:15:41 | 2016-06-26 05:23:00 | n |
| 107012 | IIEES | SHRO | N | 102.7 | 0.65 | 2016-06-25 18:15:41 | 2016-06-26 05:23:00 | n |
| 107013 | IIEES | TABS | E | 33.6 | 0.53 | 2016-06-25 18:16:10 | 2016-06-26 05:23:00 | n |
| 107014 | IIEES | TABS | N | 54.7 | 0.63 | 2016-06-25 18:16:11 | 2016-06-26 05:23:00 | n |
| 107015 | IIEES | SHRT | N | 30.3 | 0.45 | 2016-06-25 18:16:32 | 2016-06-26 05:23:00 | n |
| 107016 | IIEES | SHRT | E | 44.5 | 0.49 | 2016-06-25 18:16:32 | 2016-06-26 05:23:00 | n |
| 107017 | IIEES | YZKH | N | 10.4 | 0.81 | 2016-06-25 18:17:19 | 2016-06-26 05:23:00 | n |
| 107018 | IIEES | YZKH | E | 13.4 | 0.5 | 2016-06-25 18:17:23 | 2016-06-26 05:23:00 | n |
| 107019 | IIEES | NASN | E | 2.5 | 0.51 | 2016-06-25 18:17:46 | 2016-06-26 05:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2016-06-25 18:15:15 | -0.18 | y | 159 | 279 | |||
| IIEES | BJRD | Z | Pn | E | 2016-06-25 18:15:23 | -0.04 | y | 213 | 352 | |||
| IIEES | TABS | Z | Pn | E | 2016-06-25 18:15:27 | 0.12 | y | 246 | 194 | |||
| IIEES | MRVT | Z | Pn | E | 2016-06-25 18:15:28 | 0.15 | y | 254 | 325 | |||
| IIEES | SHRT | Z | Pn | E | 2016-06-25 18:15:38 | -0.03 | y | 333 | 135 | |||
| IIEES | BSRN | Z | Pn | E | 2016-06-25 18:15:51 | -0.27 | y | 444 | 163 | |||
| IIEES | YZKH | Z | Pn | E | 2016-06-25 18:15:56 | 0.24 | y | 478 | 219 | |||
| IIEES | NASN | Z | Pn | E | 2016-06-25 18:16:24 | 16.85 | n | 4 | 564 | 235 | ||
