Magnitude |
:2.5 |
| Date & Time (UTC) | 2017-06-03 04:56:26.0 |
| Date & Time (Local) | 1396/3/13 09:26:26.0 |
| Location | Lat:33.336 Lon: 55.393 |
| Region | Yazd Province, 193 km North of Bafq |
Nearest Cities |
|
| 28 km South East of Mehranjan, Esfahan Province | |
| 39 km North West of Robat-e posht-e badam, Yazd Province | |
| 52 km North East of Hajiabad, Yazd Province | |
| 57 km South East of Khur, Esfahan Province | |
| 70 km South East of Farrokhi, Esfahan Province | |
| Depth | 15 km |
| Agency | |

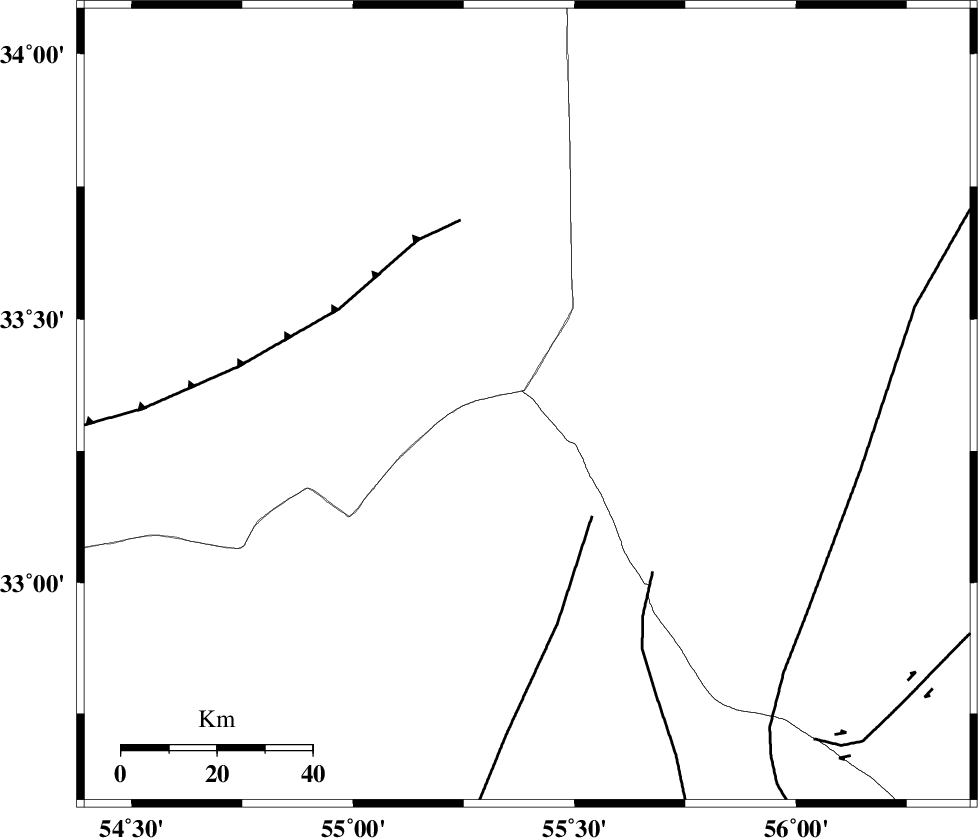

Faults within 150 km: |
|
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 27 km | |
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 41 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 44 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 3.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 116469 | IIEES | YZKH | N | 99.4 | 0.26 | 2017-06-03 04:57:06 | 2017-06-03 06:03:00 | n |
| 116470 | IIEES | YZKH | E | 99.5 | 0.41 | 2017-06-03 04:57:08 | 2017-06-03 06:03:00 | n |
| 116471 | IIEES | TABS | E | 53.8 | 0.39 | 2017-06-03 04:57:14 | 2017-06-03 06:03:00 | n |
| 116472 | IIEES | TABS | N | 67.7 | 0.3 | 2017-06-03 04:57:15 | 2017-06-03 06:03:00 | n |
| 116473 | IIEES | NASN | N | 45.1 | 0.42 | 2017-06-03 04:57:36 | 2017-06-03 06:03:00 | n |
| 116474 | IIEES | NASN | E | 27.6 | 0.29 | 2017-06-03 04:57:40 | 2017-06-03 06:03:00 | n |
| 116475 | IIEES | SHRO | E | 13.3 | 0.51 | 2017-06-03 04:57:53 | 2017-06-03 06:03:00 | n |
| 116476 | IIEES | SHRO | N | 12.8 | 0.57 | 2017-06-03 04:58:03 | 2017-06-03 06:03:00 | n |
| 116477 | IIEES | BSRN | N | 4.4 | 0.39 | 2017-06-03 04:58:20 | 2017-06-03 06:03:00 | n |
| 116478 | IIEES | BSRN | E | 5.7 | 0.28 | 2017-06-03 04:58:28 | 2017-06-03 06:03:00 | n |
| 116479 | IIEES | SHRT | E | 3.4 | 0.51 | 2017-06-03 04:58:50 | 2017-06-03 06:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2017-06-03 04:56:47 | 0.08 | y | 129 | 216 | |||
| IIEES | YZKH | N | Sg | E | 2017-06-03 04:57:03 | -0.01 | y | 129 | 216 | |||
| IIEES | TABS | Z | Pg | E | 2017-06-03 04:56:53 | -0.07 | y | 164 | 77 | |||
| IIEES | NASN | Z | Pn | E | 2017-06-03 04:57:04 | -0.09 | y | 249 | 257 | |||
| IIEES | SHRO | Z | Pn | E | 2017-06-03 04:57:11 | 0.05 | y | 302 | 11 | |||
| IIEES | BSRN | Z | P | E | 2017-06-03 04:57:21 | -0.04 | y | 382 | 112 | |||
| IIEES | SHRT | Z | Pn | E | 2017-06-03 04:57:30 | 0.11 | y | 456 | 84 | |||
