Magnitude |
:3.3 |
| Date & Time (UTC) | 2017-07-20 15:54:42.6 |
| Date & Time (Local) | 1396/4/29 20:24:42.6 |

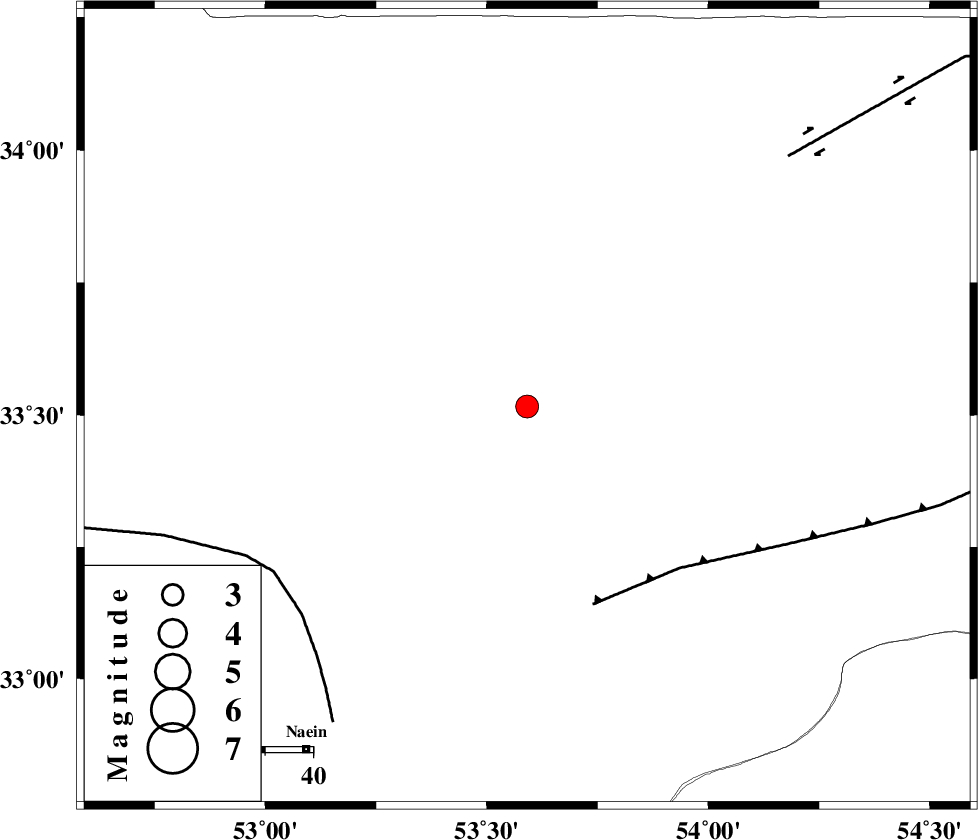

| Location | Lat:33.516 Lon: 53.591 |
| Region | Esfahan Province, 86 km North-East of Nain |
Nearest Cities |
|
| 25 km North West of Anarak, Esfahan Province | |
| 26 km South East of Maedan, Esfahan Province | |
| 73 km South West of Chupanan, Esfahan Province | |
| 75 km North East of Shahrab, Esfahan Province | |
| 86 km North East of Nain, Esfahan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 44 km | |
| CHAH_ZANGUL_F (Length: 123 km) , Distance to epicenter: 63 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 76 km | |
| Number of Phases | 16 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 8.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117859 | IIEES | YZKH | E | 240.2 | 0.25 | 2017-07-20 15:55:38 | 2017-07-22 06:28:00 | n |
| 117860 | IIEES | GHVR | N | 215.6 | 0.38 | 2017-07-20 15:55:54 | 2017-07-22 06:28:00 | n |
| 117861 | IIEES | GHVR | E | 195.8 | 0.53 | 2017-07-20 15:55:57 | 2017-07-22 06:28:00 | n |
| 117862 | IIEES | DAMV | E | 69.9 | 0.3 | 2017-07-20 15:56:13 | 2017-07-22 06:28:00 | n |
| 117863 | IIEES | SHRO | N | 69.2 | 0.48 | 2017-07-20 15:56:33 | 2017-07-22 06:28:00 | n |
| 117864 | IIEES | SHRO | E | 57.5 | 0.41 | 2017-07-20 15:56:38 | 2017-07-22 06:28:00 | n |
| 117865 | IIEES | THKV | N | 50.9 | 0.42 | 2017-07-20 15:56:39 | 2017-07-22 06:28:00 | n |
| 117866 | IIEES | THKV | E | 39.3 | 0.5 | 2017-07-20 15:56:47 | 2017-07-22 06:28:00 | n |
| 117867 | IIEES | KRBR | E | 25.3 | 0.4 | 2017-07-20 15:57:19 | 2017-07-22 06:28:00 | n |
| 117868 | IIEES | KRBR | N | 38.1 | 0.6 | 2017-07-20 15:57:21 | 2017-07-22 06:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pg | E | 2017-07-20 15:55:00 | -0.45 | y | 108 | 223 | |||
| IIEES | YZKH | Z | Pg | E | 2017-07-20 15:55:08 | 0.02 | y | 156 | 143 | |||
| IIEES | GHVR | Z | Pn | E | 2017-07-20 15:55:20 | -0.16 | y | 242 | 297 | |||
| IIEES | DAMV | Z | Pn | E | 2017-07-20 15:55:24 | -0.16 | y | 278 | 328 | |||
| IIEES | TABS | Z | Pn | E | 2017-07-20 15:55:30 | -0.18 | y | 328 | 86 | |||
| IIEES | TABS | N | Sg | E | 2017-07-20 15:56:14 | 0.09 | y | 328 | 86 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-07-20 15:55:32 | 0.31 | y | 337 | 275 | |||
| IIEES | CHTH | Z | Pn | E | 2017-07-20 15:55:33 | 0.11 | y | 348 | 320 | |||
| IIEES | ASAO | Z | Pn | E | 2017-07-20 15:55:33 | -0.08 | y | 349 | 290 | |||
| IIEES | SHRO | Z | Pn | E | 2017-07-20 15:55:34 | -0.35 | y | 354 | 38 | |||
| IIEES | THKV | Z | Pn | E | 2017-07-20 15:55:36 | 0.64 | y | 364 | 318 | |||
| IIEES | KRBR | Z | Pn | E | 2017-07-20 15:55:52 | 0.96 | y | 494 | 142 | |||
| IIEES | MRVT | Z | Pn | E | 2017-07-20 15:55:54 | 0.21 | y | 512 | 26 | |||
| IIEES | BSRN | Z | Pn | E | 2017-07-20 15:55:58 | -0.17 | y | 546 | 107 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-07-20 15:56:00 | -0.19 | y | 568 | 309 | |||
| IIEES | SHRT | Z | Pn | E | 2017-07-20 15:56:07 | -0.55 | y | 622 | 87 | |||
