Magnitude |
:2.9 |
| Date & Time (UTC) | 2017-07-28 23:16:21.7 |
| Date & Time (Local) | 1396/5/7 03:46:21.7 |

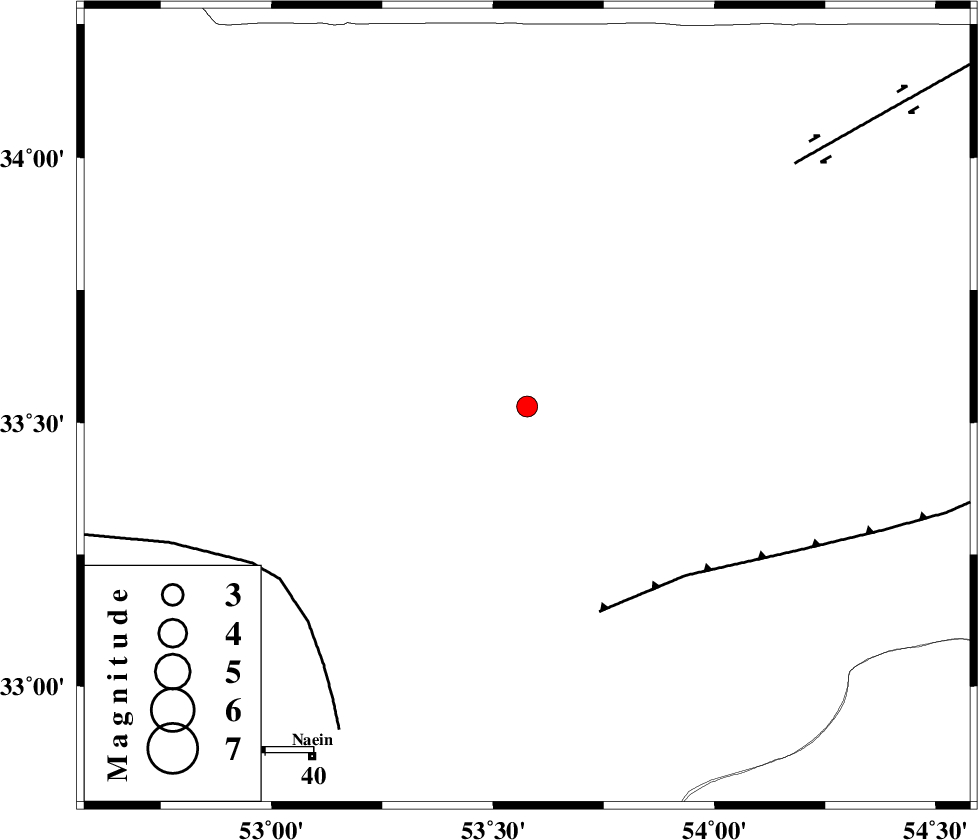

| Location | Lat:33.53 Lon: 53.577 |
| Region | Esfahan Province, 87 km North-East of Nain |
Nearest Cities |
|
| 25 km South East of Maedan, Esfahan Province | |
| 27 km North West of Anarak, Esfahan Province | |
| 74 km North East of Shahrab, Esfahan Province | |
| 74 km West of Chupanan, Esfahan Province | |
| 87 km North East of Nain, Esfahan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 46 km | |
| CHAH_ZANGUL_F (Length: 123 km) , Distance to epicenter: 63 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 76 km | |
| Number of Phases | 15 |
| RMS | 0.3 |
| Number of Stations | 13 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 7.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118116 | IIEES | YZKH | N | 83.1 | 0.59 | 2017-07-28 23:17:16 | 2017-07-29 07:40:00 | n |
| 118117 | IIEES | GHVR | N | 76.8 | 0.46 | 2017-07-28 23:17:33 | 2017-07-29 07:40:00 | n |
| 118118 | IIEES | GHVR | E | 68 | 0.61 | 2017-07-28 23:17:39 | 2017-07-29 07:40:00 | n |
| 118119 | IIEES | DAMV | E | 28.7 | 0.25 | 2017-07-28 23:17:52 | 2017-07-29 07:40:00 | n |
| 118120 | IIEES | SHRO | N | 27.2 | 0.49 | 2017-07-28 23:18:12 | 2017-07-29 07:40:00 | n |
| 118121 | IIEES | SHRO | E | 21.3 | 0.41 | 2017-07-28 23:18:15 | 2017-07-29 07:40:00 | n |
| 118122 | IIEES | KRBR | E | 9.5 | 0.78 | 2017-07-28 23:18:59 | 2017-07-29 07:40:00 | n |
| 118123 | IIEES | KRBR | N | 12 | 0.55 | 2017-07-28 23:19:00 | 2017-07-29 07:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pg | E | 2017-07-28 23:16:39 | -0.69 | y | 108 | 222 | |||
| IIEES | YZKH | Z | Pg | E | 2017-07-28 23:16:48 | 0.43 | y | 158 | 143 | |||
| IIEES | YZKH | N | Sg | E | 2017-07-28 23:17:07 | 0.24 | y | 158 | 143 | |||
| IIEES | GHVR | Z | Pn | E | 2017-07-28 23:16:58 | -0.35 | y | 240 | 297 | |||
| IIEES | GHVR | N | Sg | E | 2017-07-28 23:17:29 | 0.03 | y | 240 | 297 | |||
| IIEES | DAMV | Z | Pn | E | 2017-07-28 23:17:04 | 0.41 | y | 276 | 328 | |||
| IIEES | TABS | Z | Pn | E | 2017-07-28 23:17:10 | -0.14 | y | 329 | 87 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-07-28 23:17:11 | 0.27 | y | 336 | 275 | |||
| IIEES | CHTH | Z | Pn | E | 2017-07-28 23:17:12 | 0.09 | y | 346 | 320 | |||
| IIEES | ASAO | Z | Pn | E | 2017-07-28 23:17:13 | 0.42 | y | 347 | 290 | |||
| IIEES | SHRO | Z | Pn | E | 2017-07-28 23:17:13 | -0.31 | y | 354 | 38 | |||
| IIEES | KRBR | Z | Pn | E | 2017-07-28 23:17:31 | 0.19 | y | 496 | 142 | |||
| IIEES | MRVT | Z | Pn | E | 2017-07-28 23:17:32 | 0.04 | y | 512 | 26 | |||
| IIEES | BSRN | Z | Pn | E | 2017-07-28 23:17:36 | -0.51 | y | 548 | 107 | |||
| IIEES | SHRT | Z | Pn | E | 2017-07-28 23:17:46 | -0.31 | y | 623 | 87 | |||
