Magnitude |
:3.6 |
| Date & Time (UTC) | 2017-08-02 18:33:45.9 |
| Date & Time (Local) | 1396/5/11 23:03:45.9 |
| Location | Lat:33.46 Lon: 57.086 |
| Region | Yazd Province, 21 km South-East of Tabas |
Nearest Cities |
|
| 14 km North East of Kerit, Yazd Province | |
| 19 km East of Oshtoqran, Yazd Province | |
| 21 km South East of Tabas, Yazd Province | |
| 38 km South West of Arsak, Khorasan(center) Province | |
| 40 km South East of Jokhvah, Yazd Province | |
| Depth | 14 km |
| Agency | |

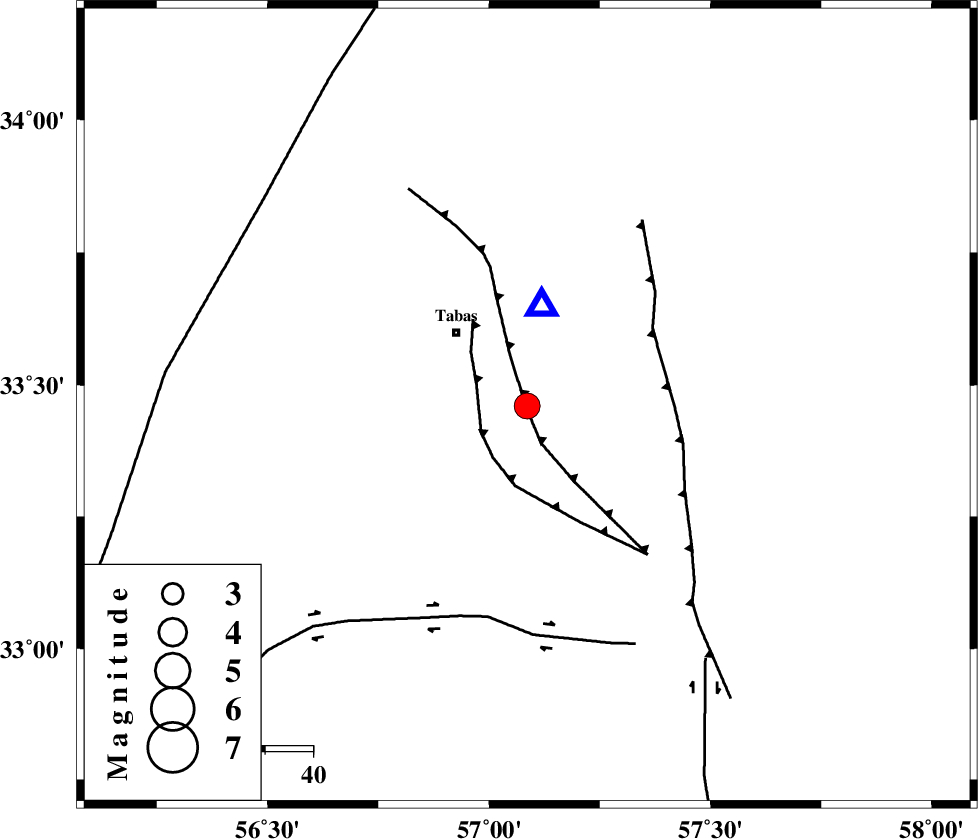

Faults within 150 km: |
|
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 1 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 11 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 31 km | |
| Number of Phases | 13 |
| RMS | 0.2 |
| Number of Stations | 12 |
| Error in Latitude | >2 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 3.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118316 | IIEES | TABS | N | 4961.4 | 0.13 | 2017-08-02 18:33:54 | 2017-08-03 07:08:00 | n |
| 118317 | IIEES | YZKH | N | 235.5 | 0.49 | 2017-08-02 18:35:02 | 2017-08-03 07:08:00 | n |
| 118318 | IIEES | YZKH | E | 342.1 | 0.41 | 2017-08-02 18:35:04 | 2017-08-03 07:08:00 | n |
| 118319 | IIEES | SHRO | E | 85 | 0.26 | 2017-08-02 18:35:13 | 2017-08-03 07:08:00 | n |
| 118320 | IIEES | KRBR | N | 248.5 | 0.52 | 2017-08-02 18:35:39 | 2017-08-03 07:08:00 | n |
| 118321 | IIEES | KRBR | E | 250.8 | 0.44 | 2017-08-02 18:35:46 | 2017-08-03 07:08:00 | n |
| 118322 | IIEES | NASN | E | 62 | 0.52 | 2017-08-02 18:35:44 | 2017-08-03 07:08:00 | n |
| 118323 | IIEES | NASN | N | 74.8 | 0.59 | 2017-08-02 18:35:45 | 2017-08-03 07:08:00 | n |
| 118324 | IIEES | DAMV | E | 17.6 | 0.54 | 2017-08-02 18:36:32 | 2017-08-03 07:08:00 | n |
| 118325 | IIEES | DAMV | N | 20.4 | 0.76 | 2017-08-02 18:36:41 | 2017-08-03 07:08:00 | n |
| 118326 | IIEES | GHVR | N | 30 | 0.68 | 2017-08-02 18:36:45 | 2017-08-03 07:08:00 | n |
| 118327 | IIEES | GHVR | E | 36.1 | 0.68 | 2017-08-02 18:36:47 | 2017-08-03 07:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2017-08-02 18:33:50 | -0.3 | y | 21.2 | 8 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-02 18:34:24 | -0.18 | y | 253 | 130 | |||
| IIEES | YZKH | Z | Pn | E | 2017-08-02 18:34:26 | -0.16 | y | 262 | 244 | |||
| IIEES | YZKH | N | Sg | E | 2017-08-02 18:34:59 | -0.06 | y | 262 | 244 | |||
| IIEES | SHRT | Z | Pn | E | 2017-08-02 18:34:30 | 0.12 | y | 298 | 85 | |||
| IIEES | SHRO | Z | Pn | E | 2017-08-02 18:34:31 | 0.26 | y | 299 | 341 | |||
| IIEES | KRBR | Z | Pn | E | 2017-08-02 18:34:42 | 0.29 | y | 387 | 185 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-02 18:34:44 | -0.03 | y | 406 | 261 | |||
| IIEES | DAMV | Z | Pn | E | 2017-08-02 18:34:59 | 0.07 | y | 528 | 299 | |||
| IIEES | GHVR | Z | Pn | E | 2017-08-02 18:35:02 | 0.28 | y | 551 | 283 | |||
| IIEES | CHTH | Z | Pn | E | 2017-08-02 18:35:09 | 0.21 | y | 610 | 298 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-08-02 18:35:15 | -0.13 | y | 662 | 275 | |||
| IIEES | ASAO | Z | Pn | E | 2017-08-02 18:35:15 | -0.29 | y | 663 | 282 | |||
