Magnitude |
:3.5 |
| Date & Time (UTC) | 2018-04-21 14:18:12.9 |
| Date & Time (Local) | 1397/2/1 18:48:12.9 |

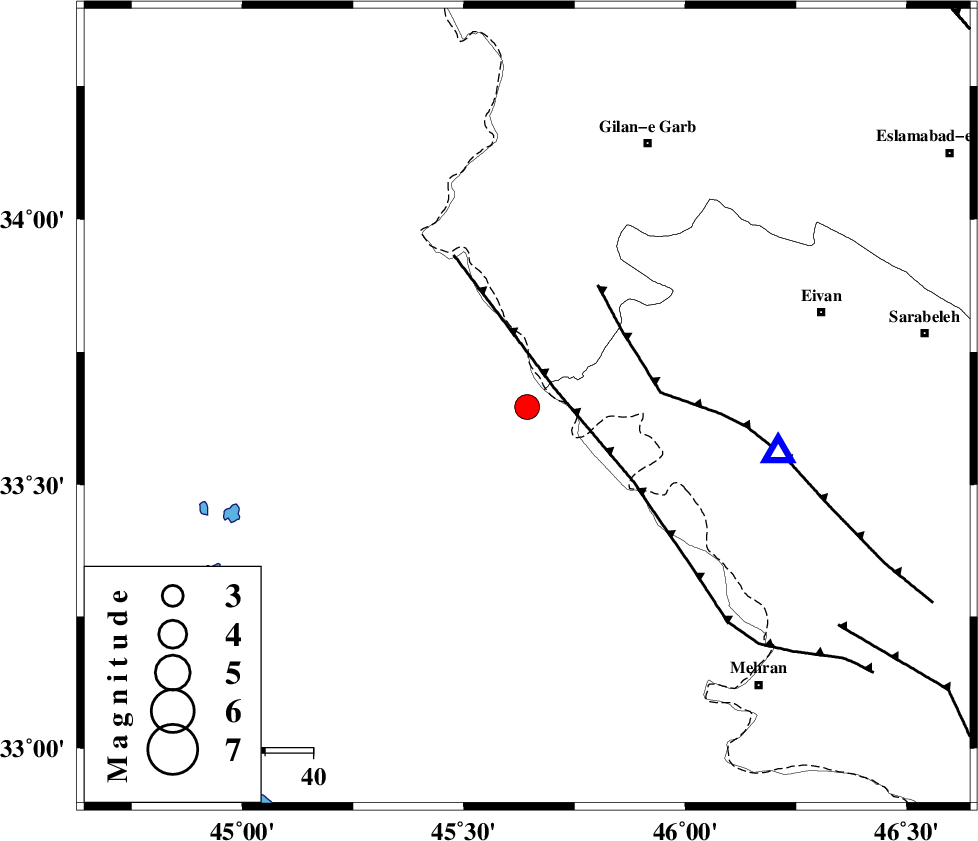

| Location | Lat:33.646 Lon: 45.643 |
| Region | Iraq, 61 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 26 km South of Sumar, Kermanshah Province | |
| 52 km South West of Nian, Kermanshah Province | |
| 54 km North West of Salehabad, Ilam Province | |
| 56 km South West of Teran, Ilam Province | |
| 58 km West of Chavar, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 7 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 26 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 80 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130560 | IIEES | ILBA | N | 3864.3 | 0.48 | 2018-04-21 14:18:31 | 2018-04-22 06:02:00 | n |
| 130561 | IIEES | ILBA | E | 3312.6 | 0.36 | 2018-04-21 14:18:37 | 2018-04-22 06:02:00 | n |
| 130562 | IIEES | SNGE | N | 341.4 | 0.54 | 2018-04-21 14:19:20 | 2018-04-22 06:02:00 | n |
| 130563 | IIEES | SNGE | E | 333.4 | 0.31 | 2018-04-21 14:19:24 | 2018-04-22 06:02:00 | n |
| 130564 | IIEES | SRSL | E | 294.9 | 0.38 | 2018-04-21 14:19:33 | 2018-04-22 06:02:00 | n |
| 130565 | IIEES | SRSL | N | 278.3 | 0.46 | 2018-04-21 14:19:38 | 2018-04-22 06:02:00 | n |
| 130566 | IIEES | KHMZ | N | 39.1 | 0.52 | 2018-04-21 14:20:01 | 2018-04-22 06:02:00 | n |
| 130567 | IIEES | KHMZ | E | 40.9 | 0.61 | 2018-04-21 14:20:20 | 2018-04-22 06:02:00 | n |
| 130568 | IIEES | ASAO | N | 57.7 | 0.49 | 2018-04-21 14:20:27 | 2018-04-22 06:02:00 | n |
| 130569 | IIEES | ASAO | E | 47.5 | 0.65 | 2018-04-21 14:20:27 | 2018-04-22 06:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-04-21 14:18:22 | -0.25 | y | 52.4 | 92 | |||
| IIEES | ILBA | N | Sg | E | 2018-04-21 14:18:29 | 0.04 | y | 52.4 | 92 | |||
| IIEES | SNGE | Z | Pn | E | 2018-04-21 14:18:49 | 0.65 | y | 224 | 44 | |||
| IIEES | SNGE | N | Sg | E | 2018-04-21 14:19:16 | -0.08 | y | 224 | 44 | |||
| IIEES | SRSL | Z | Pn | E | 2018-04-21 14:18:56 | -0.14 | y | 285 | 356 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-04-21 14:19:10 | 0.04 | y | 401 | 87 | |||
| IIEES | ASAO | Z | Pn | E | 2018-04-21 14:19:12 | 0.22 | y | 417 | 75 | |||
| IIEES | CHTH | Z | Pn | E | 2018-04-21 14:19:30 | -0.48 | y | 561 | 62 | |||
| IIEES | GRMI | Z | Pn | E | 2018-04-21 14:19:35 | -0.27 | y | 608 | 19 | |||
| IIEES | DAMV | Z | Pn | E | 2018-04-21 14:19:37 | 0 | y | 620 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2018-04-21 14:19:40 | 0.01 | y | 639 | 353 | |||
