Magnitude |
:3.2 |
| Date & Time (UTC) | 2021-07-10 02:40:58.1 |
| Date & Time (Local) | 1400/4/19 07:10:58.1 |

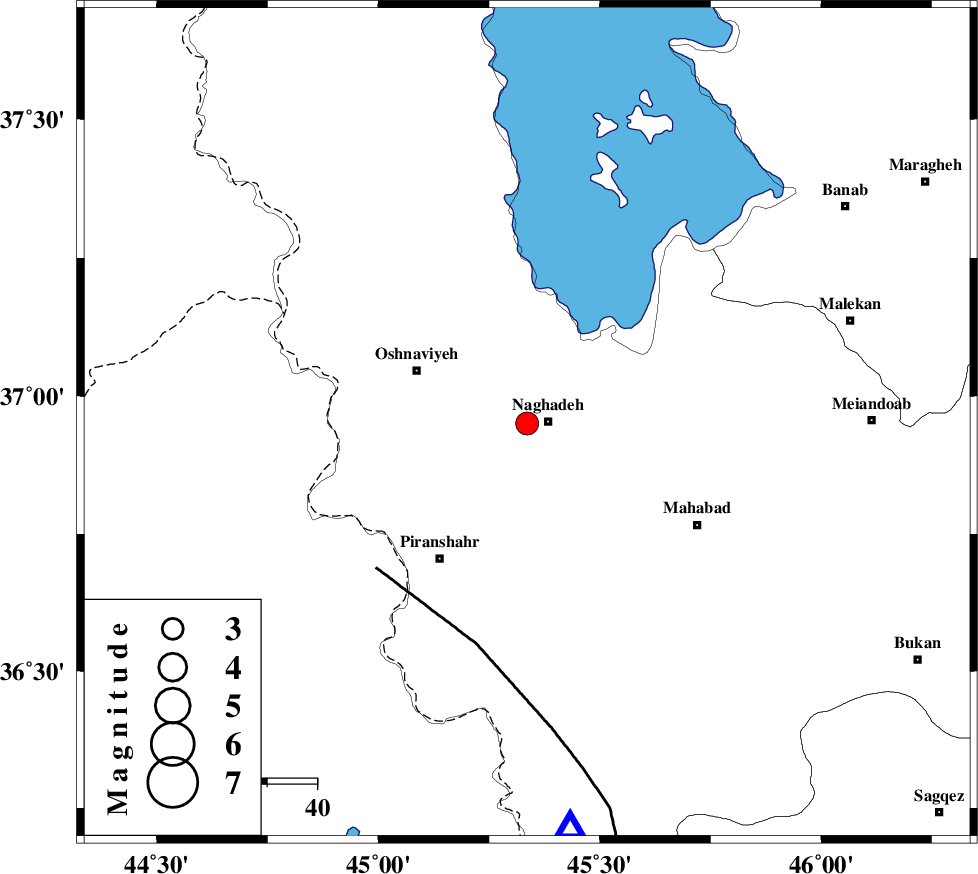

| Location | Lat:36.95 Lon: 45.336 |
| Region | Azarbaijan Gharbi Province, 4 km of Naqadeh |
Nearest Cities |
|
| 4 km of Naqadeh, Azarbaijan Gharbi Province | |
| 5 km of Mirabad, Azarbaijan Gharbi Province | |
| 12 km North West of Beygom qaleh, Azarbaijan Gharbi Province | |
| 17 km West of Mohammadyar, Azarbaijan Gharbi Province | |
| 17 km North of Pasveh, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 42 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 130 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 138 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 164019 | IIEES SC | MAHB | Z | 5 | 1 | 2021-07-10 02:41:10 | 2021-07-10 07:42:00 | n |
| 164020 | IIEES SC | MAHB | Z | 5 | 1 | 2021-07-10 02:41:04 | 2021-07-10 07:42:00 | n |
| 164021 | IIEES SC | AZR | Z | 5 | 1 | 2021-07-10 02:41:15 | 2021-07-10 07:42:00 | n |
| 164022 | IIEES SC | AZR | Z | 5 | 1 | 2021-07-10 02:41:27 | 2021-07-10 07:42:00 | n |
| 164023 | IIEES SC | MRD | Z | 0.4 | 1 | 2021-07-10 02:41:29 | 2021-07-10 07:42:00 | n |
| 164024 | IIEES SC | ILBA | Z | 0.06 | 1 | 2021-07-10 02:41:52 | 2021-07-10 07:42:00 | n |
| 164025 | IIEES SC | GZV | Z | 0.06 | 1 | 2021-07-10 02:42:01 | 2021-07-10 07:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MAHB | Z | EPg | E | 2021-07-10 02:41:04 | -1.2 | y | 0 | 39 | 122 | ||
| IIEES SC | MAHB | Z | ESg | E | 2021-07-10 02:41:10 | -0.3 | y | 0 | 39 | 122 | ||
| IIEES SC | AZR | Z | EPg | E | 2021-07-10 02:41:15 | -0.2 | y | 0 | 99 | 35 | ||
| IIEES SC | AZR | Z | ESg | E | 2021-07-10 02:41:27 | 0 | y | 0 | 99 | 35 | ||
| IIEES SC | MRD | Z | EPg | E | 2021-07-10 02:41:29 | -0.5 | y | 0 | 198 | 9 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-07-10 02:41:40 | 0.6 | y | 0 | 274 | 139 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-07-10 02:41:43 | 0.2 | y | 0 | 300 | 96 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-07-10 02:41:44 | 0.6 | y | 0 | 305 | 47 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-07-10 02:41:52 | 0 | y | 0 | 377 | 168 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-07-10 02:42:01 | 0.6 | y | 0 | 441 | 98 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-07-10 02:42:08 | -6.5 | n | 4 | 551 | 130 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-07-10 02:42:21 | -0.1 | y | 0 | 606 | 145 | ||
