Magnitude |
:3.3 |
| Date & Time (UTC) | 2021-07-31 08:03:09.9 |
| Date & Time (Local) | 1400/5/9 12:33:09.9 |

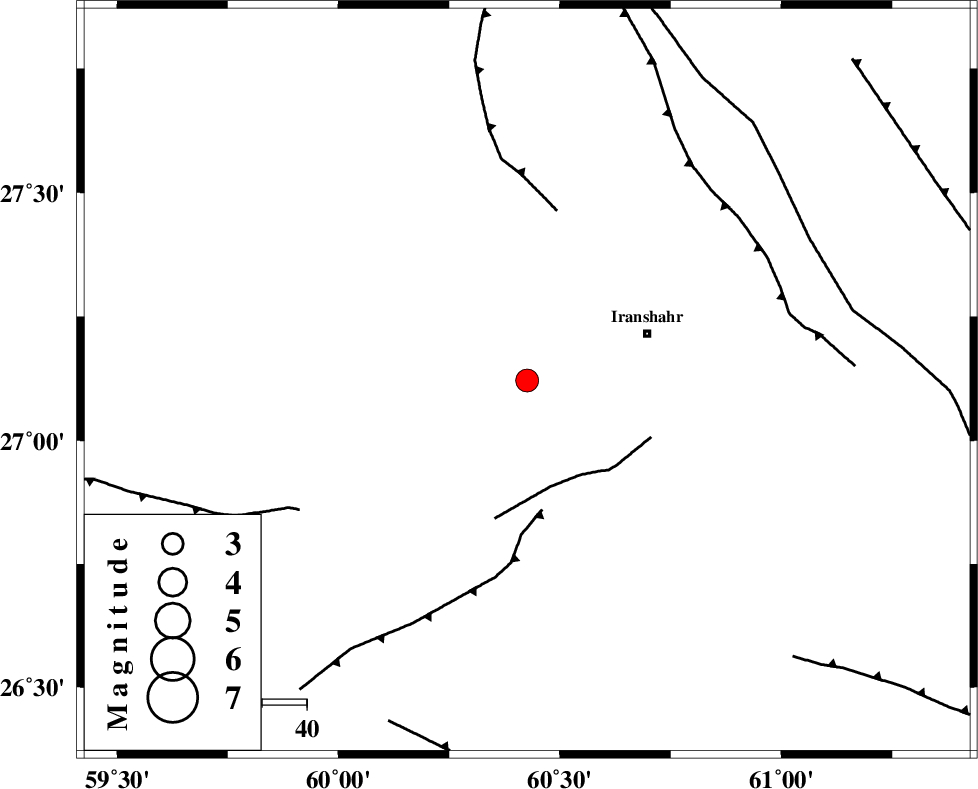

| Location | Lat:27.121 Lon: 60.426 |
| Region | Sistan va Baloochestan Province, 29 km -West of Iranshahr |
Nearest Cities |
|
| 10 km of Markazi, Sistan va Baloochestan Province | |
| 12 km of Nukchub, Sistan va Baloochestan Province | |
| 14 km East of Qasemabad, Sistan va Baloochestan Province | |
| 29 km West of Iranshahr, Sistan va Baloochestan Province | |
| 31 km West of Shahr deraz, Sistan va Baloochestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MASKUTAN_F (Length: 40 km) , Distance to epicenter: 24 km | |
| LASHAR_F (Length: 68 km) , Distance to epicenter: 29 km | |
| KASKIN_F (Length: 100 km) , Distance to epicenter: 39 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >5 km |
| Error in Longitude | 5 km |
| Error in Depth | 16.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 164502 | IIEES SC | CHBR | Z | 2 | 1 | 2021-07-31 08:03:37 | 2021-07-31 08:25:00 | n |
| 164503 | IIEES SC | CHBR | Z | 2 | 1 | 2021-07-31 08:03:56 | 2021-07-31 08:25:00 | n |
| 164504 | IIEES SC | SRVN | Z | 0.2 | 1 | 2021-07-31 08:03:42 | 2021-07-31 08:25:00 | n |
| 164505 | IIEES SC | BNDS | Z | 0.02 | 1 | 2021-07-31 08:04:10 | 2021-07-31 08:25:00 | n |
| 164506 | IIEES SC | KRBR | Z | 0.06 | 1 | 2021-07-31 08:04:17 | 2021-07-31 08:25:00 | n |
| 164507 | IIEES SC | BSRN | Z | 0.04 | 1 | 2021-07-31 08:04:25 | 2021-07-31 08:25:00 | n |
| 164508 | IIEES SC | SHRT | Z | 0.01 | 1 | 2021-07-31 08:04:46 | 2021-07-31 08:25:00 | n |
| 164509 | IIEES SC | GHIR | Z | 0.005 | 1 | 2021-07-31 08:04:49 | 2021-07-31 08:25:00 | n |
| 164510 | IIEES SC | TABS | Z | 0.02 | 1 | 2021-07-31 08:04:54 | 2021-07-31 08:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | CHBR | Z | EPg | E | 2021-07-31 08:03:37 | 0 | y | 0 | 169 | 178 | ||
| IIEES SC | CHBR | Z | ESg | E | 2021-07-31 08:03:56 | -0.4 | y | 0 | 169 | 178 | ||
| IIEES SC | SRVN | Z | EPg | E | 2021-07-31 08:03:42 | 0.2 | y | 0 | 198 | 81 | ||
| IIEES SC | JSSH | Z | EPn | E | 2021-07-31 08:03:58 | 0.3 | y | 0 | 331 | 246 | ||
| IIEES SC | BNDS | Z | EPn | E | 2021-07-31 08:04:10 | 0.6 | y | 0 | 422 | 274 | ||
| IIEES SC | KRBR | Z | EPn | E | 2021-07-31 08:04:17 | 0.5 | y | 0 | 479 | 311 | ||
| IIEES SC | BSRN | Z | EPn | E | 2021-07-31 08:04:25 | -0.5 | y | 0 | 552 | 347 | ||
| IIEES SC | SHRT | Z | EPn | E | 2021-07-31 08:04:46 | -0.8 | y | 0 | 724 | 359 | ||
| IIEES SC | GHIR | Z | EPn | E | 2021-07-31 08:04:49 | -0.3 | y | 0 | 745 | 280 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-07-31 08:04:54 | -0.8 | y | 0 | 790 | 336 | ||
