Magnitude |
:3.1 |
| Date & Time (UTC) | 2021-07-31 17:32:02.6 |
| Date & Time (Local) | 1400/5/9 22:02:02.6 |

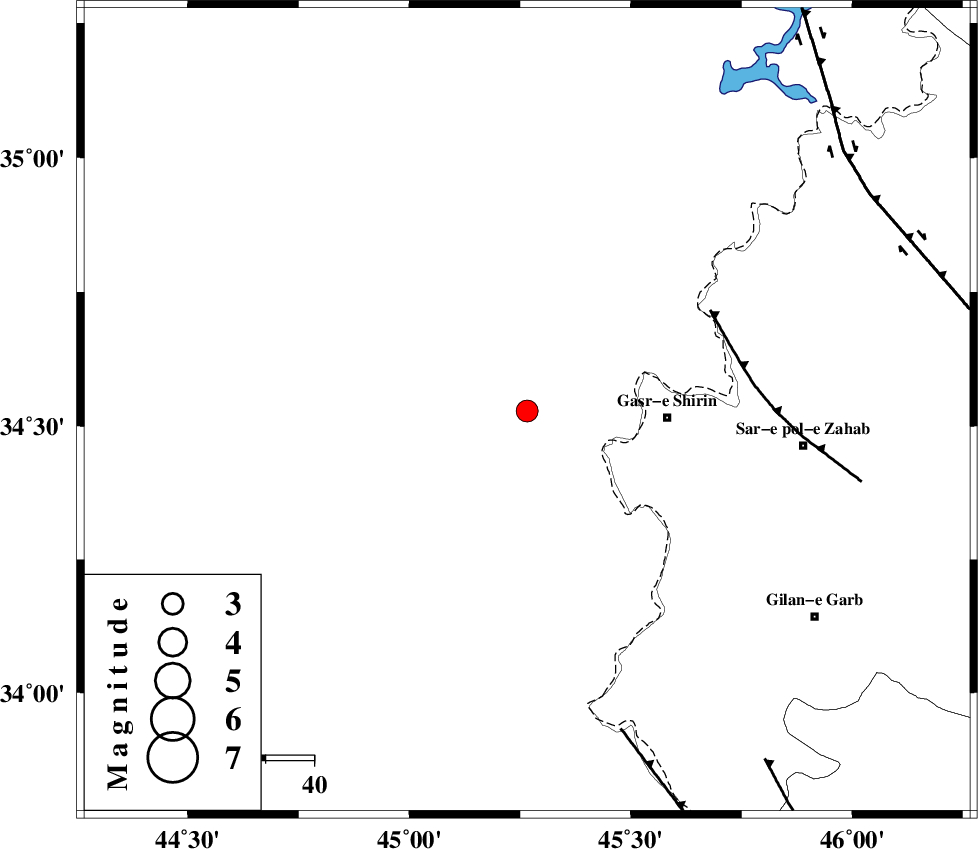

| Location | Lat:34.528 Lon: 45.266 |
| Region | Iraq, 29 km -West of Qasr-E-Shirin |
Nearest Cities |
|
| 24 km North West of Khosravi, Kermanshah Province | |
| 29 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 31 km North West of Seyyed sohrab, Kermanshah Province | |
| 37 km West of Aqabarar, Kermanshah Province | |
| 46 km West of Mirmiru, Kermanshah Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 43 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 69 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 84 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 11.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 164562 | IIEES SC | ILBA | Z | 0.6 | 1 | 2021-07-31 17:32:24 | 2021-08-03 07:32:00 | n |
| 164563 | IIEES SC | GTMR | Z | 0.1 | 1 | 2021-07-31 17:33:02 | 2021-08-03 07:32:00 | n |
| 164564 | IIEES SC | KHMZ | Z | 0.04 | 1 | 2021-07-31 17:33:05 | 2021-08-03 07:32:00 | n |
| 164565 | IIEES SC | GRMI | Z | 0.01 | 1 | 2021-07-31 17:33:16 | 2021-08-03 07:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | EPg | E | 2021-07-31 17:32:24 | 0.1 | y | 0 | 133 | 139 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-07-31 17:32:35 | 0.2 | y | 0 | 200 | 72 | ||
| IIEES SC | MAHB | Z | EPn | E | 2021-07-31 17:32:41 | -0.6 | y | 0 | 252 | 9 | ||
| IIEES SC | AZR | Z | EPn | E | 2021-07-31 17:32:55 | 0.7 | y | 0 | 355 | 10 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-07-31 17:33:02 | -0.6 | y | 0 | 424 | 123 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-07-31 17:33:05 | 0.3 | y | 0 | 442 | 101 | ||
| IIEES SC | MRD | Z | EPn | E | 2021-07-31 17:33:08 | 0.2 | y | 0 | 466 | 5 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-07-31 17:33:15 | 3.3 | n | 4 | 495 | 65 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-07-31 17:33:16 | -0.2 | y | 0 | 530 | 26 | ||
