Magnitude |
:3.2 |
| Date & Time (UTC) | 2021-07-31 14:19:31.7 |
| Date & Time (Local) | 1400/5/9 18:49:31.7 |

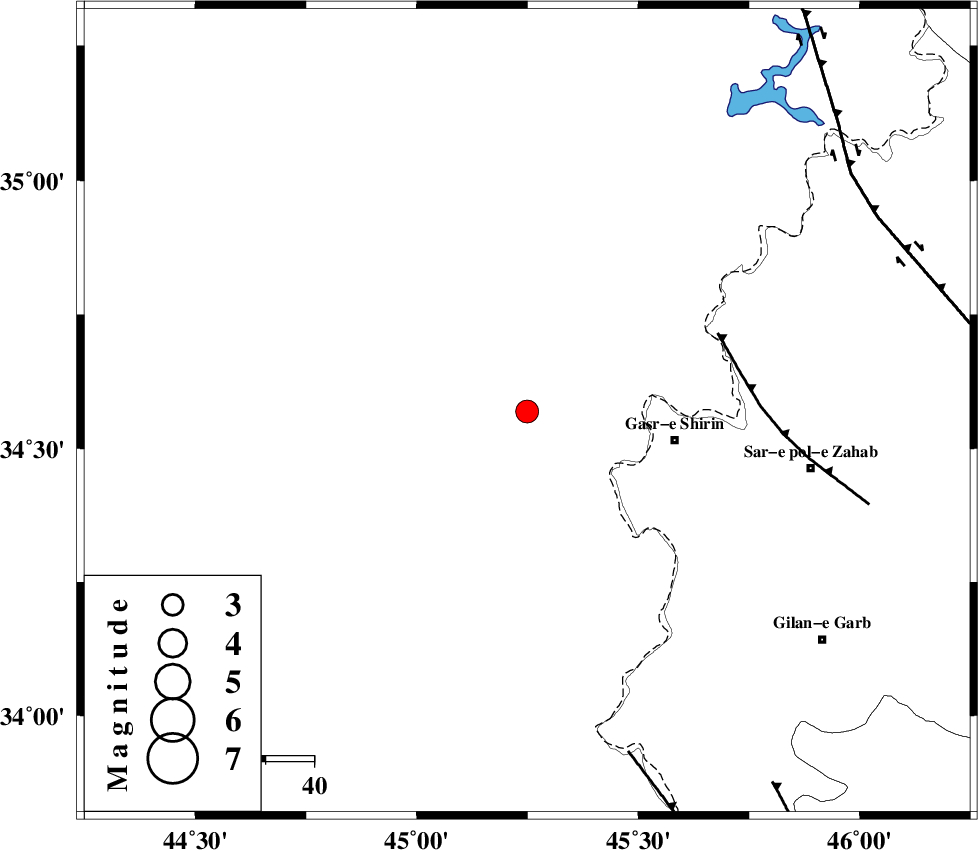

| Location | Lat:34.569 Lon: 45.249 |
| Region | Iraq, 31 km -West of Qasr-E-Shirin |
Nearest Cities |
|
| 28 km North West of Khosravi, Kermanshah Province | |
| 31 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 35 km North West of Seyyed sohrab, Kermanshah Province | |
| 38 km North West of Aqabarar, Kermanshah Province | |
| 47 km North West of Mirmiru, Kermanshah Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 43 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 74 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 83 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >3 km |
| Error in Longitude | 3 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 164581 | IIEES SC | ILBA | Z | 0.5 | 1 | 2021-07-31 14:19:54 | 2021-08-03 08:46:00 | n |
| 164582 | IIEES SC | MAHB | Z | 0.6 | 1 | 2021-07-31 14:20:09 | 2021-08-03 08:46:00 | n |
| 164583 | IIEES SC | GTMR | Z | 0.07 | 1 | 2021-07-31 14:20:31 | 2021-08-03 08:46:00 | n |
| 164584 | IIEES SC | KHMZ | Z | 0.03 | 1 | 2021-07-31 14:20:34 | 2021-08-03 08:46:00 | n |
| 164585 | IIEES SC | MRD | Z | 0.06 | 1 | 2021-07-31 14:20:36 | 2021-08-03 08:46:00 | n |
| 164586 | IIEES SC | GRMI | Z | 0.01 | 1 | 2021-07-31 14:20:44 | 2021-08-03 08:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | EPg | E | 2021-07-31 14:19:54 | 0.1 | y | 0 | 137 | 140 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-07-31 14:20:04 | 0.1 | y | 0 | 200 | 73 | ||
| IIEES SC | MAHB | Z | EPn | E | 2021-07-31 14:20:09 | -0.5 | y | 0 | 247 | 10 | ||
| IIEES SC | AZR | Z | EPn | E | 2021-07-31 14:20:23 | 0.8 | y | 0 | 351 | 11 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-07-31 14:20:27 | -0.3 | y | 0 | 389 | 53 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-07-31 14:20:31 | -0.4 | y | 0 | 428 | 123 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-07-31 14:20:34 | 0.2 | y | 0 | 444 | 102 | ||
| IIEES SC | MRD | Z | EPn | E | 2021-07-31 14:20:36 | -0.1 | y | 0 | 462 | 5 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-07-31 14:20:40 | 0.3 | y | 0 | 490 | 58 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-07-31 14:20:44 | 0.1 | y | 0 | 526 | 27 | ||
