Magnitude |
:3.4 |
| Date & Time (UTC) | 2021-07-31 14:02:43.0 |
| Date & Time (Local) | 1400/5/9 18:32:43.0 |

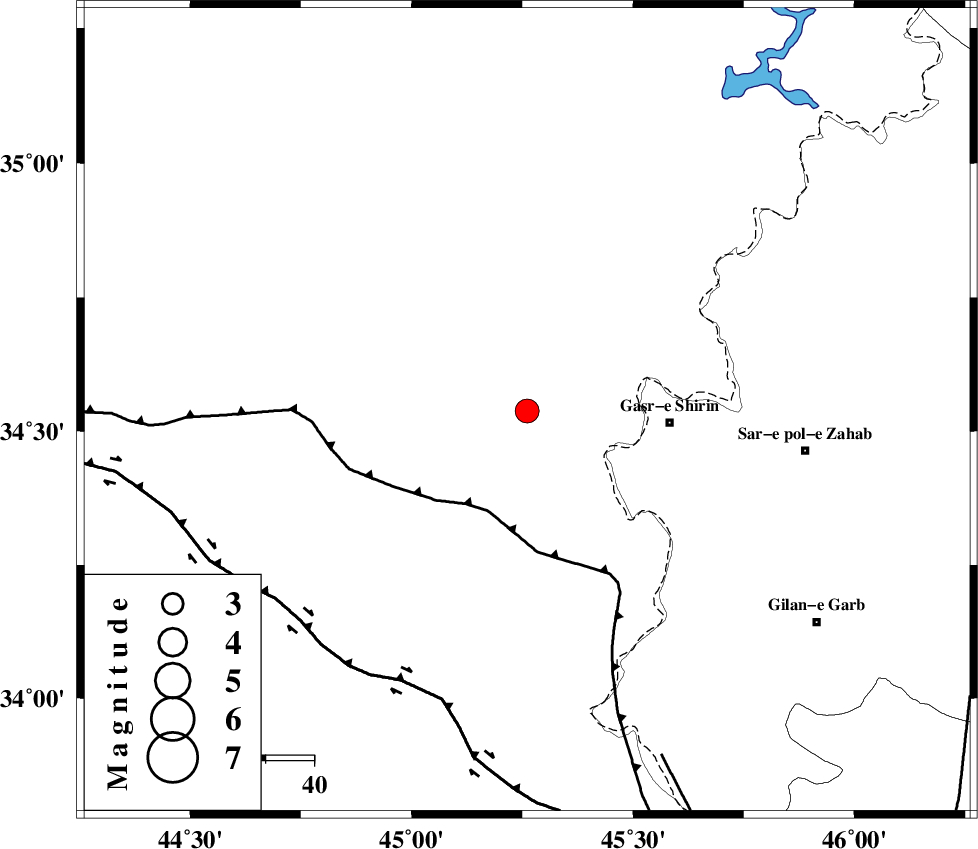

| Location | Lat:34.538 Lon: 45.261 |
| Region | Iraq, 30 km -West of Qasr-E-Shirin |
Nearest Cities |
|
| 25 km North West of Khosravi, Kermanshah Province | |
| 30 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 32 km North West of Seyyed sohrab, Kermanshah Province | |
| 37 km West of Aqabarar, Kermanshah Province | |
| 46 km West of Mirmiru, Kermanshah Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 43 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 70 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 84 km | |
| Number of Phases | 13 |
| RMS | 0.5 |
| Number of Stations | 13 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 164601 | IIEES SC | GTMR | Z | 0.09 | 1 | 2021-07-31 14:03:43 | 2021-08-03 10:28:00 | n |
| 164602 | IIEES SC | MRD | Z | 0.09 | 1 | 2021-07-31 14:03:49 | 2021-08-03 10:28:00 | n |
| 164603 | IIEES SC | GZV | Z | 0.06 | 1 | 2021-07-31 14:03:52 | 2021-08-03 10:28:00 | n |
| 164604 | IIEES SC | GRMI | Z | 0.02 | 1 | 2021-07-31 14:03:56 | 2021-08-03 10:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | EPg | E | 2021-07-31 14:03:05 | 0.3 | y | 0 | 134 | 139 | ||
| IIEES SC | ILBA | Z | ESg | E | 2021-07-31 14:03:21 | 0.3 | y | 0 | 134 | 139 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-07-31 14:03:15 | -0.3 | y | 0 | 200 | 72 | ||
| IIEES SC | SNGE | Z | ES | E | 2021-07-31 14:03:39 | 0.2 | y | 0 | 200 | 72 | ||
| IIEES SC | MAHB | Z | EPn | E | 2021-07-31 14:03:21 | -0.7 | y | 0 | 250 | 9 | ||
| IIEES SC | MAHB | Z | ES | E | 2021-07-31 14:03:51 | 0.3 | y | 0 | 250 | 9 | ||
| IIEES SC | AZR | Z | EPn | E | 2021-07-31 14:03:36 | 0.9 | y | 0 | 354 | 11 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-07-31 14:03:40 | 0.8 | y | 0 | 390 | 53 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-07-31 14:03:43 | -0.7 | y | 0 | 425 | 123 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-07-31 14:03:45 | -0.4 | y | 0 | 443 | 102 | ||
| IIEES SC | MRD | Z | EPn | E | 2021-07-31 14:03:49 | 0.4 | y | 0 | 465 | 5 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-07-31 14:03:52 | -0.4 | y | 0 | 494 | 66 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-07-31 14:03:56 | -0.7 | y | 0 | 529 | 26 | ||
