Magnitude
 :3.3
Date & Time (UTC) 2021-08-11 02:22:55.6
Date & Time (Local) 1400/5/20  06:52:55.6

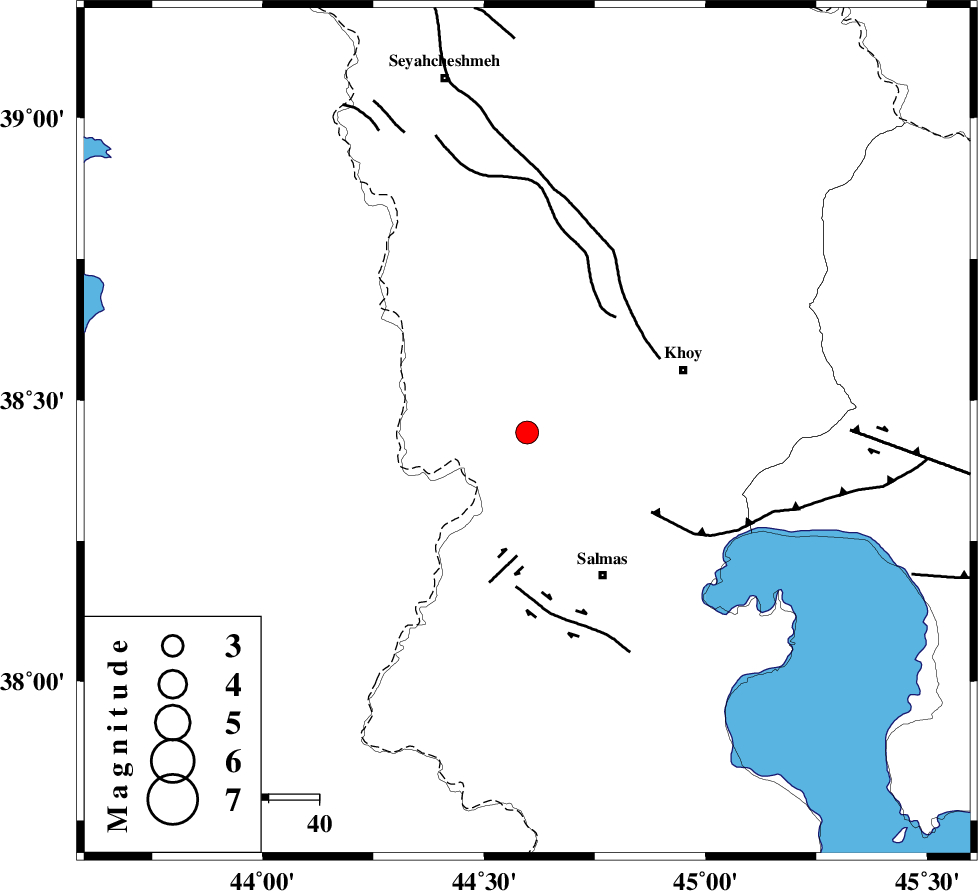

Location Lat:38.443 Lon: 44.597
Region Azarbaijan Gharbi Province, 32 km North-West of Salmas
Nearest Cities
16 km East of Gatur, Azarbaijan Gharbi Province
20 km North West of Saylab, Azarbaijan Gharbi Province
21 km South West of Beyk sofla, Azarbaijan Gharbi Province
24 km South East of Baleh sur-e sofla, Azarbaijan Gharbi Province
28 km West of Quruq, Azarbaijan Gharbi Province
Depth 12 km
Agency
Faults within 150 km:
SALMAS (Length: 20 km) , Distance to epicenter: 24 km
KHOY (Length: 100 km) , Distance to epicenter: 29 km
N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 29 km
Number of Phases 8
RMS 0.3
Number of Stations 8
Error in Latitude >6.9 km
Error in Longitude 6.9 km
Error in Depth 7.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
164782IIEES SCMAHBZ 0.412021-08-11 02:23:292021-08-15 06:19:00n
164783IIEES SCGIDEZ 0.0812021-08-11 02:24:052021-08-15 06:19:00n
164784IIEES SCILBAZ 0.0312021-08-11 02:24:122021-08-15 06:19:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMRDZ EPg E2021-08-11 02:23:12-0.1y010173
IIEES SCAZRZ EPg E2021-08-11 02:23:20-0.2y0148125
IIEES SCMAHBZ EPn E2021-08-11 02:23:290.2y0210152
IIEES SCZNJKZ EPn E2021-08-11 02:23:54-0.6y0411119
IIEES SCGIDEZ EPn E2021-08-11 02:24:050.3y0491110
IIEES SCQABGZ EPn E2021-08-11 02:24:100.4y0537124
IIEES SCGZVZ EPn E2021-08-11 02:24:120.4y0548115
IIEES SCILBAZ EPn E2021-08-11 02:24:12-0.2y0554165
