Magnitude |
:4 |
| Date & Time (UTC) | 2021-08-20 07:21:07.1 |
| Date & Time (Local) | 1400/5/29 11:51:07.1 |

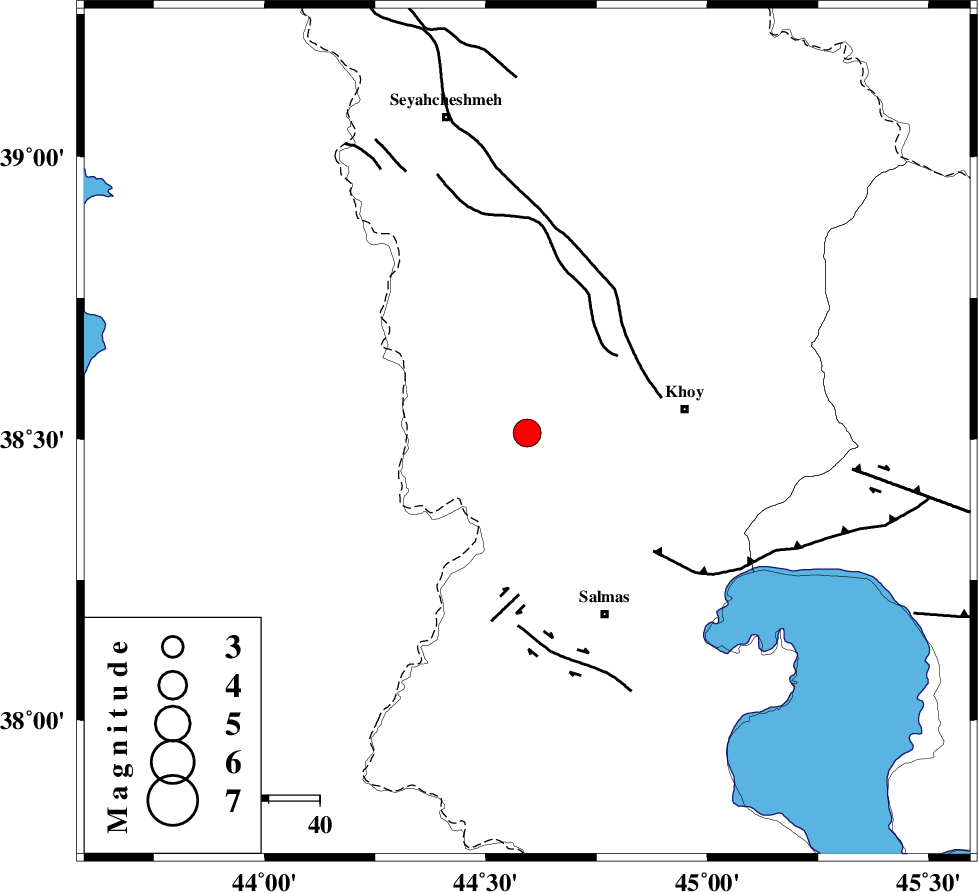

| Location | Lat:38.511 Lon: 44.593 |
| Region | Azarbaijan Gharbi Province, 31 km -West of Khoy |
Nearest Cities |
|
| 15 km North East of Gatur, Azarbaijan Gharbi Province | |
| 17 km South East of Baleh sur-e sofla, Azarbaijan Gharbi Province | |
| 18 km West of Beyk sofla, Azarbaijan Gharbi Province | |
| 26 km North West of Saylab, Azarbaijan Gharbi Province | |
| 29 km North West of Quruq, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 23 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 32 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 34 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | >5.9 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 164836 | IIEES SC | MRD | Z | 30 | 1 | 2021-08-20 07:21:23 | 2021-08-22 05:47:00 | n |
| 164837 | IIEES SC | AZR | Z | 10 | 1 | 2021-08-20 07:21:32 | 2021-08-22 05:47:00 | n |
| 164838 | IIEES SC | MAHB | Z | 1 | 1 | 2021-08-20 07:21:41 | 2021-08-22 05:47:00 | n |
| 164839 | IIEES SC | GRMI | Z | 0.6 | 1 | 2021-08-20 07:21:51 | 2021-08-22 05:47:00 | n |
| 164840 | IIEES SC | ZNJK | Z | 0.1 | 1 | 2021-08-20 07:22:07 | 2021-08-22 05:47:00 | n |
| 164841 | IIEES SC | GIDE | Z | 0.2 | 1 | 2021-08-20 07:22:16 | 2021-08-22 05:47:00 | n |
| 164842 | IIEES SC | ILBA | Z | 0.1 | 1 | 2021-08-20 07:22:24 | 2021-08-22 05:47:00 | n |
| 164843 | IIEES SC | GTMR | Z | 0.04 | 1 | 2021-08-20 07:22:52 | 2021-08-22 05:47:00 | n |
| 164844 | IIEES SC | GLO | Z | 0.1 | 1 | 2021-08-20 07:23:00 | 2021-08-22 05:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2021-08-20 07:21:23 | -0.4 | y | 0 | 99 | 77 | ||
| IIEES SC | AZR | Z | EPg | E | 2021-08-20 07:21:32 | -0.1 | y | 0 | 153 | 127 | ||
| IIEES SC | MAHB | Z | EPn | E | 2021-08-20 07:21:41 | -0.4 | y | 0 | 217 | 153 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-08-20 07:21:51 | 0.1 | y | 0 | 289 | 83 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-08-20 07:22:07 | 0.2 | y | 0 | 415 | 119 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-08-20 07:22:12 | 0.8 | y | 0 | 452 | 147 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-08-20 07:22:16 | 0.3 | y | 0 | 494 | 111 | ||
| IIEES SC | QABG | Z | EPn | E | 2021-08-20 07:22:22 | 0.1 | y | 0 | 542 | 125 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-08-20 07:22:18 | -5.5 | n | 4 | 551 | 115 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-08-20 07:22:24 | -0.5 | y | 0 | 561 | 165 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-08-20 07:22:52 | 0.2 | y | 0 | 786 | 149 | ||
| IIEES SC | GLO | Z | EPn | E | 2021-08-20 07:23:00 | 0.1 | y | 0 | 847 | 105 | ||
| IIEES SC | ABGH | Z | EPn | E | 2021-08-20 07:23:09 | -0.2 | y | 0 | 922 | 102 | ||
| IIEES SC | MRVT | Z | EPn | E | 2021-08-20 07:23:19 | -1.1 | y | 0 | 1013 | 95 | ||
| IIEES SC | SHRO | Z | EPn | E | 2021-08-20 07:23:26 | 0.8 | y | 0 | 1050 | 105 | ||
