Magnitude |
:3.5 |
| Date & Time (UTC) | 2021-09-11 00:48:07.5 |
| Date & Time (Local) | 1400/6/20 05:18:07.5 |

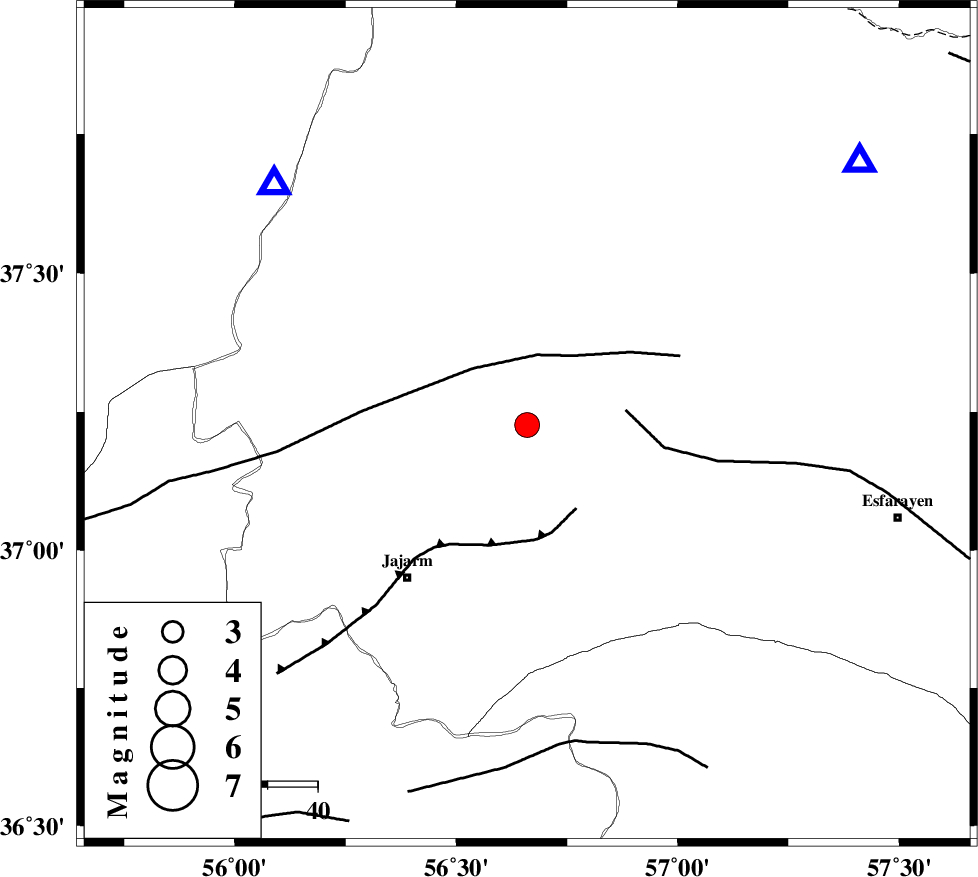

| Location | Lat:37.226 Lon: 56.66 |
| Region | Khorasan(north) Province, 39 km North-East of Jajarm |
Nearest Cities |
|
| 21 km South West of Shogan, Khorasan(north) Province | |
| 39 km North East of Jajarm, Khorasan(north) Province | |
| 42 km North East of Garmeh, Khorasan(north) Province | |
| 44 km South West of Ashkhaneh, Khorasan(north) Province | |
| 48 km North West of Cheharborj, Khorasan(north) Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 14 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 19 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 20 km | |
| Number of Phases | 15 |
| RMS | 0.3 |
| Number of Stations | 15 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 165110 | IIEES SC | ANJ | Z | 0.1 | 1 | 2021-09-11 00:48:54 | 2021-09-11 05:48:00 | n |
| 165111 | IIEES SC | TBJM | Z | 0.2 | 1 | 2021-09-11 00:49:04 | 2021-09-11 05:48:00 | n |
| 165112 | IIEES SC | TABS | Z | 0.2 | 1 | 2021-09-11 00:49:05 | 2021-09-11 05:48:00 | n |
| 165113 | IIEES SC | SHRT | Z | 0.03 | 1 | 2021-09-11 00:49:19 | 2021-09-11 05:48:00 | n |
| 165114 | IIEES SC | CHTH | Z | 0.03 | 1 | 2021-09-11 00:49:19 | 2021-09-11 05:48:00 | n |
| 165115 | IIEES SC | YZKH | Z | 0.06 | 1 | 2021-09-11 00:49:25 | 2021-09-11 05:48:00 | n |
| 165116 | IIEES SC | GHVR | Z | 0.1 | 1 | 2021-09-11 00:49:26 | 2021-09-11 05:48:00 | n |
| 165117 | IIEES SC | NASN | Z | 0.03 | 1 | 2021-09-11 00:49:30 | 2021-09-11 05:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRVT | Z | EPg | E | 2021-09-11 00:48:18 | -1.8 | n | 4 | 70 | 314 | ||
| IIEES SC | ABGH | Z | EPg | E | 2021-09-11 00:48:36 | 0 | y | 0 | 174 | 252 | ||
| IIEES SC | GLO | Z | EPn | E | 2021-09-11 00:48:48 | 0.4 | y | 0 | 265 | 252 | ||
| IIEES SC | KAGH | Z | EPn | E | 2021-09-11 00:48:52 | -0.1 | y | 0 | 295 | 96 | ||
| IIEES SC | ANJ | Z | EPn | E | 2021-09-11 00:48:54 | 0.2 | y | 0 | 314 | 232 | ||
| IIEES SC | TBJM | Z | EPn | E | 2021-09-11 00:49:04 | 0.2 | y | 0 | 395 | 123 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-09-11 00:49:05 | 0.3 | y | 0 | 399 | 174 | ||
| IIEES SC | SHRT | Z | EPn | E | 2021-09-11 00:49:19 | -0.3 | y | 0 | 516 | 140 | ||
| IIEES SC | CHTH | Z | EPn | E | 2021-09-11 00:49:19 | -0.6 | y | 0 | 516 | 254 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-09-11 00:49:25 | -0.5 | y | 0 | 569 | 199 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-09-11 00:49:26 | -0.1 | y | 0 | 576 | 238 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-09-11 00:49:28 | 0.3 | y | 0 | 582 | 261 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-09-11 00:49:30 | -0.2 | y | 0 | 604 | 216 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-09-11 00:49:41 | -2.5 | n | 4 | 713 | 265 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-09-11 00:49:50 | -3.6 | n | 4 | 790 | 283 | ||
