Magnitude |
:3.3 |
| Date & Time (UTC) | 2021-10-03 10:08:42.6 |
| Date & Time (Local) | 1400/7/11 13:38:42.6 |

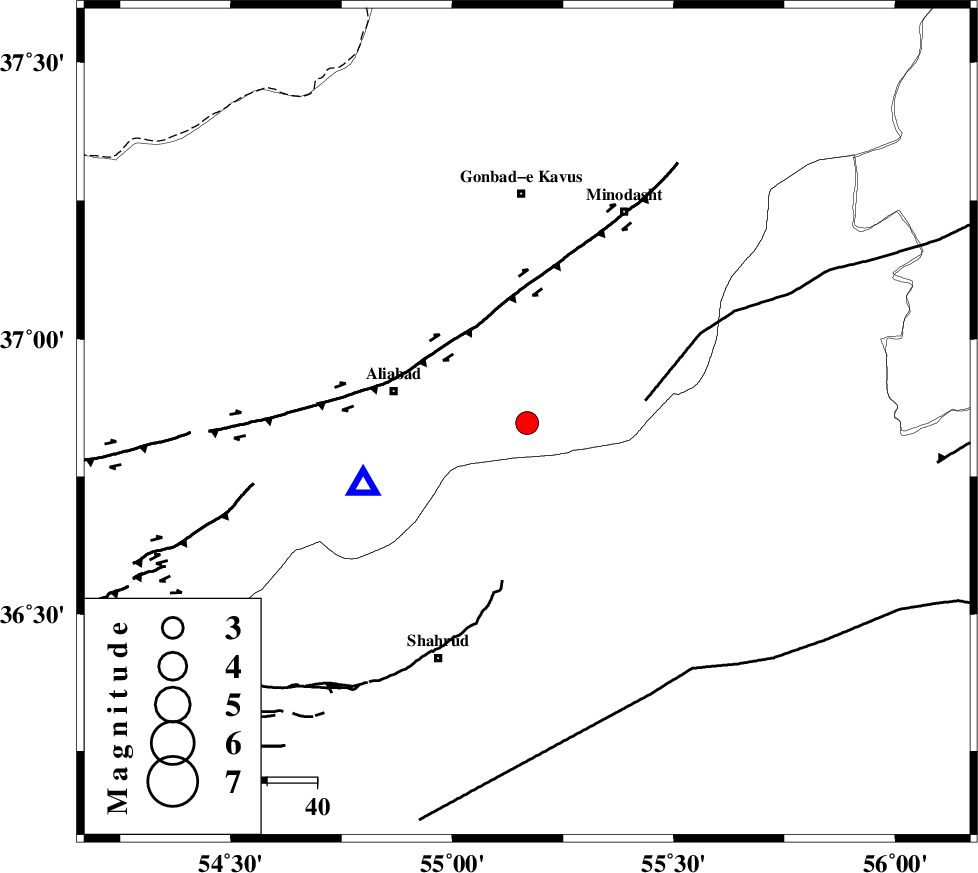

| Location | Lat:36.847 Lon: 55.169 |
| Region | Golestan Province, 19 km South of Ramian |
Nearest Cities |
|
| 19 km South of Ramian, Golestan Province | |
| 23 km South East of Deland, Golestan Province | |
| 24 km North West of Kalateh khanj, Semnan Province | |
| 24 km North of Qaleh-ye nokharqan, Semnan Province | |
| 25 km South of Khanduz, Golestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 9 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 24 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 25 km | |
| Number of Phases | 15 |
| RMS | 0.3 |
| Number of Stations | 15 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 2.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 165504 | IIEES SC | SHRO | Z | 0.6 | 1 | 2021-10-03 10:09:03 | 2021-10-03 10:50:00 | n |
| 165505 | IIEES SC | MRVT | Z | 2 | 1 | 2021-10-03 10:09:03 | 2021-10-03 10:50:00 | n |
| 165506 | IIEES SC | GLO | Z | 5 | 1 | 2021-10-03 10:09:03 | 2021-10-03 10:50:00 | n |
| 165507 | IIEES SC | CHTH | Z | 0.09 | 1 | 2021-10-03 10:09:38 | 2021-10-03 10:50:00 | n |
| 165508 | IIEES SC | TABS | Z | 0.07 | 1 | 2021-10-03 10:09:39 | 2021-10-03 10:50:00 | n |
| 165509 | IIEES SC | KAGH | Z | 0.02 | 1 | 2021-10-03 10:09:43 | 2021-10-03 10:50:00 | n |
| 165510 | IIEES SC | GHVR | Z | 0.1 | 1 | 2021-10-03 10:09:45 | 2021-10-03 10:50:00 | n |
| 165511 | IIEES SC | TBJM | Z | 0.04 | 1 | 2021-10-03 10:09:52 | 2021-10-03 10:50:00 | n |
| 165512 | IIEES SC | YZKH | Z | 0.03 | 1 | 2021-10-03 10:09:52 | 2021-10-03 10:50:00 | n |
| 165513 | IIEES SC | NASN | Z | 0.02 | 1 | 2021-10-03 10:09:52 | 2021-10-03 10:50:00 | n |
| 165514 | IIEES SC | SHRT | Z | 0.02 | 1 | 2021-10-03 10:10:02 | 2021-10-03 10:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ABGH | Z | EPg | E | 2021-10-03 10:08:48 | -0.2 | y | 0 | 35 | 249 | ||
| IIEES SC | SHRO | Z | EPg | E | 2021-10-03 10:09:03 | 0.6 | y | 0 | 120 | 141 | ||
| IIEES SC | MRVT | Z | EPg | E | 2021-10-03 10:09:03 | 0 | y | 0 | 122 | 42 | ||
| IIEES SC | GLO | Z | EPg | E | 2021-10-03 10:09:03 | -0.4 | y | 0 | 126 | 252 | ||
| IIEES SC | ANJ | Z | EPg | E | 2021-10-03 10:09:14 | 0.2 | y | 0 | 190 | 216 | ||
| IIEES SC | CHTH | Z | EPn | E | 2021-10-03 10:09:38 | 0.7 | y | 0 | 378 | 254 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-10-03 10:09:39 | -0.1 | y | 0 | 397 | 153 | ||
| IIEES SC | KAGH | Z | EPn | E | 2021-10-03 10:09:43 | -0.2 | y | 0 | 427 | 89 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-10-03 10:09:45 | 0.1 | y | 0 | 442 | 234 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-10-03 10:09:46 | -0.2 | y | 0 | 446 | 263 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-10-03 10:09:50 | 0.7 | y | 0 | 476 | 271 | ||
| IIEES SC | TBJM | Z | EPn | E | 2021-10-03 10:09:52 | 0.2 | y | 0 | 497 | 111 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-10-03 10:09:52 | 0 | y | 0 | 497 | 186 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-10-03 10:09:52 | -0.3 | y | 0 | 498 | 206 | ||
| IIEES SC | SHRT | Z | EPn | E | 2021-10-03 10:10:02 | -0.6 | y | 0 | 586 | 127 | ||
